Hikvision

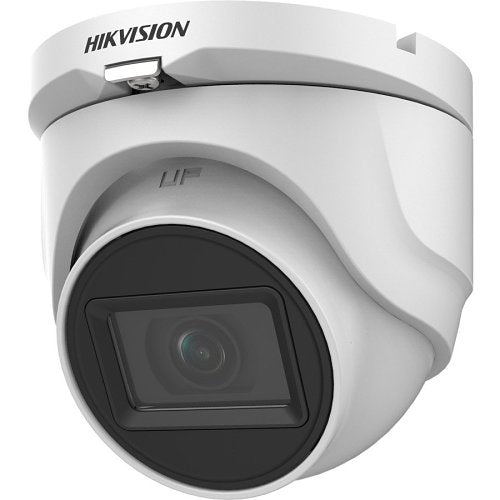

DS-2CE76H0T-ITMF(3.6mm)(C)Hikvision DS-2CE76H0T-ITMF Value Series 5MP Outdoor IR Turret Camera, 3.6mm Fixed Lens, White, (Replaces DS-2CE76H0T-ITMF(3.6MM)(C))
The Hikvision DS-2CE76H0T-ITMF Value Series 5MP Outdoor IR Turret Camera, 3.6mm Fixed Lens, White, (Replaces DS-2CE76H0T-ITMF(3.6MM)(C)) is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 5MP video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
It has a 3.6mm fixed lens.
Infrared (IR) illumination reaches up to 30 m for night-time coverage.
It runs from 12V DC.
The metal housing is rated IP67 for outdoor use, and operates from -40°C to 60°C and mounts corner, junction box, pole or wall.
The Hikvision DS-2CE76H0T-ITMF 5 MP Outdoor Turret Camera provides high definition analog output with a resolution of up to 2560 x 1944 pixels. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
EXIR 2.0 is Hikvision's proprietary IR extended range technology, which has a range of 98 feet (30 meters).
The 2.8 mm, 3.6 mm, and 6 mm fixed lens options are optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions. The camera also supports TVI, AHD, CVI, and CVBS video signals, and is water and dust-resistant (IP67 rated).
Key features
- EXIR 2.0: advanced infrared technology with 30m IR distance
- 5 MP, 2560 × 1944 resolution
- 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Smart IR, up to 30 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Back Light Compensation (BLC)
- Built-in HLC
- Day/Night
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Line: Value Series
- Product Series: H0T Series
- Product Type: Turret Cameras
- Part number: DS-2CE76H0T-ITMF(3.6mm)(C)
- Brand: Hikvision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 5MP
- Field of View: Diagonal, Horizontal, Vertical
- Lens Mount Type: M12 (S-Mount)
- Lens Type: Fixed
- Maximum Frame Rate: 30fps
- Minimum Focal Length: 3.60mm
- Night Vision: Yes
- Night Vision Type: Infrared (IR)
- Video Resolution: 1280 x 720
- Video Signal Format: NTSC, PAL
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 30.00m
Certifications
- Ingress Protection Rating: IP67
Environmental Conditions
- Maximum Operating Temperature: 60°C
- Minimum Operating Temperature: -40°C
- Operating Humidity: 90%
Exposure
- Longest Shutter Speed: 1/50000 Second
- Minimum Illumination: 0.0000lux
- Shortest Shutter Speed: 1/25 Second
Interfaces/Ports
- Network (RJ-45): No
Lens
- Focal Length: 3.6mm
- Lens Included: Yes
- Maximum Focal Length: 3.60mm
Network & Communication
- Remote Management: No
Physical Characteristics
- Colour: White
- Durability: Dust Resistant, Water Resistant
- Form Factor: Turret
- Height: 79.37mm
- Weight: 289.00g
- Width: 82.60mm
Power Description
- Input Voltage: 12V DC
- Power Source: DC Power
Product Information
- Diameter: 82.60mm
- Length: 90.00mm
- Mount Type: Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Video
- Analog Video Signal Format: AHD, CVBS (Composite Video Baseband Signal)
Miscellaneous
- Features: Back Light Compensation (BLC), Built-in HLC, Day/Night
- Indoor/Outdoor: Outdoor
