Hikvision DS-2TD2628T-3/QA

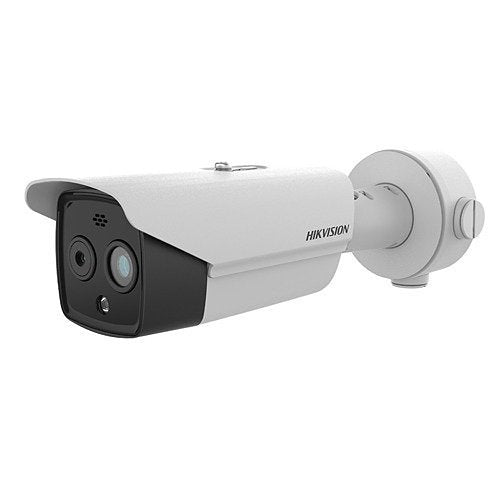

Hikvision DS-2TD2628T-3/QA HeatPro Series, IP67 4.3mm Lens, IR 30M Bi-spectrum Thermography IP Bullet Camera

Name: Hikvision DS-2TD2628T-3/QA HeatPro Series, IP67 4.3mm Lens, IR 30M Bi-spectrum Thermography IP Bullet Camera
Brand: Hikvision

Exc VAT £555.00

Inc VAT £666.00

47In stock

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

RESOLUTION4MP

LENS4.3mm

IR RANGE30.00m

PROTECTIONIP67

FORMBullet

PLACEMENTOutdoor

The Hikvision DS-2TD2628T-3/QA HeatPro Series, IP67 4.3mm Lens, IR 30M Bi-spectrum Thermography IP Bullet Camera is a genuine Hikvision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.

A CMOS sensor captures 4MP (2688 x 1520) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.

It has a 4.3mm fixed lens.

Infrared (IR) illumination reaches up to 30 m for night-time coverage, and the minimum illumination is 0.0089Lux @ (F1.6, AGC ON), 0 Lux with IR.

It connects over Ethernet, encoding video as H.264, H.265, MJPEG.

It runs from 12V DC, and it records locally to sd card.

It is rated IP67 for outdoor use, and operates from -40°C to 65°C and mounts conduit box.

Hikvision DS-2TD2628T-3/QA Bi-spectrum Thermography Network Bullet Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends temperature exception alarms for loss prevention

Key features

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
Video content analysis: vehicle/human classification
Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max. (± 2°C, ± 2%)
Smoking detection Algorithm
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee
3D Digital Noise Reduction
Audio Compression
Auto Gain Control
Cross Line Detection
HTTPS Encryption

Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.

General

Product Line: HeatPro Series
Product Series: HeatPro Bullet Series
Product Type: Network Camera
Part number: DS-2TD2628T-3/QA
Brand: Hikvision

Technical Information

Connectivity Technology: Wired
Effective Camera Resolution: 4MP
Field of View: Horizontal, Vertical
Lens Type: Fixed
Maximum Aperture: f/1
Maximum Frame Rate: 30fps
Minimum Focal Length: 4.30mm
Night Vision: Yes
Night Vision Type: Infrared (IR)
Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution: 1280 x 720
Video Signal Format: NTSC, PAL
Wide Dynamic Range: Yes

Camera

Image Sensor Type: CMOS
Night Vision Distance: 30.00m

Certifications

Ingress Protection Rating: IP67
TAA Compliant: No

Display & Graphics

Maximum Video Resolution: 2688 x 1520

Environmental Conditions

Maximum Operating Temperature: 65°C
Minimum Operating Temperature: -40°C
Operating Humidity: 95%

Exposure

Longest Shutter Speed: 1 Second
Shortest Shutter Speed: 1/100000 Second

Interfaces/Ports

Network (RJ-45): Yes

Lens

Focal Length: 4.3mm
Lens Included: Yes
Maximum Focal Length: 4.30mm
Maximum Thermal Focal Length: 3.60mm

Network & Communication

Remote Management: Yes

Physical Characteristics

Colour: White
Durability: Dustproof, Waterproof
Form Factor: Bullet
Weight: 1.55kg

Power Description

Input Voltage: 12V DC

Product Information

Mount Type: Conduit Box Mount

Storage

Recording Formats: H.264, H.265 / HEVC
Storage Type: SD Card

Video

Maximum Resolution: 2688 x 1520

Miscellaneous

Features: 3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Cross Line Detection, HTTPS Encryption, Human Detection, SD Card Local Storage, Smoke Detector, Surge Protection, White Balance
Indoor/Outdoor: Outdoor
Package Contents: Bi-spectrum Thermography Network Bullet Camera Conduit Base
