Klear

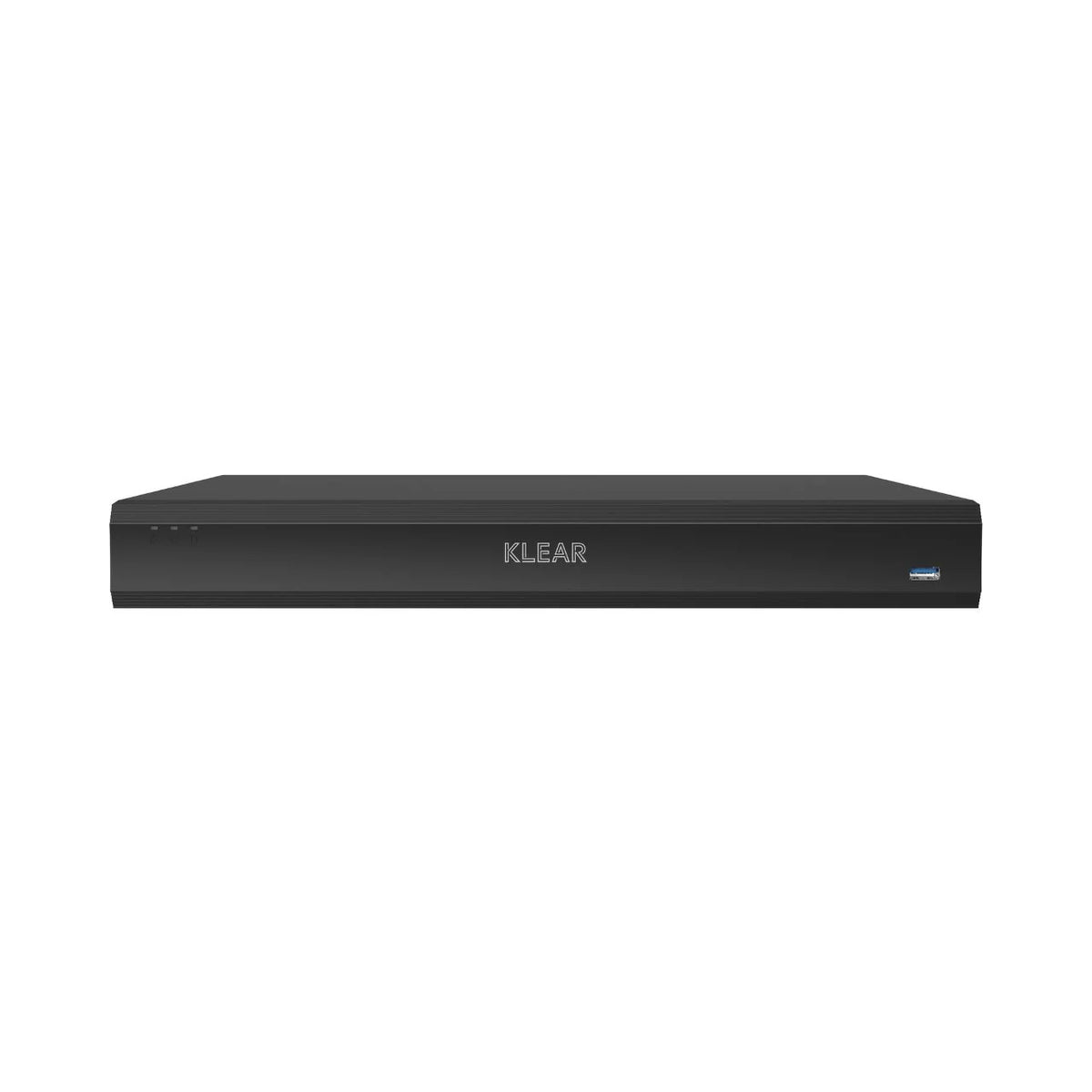

K-816 NVR PRO MAXKlear 16-Channel NVR up to 8MP, 16-PoE, 4-SATA, 2-HDMI, PRO MAX Series
Trade pricing
No account yet? Apply for a trade account
In stock
Buying for a project?
Volume pricing and stock allocation
0333 242 1314
·
sales@clisecure.com
Get a quote
**Product Overview**
The **Klear** K-816 NVR Pro Max is a high-performance 16-channel AI-powered Network Video Recorder built for professional and enterprise surveillance installations. Featuring 16 built-in PoE ports, the recorder allows compatible IP cameras to be connected and powered directly, simplifying deployment whilst reducing infrastructure costs. Supporting camera resolutions up to 32MP, dual 4K HDMI outputs, and advanced decoding performance, the K-816 NVR Pro Max is ideal for commercial buildings, warehouses, educational facilities, industrial sites, and large-scale CCTV systems.
Designed as part of **Klear**'s premium AcuPick Series, the recorder incorporates advanced AI analytics including AcuPick intelligent search, face recognition, face detection, perimeter protection, ANPR support, and Smart Motion Detection Plus (SMD+). With support for up to four hard drives, N+M Cluster technology, intelligent video metadata analysis, and high-bandwidth operation, the K-816 NVR Pro Max enables rapid event searches, improved detection accuracy, and reliable long-term recording for demanding security environments.
**Ideal For**
- Enterprise security systems
- Warehouses and logistics centres
- Manufacturing and industrial facilities
- Schools, colleges and universities
- Retail parks and commercial premises
- Multi-site surveillance deployments
- Advanced AI-powered CCTV systems
**Benefits**
AI by Camera: Face Recognition, ANPR, People Counting, Heat Map, Stereo Analysis, Video Metadata, Perimeter Protection, SMD+
- 16 built-in PoE ports simplify camera installation
- AcuPick technology enables rapid forensic video searches
- Advanced AI analytics improve incident detection accuracy
- Supports ultra-high-resolution cameras up to 32MP
- Dual 4K HDMI outputs provide flexible monitoring options
- Large storage capacity with four SATA drive bays
- ANPR support for vehicle monitoring applications
- N+M Cluster support enhances system reliability and scalability
- 16-channel IP camera support
- 16 integrated PoE ports
- AcuPick intelligent search technology
- Face detection and face recognition
- Smart Motion Detection Plus (SMD+)
- Human and vehicle classification
- Perimeter protection analytics
- ANPR support with compatible cameras
- Video metadata analysis
- People counting and heat mapping support
- H.265+/H.265/H.264+/H.264/MJPEG compression
- Dual 4K HDMI outputs
- Dual VGA outputs
- Independent video output capability
- ONVIF Profile T, S and G compatibility
- Mobile app and remote web access
- Multi-channel playback support
- USB and network backup functionality
- N+M Cluster support
- Model: K-816 NVR Pro Max
- Channels: 16 IP Channels
- PoE Ports: 16 × 10/100 Mbps PoE Ports
- Incoming Bandwidth: 384 Mbps (AI Disabled) / 200 Mbps (AI Enabled)
- Outgoing Bandwidth: 384 Mbps (AI Disabled) / 200 Mbps (AI Enabled)
- Recording Bandwidth: 384 Mbps (AI Disabled) / 200 Mbps (AI Enabled)
- Maximum Camera Resolution: Up to 32MP
- Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Decoding (AI Disabled): 2 × 32MP, 2 × 24MP, 4 × 16MP, 8 × 8MP, 12 × 5MP, 16 × 4MP
- Decoding (AI Enabled): 1 × 32MP, 1 × 24MP, 2 × 16MP, 6 × 8MP, 8 × 5MP, 12 × 4MP, 16 × 1080p
- HDMI Outputs: 2 × HDMI (Up to 4K)
- VGA Outputs: 2 × VGA (Up to 1080p)
- Storage Bays: 4 × SATA HDD
- Maximum HDD Capacity: Up to 20TB per HDD
- Maximum Storage Capacity: Up to 80TB
- Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet Port
- PoE Standard: IEEE 802.3af/at
- PoE Budget: 150W Total (25.5W per Port Max)
- Audio Input: 1 × RCA
- Audio Outputs: 2 × RCA
- Alarm Inputs: 16
- Alarm Outputs: 6
- eSATA: 1 Port
- RS-232: 1 Port
- RS-485: 1 Port
- USB Ports: 1 × USB 2.0 (Front), 2 × USB 3.0 (Rear)
- AI by Recorder: Face Detection, Face Recognition, SMD+, Perimeter Protection
- AI by Camera: Face Recognition, ANPR, People Counting, Heat Map, Stereo Analysis, Video Metadata, Perimeter Protection, SMD+
- Face Database Capacity: Up to 20 Databases with 20,000 Face Images
- AcuPick Support: Up to 16 Channels
- Mobile Access: Android & iOS
- Operating System: Embedded Linux
- Power Supply: 100–240V AC, 50/60Hz
- Operating Temperature: -10°C to +55°C
- Dimensions: 440 × 415.1 × 70 mm
- Weight: 4.82 kg (Without HDD)
- Installation: Rackmount or Desktop
