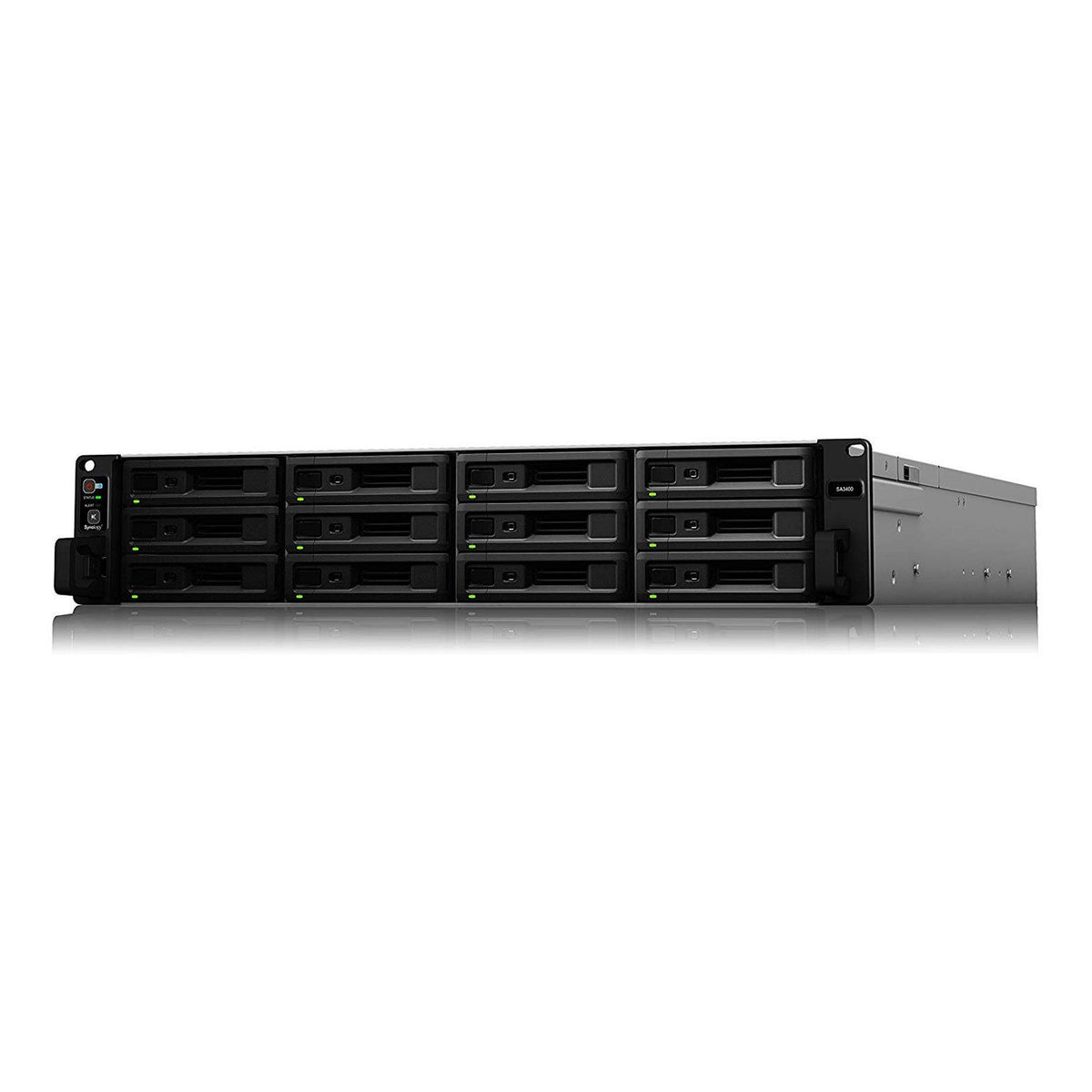

Synology 12 Bay NAS Rack Enclosure (SA3400)

• A highly scalable rackmount NAS to aptly accommodate large businesses' needs for scalability, suitable for video post-production and massive surveillance deployment
• TCO-optimized storage companion, offering various and flexible support for both SAS and SATA drives
• Scale up to 180/96 drives when connected with 7 RX2417sas/RX1217sas
• Built-in dual 10GbE and quad 1GbE ports with failover and Link Aggregation support
• Elastic expandability with dual PCIe 3.0 x8 slots for installing additional 10/25GbE network interface cards
• Effortless data protection for your physical server, virtual machines, and cloud services through Synology Active Backup Suite
• Advanced iSCSI storage supports various virtualization deployment, including VMware vSphere®, Windows Hyper-V®, Citrix XenServer®, and OpenStack Cinder®
• Backed by Synology's 5-year limited warranty
• External Connectivity:
• 1 x Expansion Port
• 6 x RJ45
• 2 x USB 3.0

• Edition: SA3400
• NAS Form Factor: 2U Rackmount
• Bays: 12 Bay
• Total Storage Included: N/A
• Max. Storage Capacity: 192 TB
• Drive Interface Support: 12 x SATA III - 6Gb/s
• Drive Form Factor Support: 12 x 2.5"/3.5"
• Internal Flash Memory: No
• DOM Module: No
• CPU Type: Intel Xeon
• CPU Model: D-1541
• CPU Cores: 8 Core
• CPU Speed: 2.1 GHz
• RAM Memory Included: 16GB (1x16GB)
• RAM Memory Type: DDR4 ECC
• Max. RAM Memory Supported: 128GB (4x32GB)
• LAN Type: 1GbE + 10GbE
• Expansion Slots: 2 x PCIe 3.0 x8
• Cooling: Fan
• Noise Level: 49.8 dB(A)
• PSU Type: Redundant
• PSU Wattage: 500 W
• Max. Power Consumption: 137.17 W
• Dimensions: 482 x 88 x 724 (WxHxD mm)
• Weight: 14.5 kg

Overview

The Synology SA3400 is a 12-bay rackmount NAS designed for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SA3400 is backed by Synology’s 5-year limited warranty.

Synology NAS Rack Enslosure (SA3400) Key Features

Highly Scalable Storage With Uncompromising Performance Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS1. Built-in 10GbE Ethernet, PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with fast data transmission, fulfilling modern enterprises' needs for excellent performance and massive storage scalability simultaneously. Small-to-hyperscale Flexibility Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment. Supercharge Network Performance Effortlessly Built-in dual 10GbE Ethernet ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards' expansion. Btrfs: Next Generation Storage Efficiency Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern, large-scale businesses. Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders. Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots. File or folder level data restoration makes data recovery fast and flexible. Automatic file self-healing detects and recovers corrupted files without user intervention. Ultimate Backup Solution SA3400 integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device. Active Backup for Business Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed. Hyper Backup Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety. Synology Drive Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery. Active Backup for Office 365 / G Suite On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology. Fully Certified Storage Virtualization Solutions Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Synology Drive A versatile solution for file management and synchronization. Synology MailPlus Secure, reliable, and private mail server solution with an intuitive and modern mail client. Surveillance Station Complete surveillance solution for recording, monitoring, and management. Active Backup Suite Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite. Synology High Availability Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications. Hyper Backup Store multiple backup versions with block-level incremental data backup and cross-version deduplication.

Part number: SA3400D · Brand: Synology
