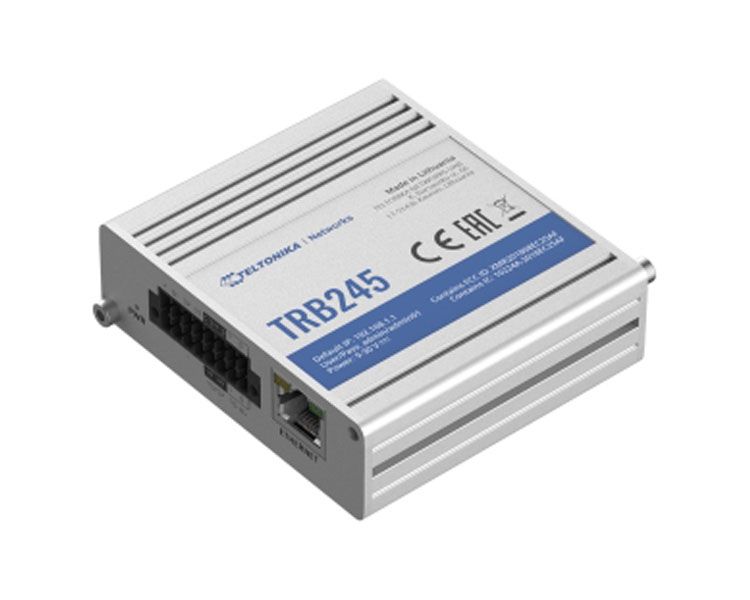

Teltonika TRB245 Industrial M2M LTE Gateway

• 4G/LTE (Cat 4), 3G, 2G connectivity
• Dual SIM w ith auto failover, backup WAN and other switching scenarios
• RS232/RS485 serial communication interfaces
• Wide range of supported power supply voltages
• Multiple Inputs and Outputs for remote monitoring and control
• Global Navigation Satellite System for location services with geofencing functionality
• QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• PPTP, L2TP: Client/Server services can run simultaneously
• I/O’s: 3 x Configurable I/O, 1 x Analog input in 16 pin terminal block

• Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• SIM Switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail
• Status: Signal strength, Connected band, SINR, RSRP, RSRQ, Bytes sent/received
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS (planned), SMS to EMAIL (planned), SMS to HTTP (planned), SMS to SMS (planned), scheduled SMS (planned), SMS autoreply (planned)
• Black/White list (planned): Operator black/white list
• Multiple PDN (planned): Possibility to use different PDNs for multiple network access and services
• Band management: Used band status display, Band lock (planned)
• APN: Auto APN
• LAN: 1 x LAN port 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) (planned)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned)
• VoIP passthrough support (planned): H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules
• DDNS (planned): Supported >25 service providers, others can be configured manually
• SSHFS (planned): Possibility to mount remote file system via SSH protocol
• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention (planned): DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN (planned): Tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• DMVPN (planned): Method of building scalable IPsec VPNs
• GRE (planned): GRE tunnel
• Modes: Console, OverIP, Modem (planned), Modbus RTU master, Modbus gateway, NTRIP client (planned)
• ID filtering: Respond to one ID in range [1;255] or any
• Allow remote access: Allow access through WAN
• Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality
• Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
• Supported baud rates: From 300 to 3000000
• Number of data bits: 7 or 8
• Number of stop bits: 1 or 2
• Parity bits: None, Even, Odd
• Flow control: None, RTS/CTS (only for RS232 interface), Xon/Xoff
• Gateway: Allows sending commands and receiving data from Modbus Master trough MQTT broker
• Supported functions: HTTP(S), MQTT, Azure MQTT (planned)
• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call (planned): Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
• TR-069 (planned): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT (planned): MQTT Broker, MQTT publisher
• SNMP (planned): SNMP (v1, v2, v3), SNMP Trap
• JSON-RPC: Management API over HTTP/HTTPS
• Modbus: Modbus TCP status/control
• RMS: Teltonika Remote Management Systems (RMS)
• Connector: 2 pins in 16 pin industrial terminal block
• Input voltage range: 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
• Power consumption: Idle: <1.2 W, Max: <5 W
• CPU: Qualcomm QCA9531, MIPS 24kc, 650 MHz
• RAM: 64 MB, DDR2
• Flash memory: 16MB SPI Flash (4 MB available for user)
• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates (planned): GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA: NMEA 0183
• NTRIP (planned): NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
• Server software (planned): Supported server software TAVL, RMS
• Mobile Network Geolocating: Location without using GPS, get approximate location based on mobile tower on RMS
• Geofencing (planned): Configurable multiple geofence zones
• Configurable I/O: 3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
• Analog input: 1 x Analog input (0 - 30 V)
• Events (planned): SMS, Email
• Output control: HTTP POST/GET, Schedule
• I/O juggler (planned): Allows to set certain I/O conditions to initiate event
• RS232: Terminal block connector: TX, RX, RTS, CTS
• RS485: Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
• Parity: None, Even, Odd
• Flow control: None, RTS/CTS (only for RS232 interface), Xon/Xof
• Cloud of Things (planned): Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx (planned): Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity (planned): Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT Hub (planned): Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
• Ethernet: 1 x RJ45 port, 10/100 Mbps
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
• SIM: 2 x SIM slots (Mini SIM &ndash; 2FF), 1.8 V/3 V, double stacked SIM tray
• Power: 2 pins in 16 pin terminal block
• Antennas: 1 x SMA connector for LTE, 1 x SMA connector for GNSS
• RS232: 4 pins in 16 pin terminal block (TX, RX, RTS, CTS)
• RS485: 4 pins in 16 pin terminal block (D+, D-, R+, R-)
• Reset: Reboot, restore to user default (planned), restore to factory defaults
• Casing material: Aluminium housing with DIN rail mounting option
• Dimensions: 74 x 83 x 25 mm (L x W x H)
• Weight: 165 g
• Mounting options: DIN rail, wall mounting (additional kits needed), flat surface placement
• Operating temperature: -40 C to 75 C
• Operating humidity: 10% to 90% non-condensing

Overview

The Teltonika TRB245 is an Industrial LTE Cat 4 gateway which packs in all essential features for any industry: fast and reliable internet connection, combination of Ethernet and serial communication, secure power connector, I/O ports, and time synchronisation services. TRB245 can be used to integrate modern and legacy industrial equipment in one solution via RS232 or RS485 interfaces. A wide range of software features like SMS control, Firewall, OpenVPN, IPSec, RMS ensures that data can be reached securely. Dual SIM functionality with auto-failover and a backup WAN ensure stable connectivity even if the primary connection is lost.

Teltonika TRB245 Technical Specifications

Part number: TRB245 · Brand: Teltonika
