Fortinet FEX-200F

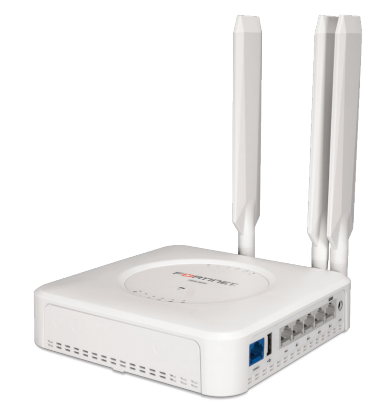

Fortinet FortiExtender 200F

List Price

Exc VAT £22.48 - £449.66

Inc VAT £26.98 - £539.59

In stock

Bundle

Quantity

Request a Quotation

Trade pricing on every quotation — response within one working day.

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

CONNECTIVITYSecured L2 tunnel to FortiGate (no internal modem)

WAN/LAN INTERFACES5x GbE RJ45, WAN/LAN configurable

FORM FACTOR/MOUNTINGIndoor — Wall Mount / Desktop

POWER12V/2A external adapter

The Fortinet FortiExtender 200F extends a FortiGate's LAN interface over a secured Layer 2 tunnel, bringing Layer2–Layer7 security policy out to branch offices without requiring a full FortiGate at every site.

Integration with FortiGate and the wider Security Fabric means the 200F's extended LAN inherits the same Web, Content and Device security controls as the core network, managed centrally from FortiManager, FortiGate or the FortiExtender Cloud dashboard.

Its five GbE RJ45 ports are individually configurable as WAN or LAN, and the unit runs from an external 12V/2A power adapter rather than requiring PoE, giving flexible deployment options at branch sites.

Key features

Secured Layer 2 tunnel extension of the FortiGate LAN for branch offices
Layer2–Layer7 security policy carried through to the extended site
5x GbE RJ45 ports, each configurable as WAN or LAN by software
Bluetooth Low Energy (10 dBm, 2.4GHz) for local setup
Powered by a 12V/2A external adapter
Managed from FortiGate, FortiManager or the FortiExtender Cloud dashboard
Optional FortiExtender Cloud licensing and FortiSASE subscription for cloud-managed branch security

Works with

Frequently asked questions

What is the FortiExtender 200F used for?

It extends a FortiGate's LAN out to a branch office over a secured Layer 2 tunnel, carrying Layer2–Layer7 security policy to the remote site without deploying a full FortiGate there.

Does the 200F have a cellular modem?

No — the 200F is a wired LAN extension unit; it connects back to a FortiGate over the network rather than over cellular. For cellular WAN extension, see the FortiExtender F- and G-series models.

What support and licensing options are available?

FortiCare Premium support (1, 3 or 5 years), FortiExtender-Cloud License and Support for the 100–200 series (1, 3 or 5 years), and a FortiSASE subscription with 2Mbps bandwidth licensing (1, 3 or 5 years) are all available for the 200F.

Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.

Hardware and System

Modem Support	N/A (wired unit, no internal modem)
Ethernet Ports	5 GbE RJ45 ports (WAN or LAN configurable)
Bluetooth	Maximum Transmit Power 10 dBm Frequency 2.4 GHz
Mounting Options	Wall Mount / Desktop
Type	Indoor

Dimensions

Height x Width x Length (inches)	1.02 x 7.09 x 3.9
Height x Width x Length (mm)	27 x 180 x 99.9
Weight	1.01 lbs (0.46 kg)

Environment

Power Required	12V/2A External Adapter
Power Consumption (Max)	6.19 W (21.12 BTU/hr) @ -5°C, 6.81 W (23.24 BTU/hr) @ 50°C
Storage Temperature	-4–158°F (-20–70°C)
Humidity	5–95%

Certifications

IC	ICES-003, RSS-247, RSS-102
CB	(IEC/EN 60950-1, IEC/EN 62368-1)
UL	(UL/CSA 60950-1, UL/CSA 62368-1)
FCC	FCC Part 15 Subpart B and ICES-003
CE	EMC 2014/30/EU (EN 55032, EN 55024, EN 55035, EN 61000-3-2/-3; EN 301 489-1/-17) RED 2014/53/EU (EN 300 328, EN 62311) LVD 2014/35/EU (EN 60950-1, EN 62368-1)

Product details

Brand	Fortinet
Part number	FEX-200F
