Fortinet FEX-311F

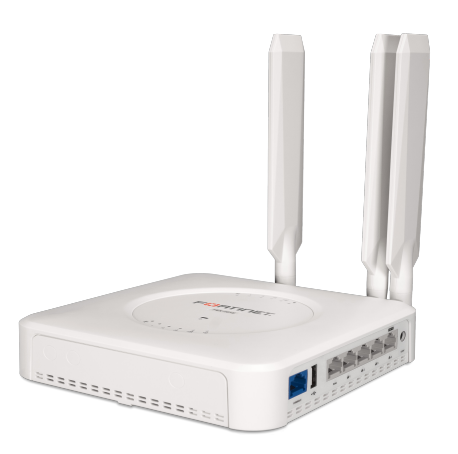

Fortinet FortiExtender 311F

List Price

Exc VAT £67.45 - £674.49

Inc VAT £80.94 - £809.39

In stock

Bundle

Quantity

Request a Quotation

Trade pricing on every quotation — response within one working day.

Buying for a project? Volume pricing and stock allocation 0333 242 1314 · sales@clisecure.com Get a quote

PDF Manufacturer datasheet Full technical specifications

CELLULAR STANDARD3G/4G LTE CAT16

SIM SLOTSDual SIM (1x internal modem)

WAN/LAN INTERFACES2x GbE WAN (SFP+RJ45) + 4x GbE LAN RJ45

FORM FACTOR/MOUNTINGIndoor — Wall Mount / Desktop

The Fortinet FortiExtender 311F is a global-carrier cellular WAN extender built around a Dual SIM CAT16 LTE modem, delivering up to 1 Gbps downlink for branch offices that need serious cellular bandwidth rather than just a backup trickle.

Integration with FortiGate appliances gives a single pane of glass for managing both the wired and wireless WAN connections and their security, cutting the total cost of ownership for branch WAN and simplifying remote-site management.

It can be located indoors or outdoors up to 100m from the FortiGate appliance or network switch, and is managed either directly from the FortiGate or via FortiExtender Cloud, which hosts management for an unlimited number of units worldwide.

Key features

Internal Dual SIM 3G/4G LTE CAT16 modem (Quectel EM160R-GL) for global carriers
Up to 1 Gbps downlink / 150 Mbps uplink over LTE
2x GbE WAN (1x SFP + 1x RJ45) and 4x GbE LAN RJ45 ports
Powered over Ethernet via 802.3at PoE (25.5W)
4x external SMA antennas (MAIN, MIMO1, MIMO2, Diversity/GPS) with GNSS bias
Bluetooth Low Energy (10 dBm, 2.4GHz) for local setup
Managed from the FortiGate directly, or hosted via FortiExtender Cloud

Works with

Frequently asked questions

What is the FortiExtender 311F used for?

It extends a FortiGate's WAN over global-carrier 3G/4G LTE, giving branch offices a high-bandwidth cellular link for primary connectivity or SD-WAN failover, managed as part of the same Security Fabric as the FortiGate.

Does it support dual SIM?

Yes, a single CAT16 modem with dual-SIM support and diversity/GPS antenna, certified across GCF, CE, PTCRB, FCC, IC and other regional carrier bodies.

What support and licensing options are available?

FortiCare Premium support (1, 3 or 5 years) and FortiExtender-Cloud License and Support (1, 3 or 5 years, covering FortiExtender 300–500 series and dual-modem models) are both available for the 311F.

Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.

Hardware and System

Modem Support	Internal (1x Modem)
Number of Antennas	4 SMA External
Power over Ethernet (PoE) Powered	IEEE 802.3at (25.5 W)
Ethernet Ports	5 GE RJ45 Ports (WAN + LAN), 1 GE SFP Port
GPS Antenna Port	Yes
Mounting Options	Wall Mount / Desktop
Type	Indoor
Bluetooth	Maximum Transmit Power 10 dBm Frequency 2.4 GHz

Dimensions

Height x Width x Length (inches)	1.83 x 7.48 x 7.83 (not including antenna length)
Height x Width x Length (mm)	46.5 x 190 x 199 (not including antenna length)
Weight	2.06 lbs (0.933 kg)

Environment

Power Consumption (Max)	16.05W
Storage Temperature	-4–158°F (-20–70°C)
Humidity	5–95%

Certifications

IC	ICES-003, RSS-247, RSS-102
CB	(IEC/EN 60950-1, IEC/EN 62368-1)
UL	(UL/CSA 60950-1, UL/CSA 62368-1)
FCC	FCC Part 15 Subpart B and ICES-003
CE	EMC 2014/30/EU (EN 55032, EN 55024, EN 55035, EN 61000-3-2/-3; EN 301 489-1/-17/-19, Draft EN 301 489-52) RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/-13, EN 62311, EN 50382, EN 50665, EN 50663, EN 62479) LVD 2014/35/EU (EN 60950-1, EN 62368-1)

Regional Compatibility

Region	Global Carriers

Internal Modem Specifications

Modem Model	Quectel EM160R-GL (1x Modem)
4G: LTE	CAT-16 FDD Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66. TDD Bands: 38, 39, 40, 41, 42, 43, 46 (LAA), 48 (CBRS)
3G: UMTS/HSPA+	Bands: B1/B2/B3/B4/B5/B6/B8/B19
3G: WCDMA	Bands: B1/B2/B3/B4/B5/B6/B8/B19
Additional Ports	MIMO1, MIMO2
Connector Type	4x SMA (MAIN, MIMO1, MIMO2, Diversity/GPS)
Module Certifications	GCF, CE, PTCRB, FCC, IC, Anatel, IFETEL, SRRC/NAL/CCC, NCC, KC, JATE/TELEC, RCM, ICASA
Diversity	Yes
MIMO	Yes
GNSS Bias	Yes

Product details

Brand	Fortinet
Part number	FEX-311F
