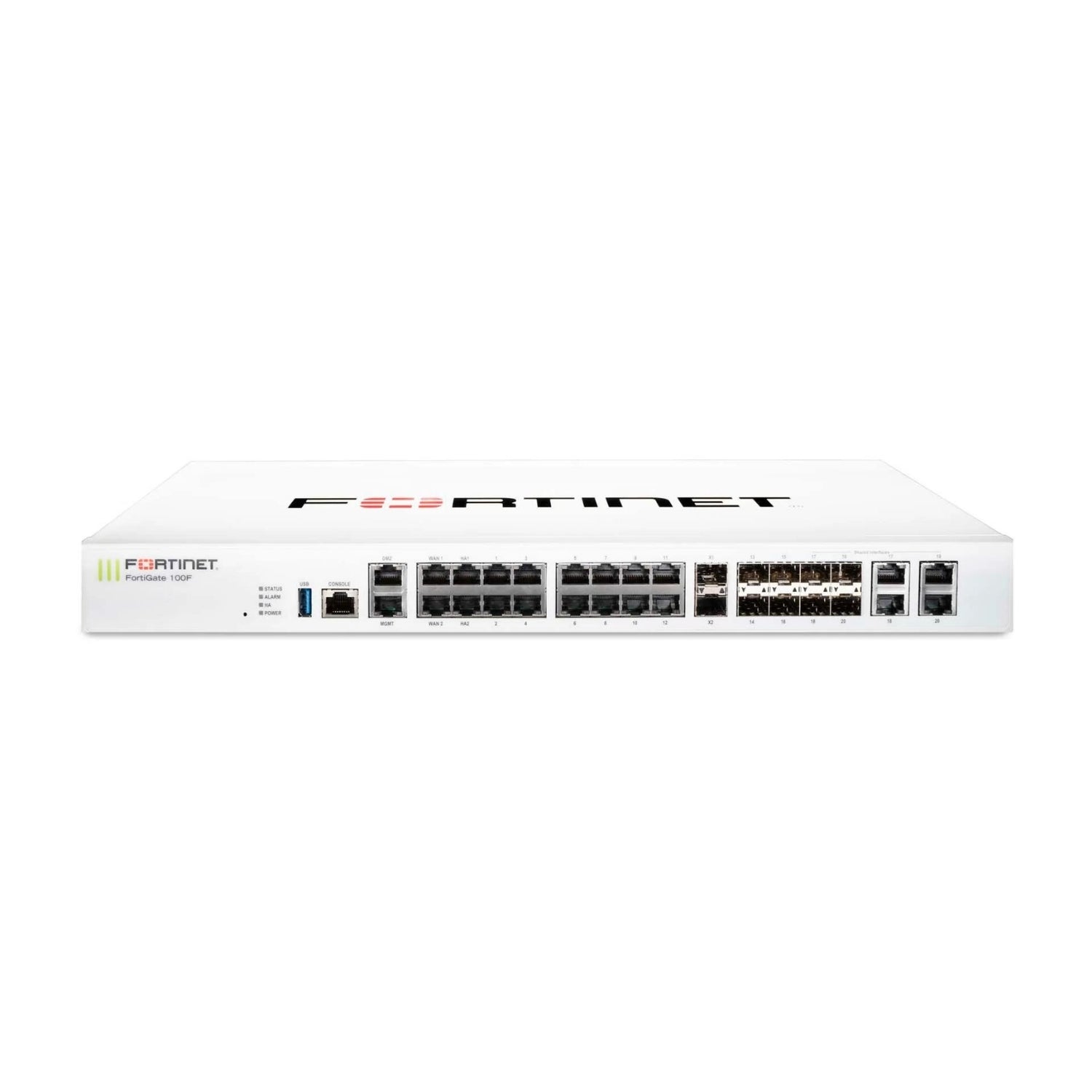

Fortinet FortiGate 100F
Authorised supply
Project support
UK delivery options
High demand this week
18 buyers viewed this product today. Need project pricing? Our team can quote bulk and renewal orders.
£2,341.72 - £10,800.00
Excl. VAT
Need multiples?
Volume discounts for installers, MSPs and resellers.
Fast UK fulfilment
Next-day and timed delivery options at checkout.
Price match help
Send us your project list for a sharper trade quote.
Genuine stock
Authorised supply with UK dispatch options.
Expert advice
Pre-sales sizing from security and IT specialists.
**Product Overview**
The FortiGate 100F series integrates next-generation firewall (NGFW) and SD-WAN functionalities for mid-sized to large enterprises with distributed locations.
Powered by a purpose-built Secure SD-WAN ASIC, it delivers superior performance for mission-critical applications along with top-tier security.
**Ideal For**
- Business network security deployments
- Branch, office and multi-site environments
- Firewall replacement or expansion projects
**Benefits**
- Can be matched with the appropriate support and security-service term
- Project compatibility can be confirmed before ordering
| FORTIGATE 100F | FORTIGATE 101F | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Ports | 12 | |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | |
| GE SFP Slots | 4 | |
| 10 GE SFP+ Slots | 2 | |
| GE RJ45 WAN Ports | 2 | |
| GE RJ45 or SFP Shared Ports * | 4 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | — | 1x 480 GB SSD |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 2.6 Gbps | |
| NGFW Throughput2, 4 | 1.6 Gbps | |
| Threat Protection Throughput2, 5 | 1 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps | |
| Firewall Latency (64 byte UDP packets) | 5 μs | |
| Firewall Throughput (Packets Per Second) | 15 Mpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Second (TCP) | 56,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 750 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 | |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps | |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 24 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |
| Maximum Number of FortiTokens | 5,000 | |
| Maximum Number of Registered FortiClients | 600 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17 x 10 | |
| Height x Width x Length (mm) | 44 x 432 x 254 | |
| Form Factor | Rack Mount, 1 RU | |
| Weight | 7.25 lbs (3.29 kg) | 7.56 lbs (3.43 kg) |
| Environment | ||
| Power Required | 100–240V AC, 60–50 Hz | |
| Maximum Current | 100V / 1A, 240V / 0.5A | |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W | 35.3 W / 39.1 W |
| Heat Dissipation | 119.77 BTU/h | 121.13 BTU/h |
| Environment | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | 40.4 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 | |
* Copper SFP module is not supported. Note: All performance values are “up to” and vary depending on system configuration.
- IPsec VPN performance test uses AES256-SHA256.
- IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
- SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
- NGFW performance is measured with Firewall, IPS and Application Control enabled.
- Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
| FORTIGATE 100F | FORTIGATE 101F | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Ports | 12 | |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | |
| GE SFP Slots | 4 | |
| 10 GE SFP+ Slots | 2 | |
| GE RJ45 WAN Ports | 2 | |
| GE RJ45 or SFP Shared Ports * | 4 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | — | 1x 480 GB SSD |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 2.6 Gbps | |
| NGFW Throughput2, 4 | 1.6 Gbps | |
| Threat Protection Throughput2, 5 | 1 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps | |
| Firewall Latency (64 byte UDP packets) | 5 μs | |
| Firewall Throughput (Packets Per Second) | 15 Mpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Second (TCP) | 56,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 750 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 | |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps | |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 24 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |
| Maximum Number of FortiTokens | 5,000 | |
| Maximum Number of Registered FortiClients | 600 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17 x 10 | |
| Height x Width x Length (mm) | 44 x 432 x 254 | |
| Form Factor | Rack Mount, 1 RU | |
| Weight | 7.25 lbs (3.29 kg) | 7.56 lbs (3.43 kg) |
| Environment | ||
| Power Required | 100–240V AC, 60–50 Hz | |
| Maximum Current | 100V / 1A, 240V / 0.5A | |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W | 35.3 W / 39.1 W |
| Heat Dissipation | 119.77 BTU/h | 121.13 BTU/h |
| Environment | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | 40.4 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 | |
* Copper SFP module is not supported. Note: All performance values are “up to” and vary depending on system configuration.
- IPsec VPN performance test uses AES256-SHA256.
- IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
- SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
- NGFW performance is measured with Firewall, IPS and Application Control enabled.
- Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
Next Generation Firewall (NGFW)
- Reduce complexity by combining threat protection security capabilities into single high-performance network security appliance
- Identify and stop threats with powerful intrusion prevention beyond port and protocol that examines the actual applications in your network traffic
- Delivers industry’s highest SSL inspection performance using industry-mandated ciphers while maximizing ROI
- Proactively blocks newly discovered sophisticated attacks in real-time with advanced threat protection
Secure SD-WAN
- Secure direct Internet access for Cloud applications for improved latency and reduce WAN cost spending
- High-performance and cost-effective threat protection capabilities
- WAN Path Controller and Link Health Monitoring for better application performance
- Security Processor powered industry’s best IPsec VPN and SSL Inspection performance
- Simplified Management and Zero-Touch deployment
Dual Power Supplies
Power supply redundancy is essential in the operation of missioncritical networks. The FortiGate 100F Series offers dual built-in non-hot swappable power supplies.
