**Product Overview**
The FortiGate 200F series delivers a scalable, secure, and application-focused SD-WAN solution combined with next-generation firewall (NGFW) capabilities.
Designed for mid-sized to large enterprises, it supports deployments at campus or enterprise branch levels.
By leveraging system-on-a-chip acceleration and industry-leading secure SD-WAN, it ensures robust cyber threat protection in an affordable, simple-to-deploy solution.
**Ideal For**
- Business network security deployments
- Branch, office and multi-site environments
- Firewall replacement or expansion projects
**Benefits**
- Can be matched with the appropriate support and security-service term
- Project compatibility can be confirmed before ordering
| FortiGate 200F | FortiGate 201E | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Ports | 16 | |
| GE RJ45 Management/HA | 1 / 1 | |
| GE SFP Slots | 8 | |
| 10GE SFP+ FortiLink Slots (default) | 2 | |
| 10GE SFP+ Slots | 2 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | - | 1x 480 GB SSD |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 5 Gbps | |
| NGFW Throughput | 3.5 Gbps | |
| Threat Protection Throughput | 3 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 27 / 27 / 11 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4.78 μs | |
| Firewall Throughput (Packets Per Second) | 16.5 Mpps | |
| Concurrent Sessions (TCP) | 3 Million | |
| New Sessions/Second (TCP) | 280,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte) | 13 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 2 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 4 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,500 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300,000 | |
| Application Control Throughput (HTTP 64K) | 13 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 20 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 64 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 256 / 128 | |
| Maximum Number of FortiTokens | 5,000 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17.01 x 13.47 | |
| Height x Width x Length (mm) | 44 x 432 x 342 | |
| Form Factor (supports EIA / non-EIA standards) | Ear Mount, 1 RU | |
| Weight | 9.92 lbs (4.5 kg) | 10.14 lbs (4.6 kg) |
| Environment | ||
| Power Required | 100–240V AC, 50-60 Hz | |
| Maximum Current | 100V / 2A, 240V / 1.2A | |
| Power Consumption (Average / Maximum) | 101.92 W / 118.90 W | 104.52 W / 121.94 W |
| Heat Dissipation | 405.70 BTU/h | 436.98 BTU/h |
| Redundant Power Supplies | Yes | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 20–90% non-condensing | |
| Noise Level | 49.9 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6 | |
| FortiGate 200F | FortiGate 201E | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Ports | 16 | |
| GE RJ45 Management/HA | 1 / 1 | |
| GE SFP Slots | 8 | |
| 10GE SFP+ FortiLink Slots (default) | 2 | |
| 10GE SFP+ Slots | 2 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | - | 1x 480 GB SSD |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 5 Gbps | |
| NGFW Throughput | 3.5 Gbps | |
| Threat Protection Throughput | 3 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 27 / 27 / 11 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4.78 μs | |
| Firewall Throughput (Packets Per Second) | 16.5 Mpps | |
| Concurrent Sessions (TCP) | 3 Million | |
| New Sessions/Second (TCP) | 280,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte) | 13 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 2 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 4 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,500 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 300,000 | |
| Application Control Throughput (HTTP 64K) | 13 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 20 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 64 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 256 / 128 | |
| Maximum Number of FortiTokens | 5,000 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17.01 x 13.47 | |
| Height x Width x Length (mm) | 44 x 432 x 342 | |
| Form Factor (supports EIA / non-EIA standards) | Ear Mount, 1 RU | |
| Weight | 9.92 lbs (4.5 kg) | 10.14 lbs (4.6 kg) |
| Environment | ||
| Power Required | 100–240V AC, 50-60 Hz | |
| Maximum Current | 100V / 2A, 240V / 1.2A | |
| Power Consumption (Average / Maximum) | 101.92 W / 118.90 W | 104.52 W / 121.94 W |
| Heat Dissipation | 405.70 BTU/h | 436.98 BTU/h |
| Redundant Power Supplies | Yes | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 20–90% non-condensing | |
| Noise Level | 49.9 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6 | |

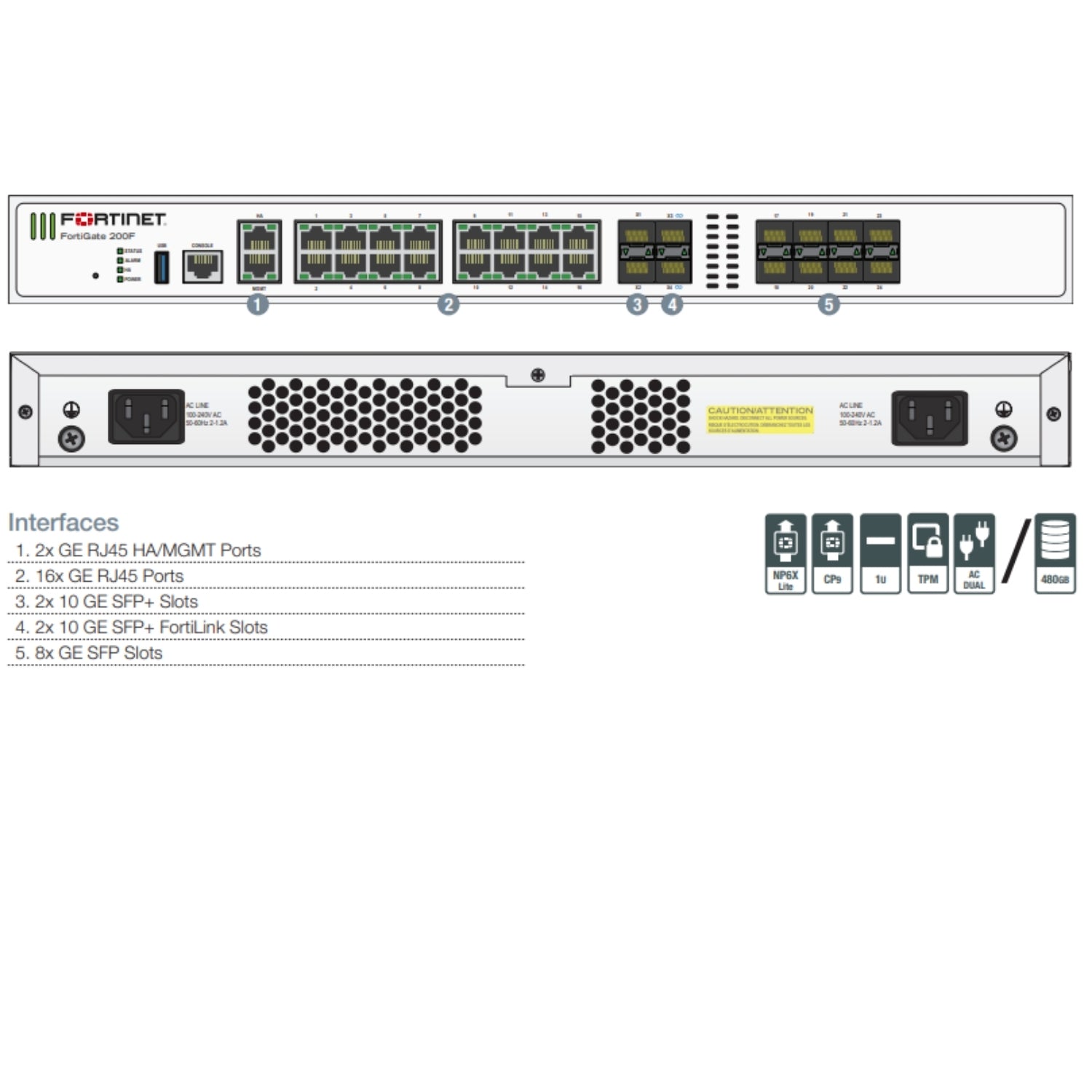

Hardware:
Extends Security to Access Layer with FortiLink Ports
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
Content Processor
Fortinet’s new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:
- Enhanced IPS performance with unique capability of full signature matching at ASIC
- SSL Inspection capabilities based on the latest industry mandated cipher suites
- Encryption and decryption offloading
Network Processor
The SPU NP6XLite network processor enhances firewall and VPN functions delivering:
- Optimized firewall processing for all types of IP payloads and Ethernet frames
- Hardware-accelerated VPN encryption
- Anomaly-based intrusion prevention, checksum offload, and packet defragmentation
- Traffic shaping and priority queuing
Trusted Platform Module (TPM)
The FortiGate 200F Series features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.
