Fortinet

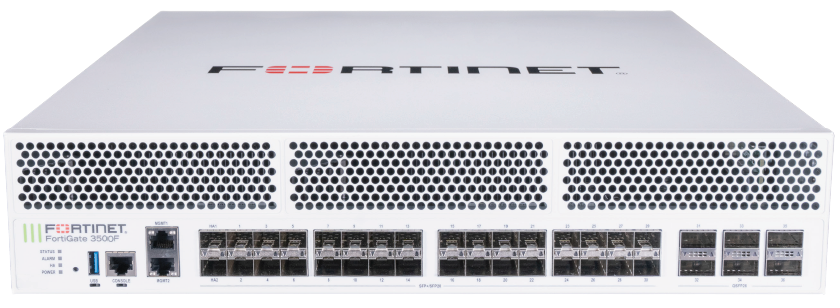

FG-3500FFortinet FortiGate 3500F
List PriceThe FortiGate 3500F series delivers high-performance next-generation firewall (NGFW) capabilities for large enterprises and service providers. Multiple high-speed interfaces, high port density and high throughput make it suited to the enterprise edge, the hybrid data-centre core, and internal network segmentation, backed by industry-leading IPS, SSL inspection and advanced threat protection.
Fortinet's SPU NP6 network processor works inline with FortiOS functions to accelerate traffic processing, while the ninth-generation SPU CP9 content processor works outside the direct flow of traffic to accelerate content inspection.
An optional perpetual Hyperscale Firewall License unlocks further performance by hardware-accelerating CGNAT features — including hardware session setup, session logging and NAT — using Fortinet's latest SPU NP7 processor.
Key features
- SPU NP7 network processor and CP9 content processor hardware acceleration
- 6x 100GE QSFP28/40GE QSFP+ slots and 32x 25GE SFP28/10GE SFP+/GE SFP slots
- Trusted Platform Module (TPM) built in
- Two AC power supplies, hot-swappable
- Optional perpetual Hyperscale Firewall License for hardware-accelerated CGNAT
- Up to 500 virtual domains (VDOMs)
- Supports up to 300 FortiSwitches and 4,096 FortiAPs
Works with
Frequently asked questions
Hardware-only or a bundle?
The hardware-only SKU (FG-3500F) is the appliance alone. The bundle SKUs add 1, 3 or 5 years of FortiCare Premium support plus either FortiGuard Unified Threat Protection (UTP) or Enterprise Protection, which most deployments need for ongoing IPS, antivirus and web/URL filtering updates.
What does the Hyperscale Firewall License add?
It's an optional perpetual licence for the FG-3500F/3501F series that unlocks hardware-accelerated CGNAT on the SPU NP7 processor, covering hardware session setup, firewall session logging and NAT — useful for service-provider and large-scale NAT deployments.
How do I size the right model?
Check the enterprise-mix throughput figures (72 Gbps IPS, 65 Gbps NGFW, 63 Gbps Threat Protection) against expected inspected traffic, and the capacity figures — up to 348 million concurrent TCP sessions and 200,000 firewall policies — against session counts and policy complexity.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Interfaces and Modules
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 6 |
|---|---|
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 32 |
| 10GE/ GE RJ45 Management Ports | 2 |
| USB Ports (Client / Server) | 1 / 1 |
| Console Port | 1 |
| Onboard Storage | None |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 72 Gbps |
|---|---|
| NGFW Throughput | 65 Gbps |
| Threat Protection Throughput | 63 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 595 / 590 / 420 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million |
| New Sessions/Second (TCP) | 1 Million / 5 Million |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 55 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 60,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 15 Million |
| Application Control Throughput (HTTP 64K) | 135 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 40,000 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
|---|---|
| Height x Width x Length (mm) | 89 x 443 x 556 |
| Weight | 43.8 lbs (19.9 kg) |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 760 W / 1174 W |
| AC Current (Maximum) | 12A@120V, 9A@240V |
| Heat Dissipation | 4,006 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes, Hot Swappable |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Noise Level | 53.5 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-3500F |
Interfaces and Modules
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 6 |
|---|---|
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 32 |
| 10GE/ GE RJ45 Management Ports | 2 |
| USB Ports (Client / Server) | 1 / 1 |
| Console Port | 1 |
| Onboard Storage | None |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 72 Gbps |
|---|---|
| NGFW Throughput | 65 Gbps |
| Threat Protection Throughput | 63 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 595 / 590 / 420 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million |
| New Sessions/Second (TCP) | 1 Million / 5 Million |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 55 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 60,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 15 Million |
| Application Control Throughput (HTTP 64K) | 135 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 40,000 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
|---|---|
| Height x Width x Length (mm) | 89 x 443 x 556 |
| Weight | 43.8 lbs (19.9 kg) |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 760 W / 1174 W |
| AC Current (Maximum) | 12A@120V, 9A@240V |
| Heat Dissipation | 4,006 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes, Hot Swappable |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Noise Level | 53.5 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-3500F |
