Fortinet

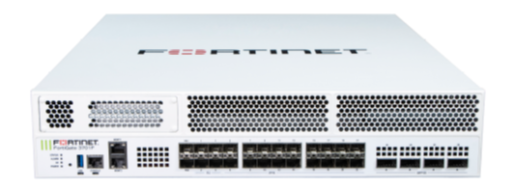

FG-3701FFortinet FortiGate 3701F
List PriceThe FortiGate 3700F series delivers high-performance next-generation firewall (NGFW) capabilities for large enterprises and service providers. Multiple high-speed interfaces, high port density and high throughput make it suited to the enterprise edge, the hybrid data-centre core, and internal network segmentation, backed by industry-leading IPS, SSL inspection and advanced threat protection.
Fortinet's SPU NP6 network processor works inline with FortiOS functions to accelerate traffic processing, while the ninth-generation SPU CP9 content processor works outside the direct flow of traffic to accelerate content inspection.
A dedicated cryptographic module hardens the appliance itself, generating, storing and authenticating cryptographic keys in hardware to protect against malicious software and phishing attacks. The FG-3701F additionally carries 2x 2TB onboard SSD storage.
Key features
- SPU NP7 network processor and CP9 content processor hardware acceleration
- 4x 400GE QSFP-DD/200GE QSFP56/100GE QSFP28 ports and 18x 50GE SFP56/25GE SFP28/10GE SFP+ ports
- 2x 2TB onboard SSD storage
- Trusted Platform Module (TPM) built in
- Two AC power supplies, hot-swappable
- Up to 500 virtual domains (VDOMs)
- Supports up to 300 FortiSwitches and 4,096 FortiAPs
Works with
Frequently asked questions
Hardware-only or a bundle?
The hardware-only SKU (FG-3701F) is the appliance alone. The bundle SKUs add 1, 3 or 5 years of FortiCare Premium support plus either FortiGuard Unified Threat Protection (UTP) or Enterprise Protection, which most deployments need for ongoing IPS, antivirus and web/URL filtering updates.
3701F vs 3700F — what's different?
The FG-3701F adds 2x 2TB onboard SSD storage that the base FG-3700F does not have. The 3701F weighs 48.7 lbs (22.1 kg) and draws 600 W / 1150 W (average/maximum); the 3700F weighs 47.1 lbs (21.4 kg) and draws 590 W / 1140 W. IPS, NGFW and Threat Protection throughput are the same across both models.
How do I size the right model?
Check the enterprise-mix throughput figures (86 Gbps IPS, 80 Gbps NGFW, 75 Gbps Threat Protection) against expected inspected traffic, and the capacity figures — 140 million concurrent TCP sessions and 200,000 firewall policies — against session counts and policy complexity.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Interfaces and Modules
| Hardware Accelerated 400GE QSFP-DD/ 200GE QSFP56/ 100GE QSFP28/ 40GE QSFP+ Ports | 4 |
|---|---|
| Hardware Accelerated 50 GE SFP56/ 25 GE SFP28/ 10 GE SFP+ Ports | 18 |
| Hardware Accelerated 25 GE SFP28/ 10 GE SFP+/ GE SFP ULL Ports | 4 |
| Hardware Accelerated 50 GE SFP56/ 25 GE SFP28/ 10 GE SFP+ HA1/HA2 Ports | 2 |
| 10GE/ GE RJ45 Management Ports | 2 |
| USB Ports (Client / Server) | 1 / 1 |
| Console Port | 1 |
| Onboard Storage | 2x 2TB SSD |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 86 Gbps |
|---|---|
| NGFW Throughput | 80 Gbps |
| Threat Protection Throughput | 75 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 589 / 589 / 420 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 589 / 589 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 3.56 μs / 1.45 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million |
| New Sessions/Second (TCP) | 930,000 |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 160 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 55 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 57,000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 15 Million |
| Application Control Throughput (HTTP 64K) | 190 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 3.5 x 17.44 x 23.9 |
|---|---|
| Height x Width x Length (mm) | 88.9 x 443 x 607.1 |
| Weight | 48.7 lbs (22.1 kg) |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240 VAC, 60/50 Hz |
| Power Consumption (Average / Maximum) | 600 W / 1150 W |
| AC Current (Maximum) | 12A@100V, 9A@240V |
| Heat Dissipation | 3921 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes, Hot Swappable |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 5% to 90% non-condensing |
| Noise Level | 70.4 dBA |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-3701F |
