Fortinet

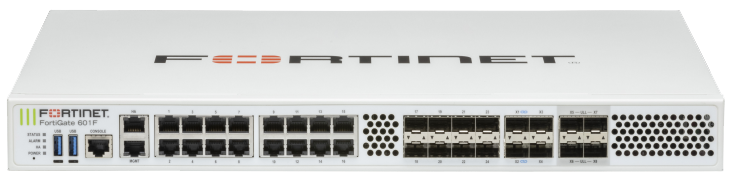

FG-600FFortinet FortiGate 600F
List PriceThe FortiGate 600F series is a secure SD-WAN and next-generation firewall platform built for mid-sized to large enterprises deployed at the campus or branch level, combining application-centric routing with security-driven networking.
Performance is delivered by Fortinet's SPU NP7 network processor, which works inline with FortiOS to accelerate firewall and networking functions, and the ninth-generation SPU CP9 content processor, which works outside the traffic flow to accelerate content inspection.
The platform delivers 139 Gbps of firewall throughput, 14 Gbps of IPS throughput and 10.5 Gbps of Threat Protection throughput on an enterprise traffic mix, over 18x GE RJ45 ports, 8x GE SFP slots, 4x 10GE SFP+ slots and 4x 25GE SFP28 slots.
Key features
- SPU NP7 network processor and CP9 content processor hardware acceleration
- Secure SD-WAN with application-centric routing
- 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+ and 4x 25GE SFP28 ports
- Hot-swappable redundant power supplies
- Up to 10 virtual domains (VDOMs)
- Supports up to 96 FortiSwitches and 1,024 FortiAPs
Works with
Frequently asked questions
Hardware only or a bundle?
The hardware-only SKU is the appliance alone. The bundle SKUs add 1, 3 or 5 years of FortiCare Premium support plus either the FortiGuard Unified Threat Protection (UTP) or Enterprise Protection subscription, which most deployments need for ongoing IPS, antivirus and web/URL filtering updates.
600F vs 601F — what's different?
The 600F has no onboard SSD storage; the 601F adds 2x 240GB onboard SSD storage. The 600F weighs 15.6 lbs (7.3 kg) with average/maximum power consumption of 169 W / 255 W; the 601F weighs 16.2 lbs (7.5 kg) and draws 174 W / 260 W. Firewall, IPS, NGFW and Threat Protection throughput are the same across both models.
How do I size the right model?
Check the enterprise-mix throughput figures (139 Gbps firewall, 14 Gbps IPS, 10.5 Gbps Threat Protection) against your expected inspected traffic, and the capacity figures — 8 million concurrent TCP sessions, 550,000 new sessions per second and 10,000 firewall policies — against session counts and policy complexity.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Interfaces and Modules
| Hardware Accelerated GE RJ45 Interfaces | 16 |
|---|---|
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ Slots | 4 |
| Hardware Accelerated 25GE SFP28/ 10GE SFP+/ GE SFP Ultra Low Latency Slots | 4 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | NIL |
| Included Transceivers | 2x SFP (SX 1 GE) |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 14 Gbps |
|---|---|
| NGFW Throughput | 11.5 Gbps |
| Threat Protection Throughput | 10.5 Gbps |
System Performance and Capacity
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 139 / 137.5 / 70 Gbps |
|---|---|
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 139 / 137.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) | 4.12 μs |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 550,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 4.3 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 7,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 840,000 |
| Application Control Throughput (HTTP 64K) | 32 Gbps |
| CAPWAP Throughput (HTTP 64K) | 64.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1,024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions and Power
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
|---|---|
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 15.6 lbs (7.3 kg) |
| Form Factor | Rack Mount, 1 RU |
| Power Consumption (Average / Maximum) | 169 W / 255 W |
| Power Source | 100–240V 60–50Hz |
| Current (Maximum) | 6A @ 100V |
| Heat Dissipation | 871 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 5–90% non-condensing |
| Noise Level | 55 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-600F |
