FG-60FFortinet FortiGate 60F

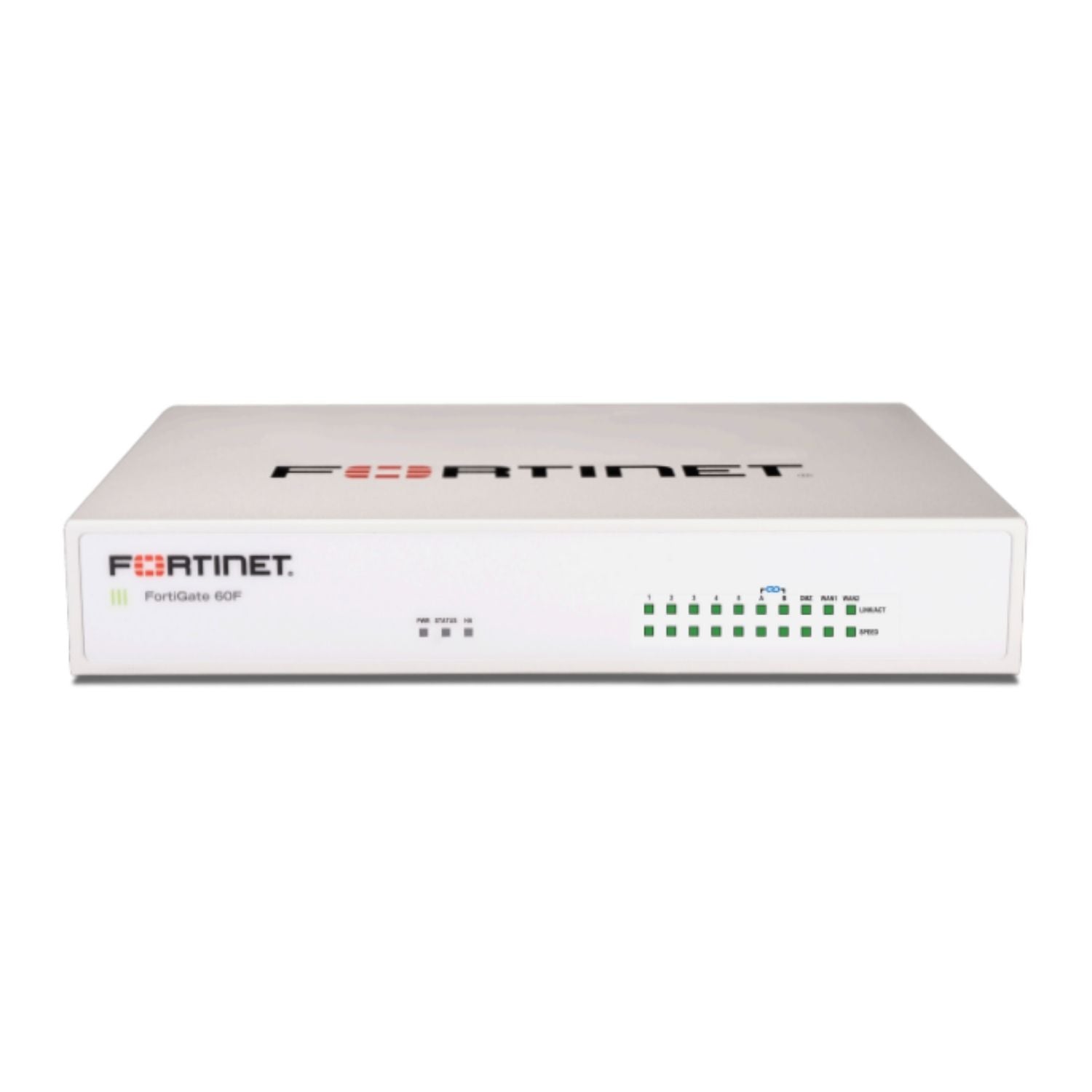

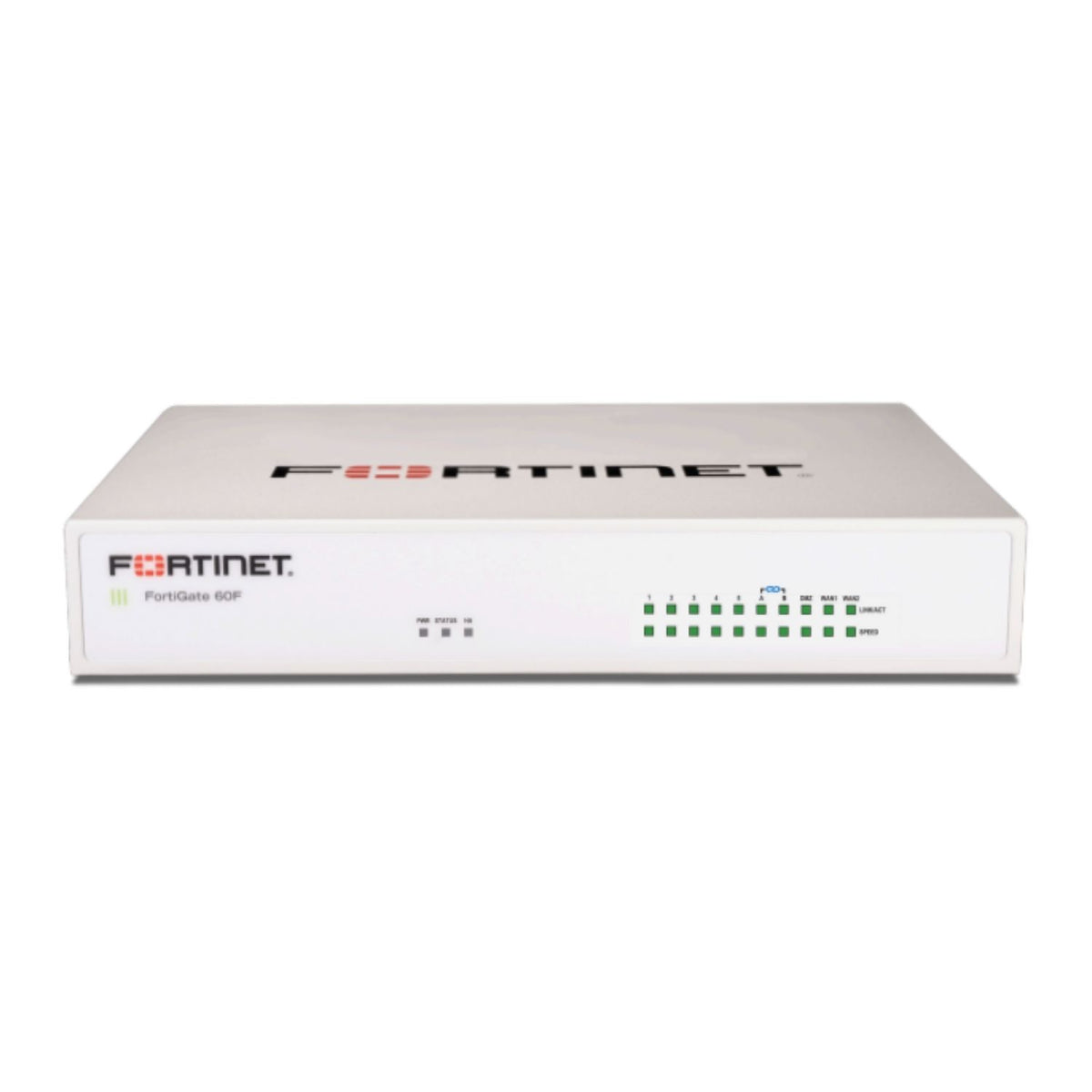

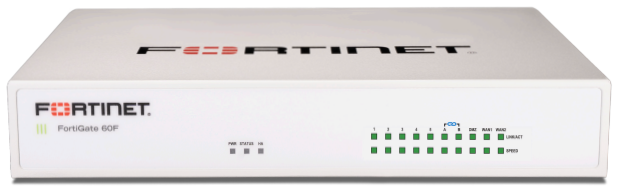

List PriceThe Fortinet FortiGate 60F is a compact, fanless desktop next-generation firewall with secure SD-WAN for branch offices and mid-sized businesses. System-on-a-chip acceleration delivers 10 Gbps of firewall throughput, 1.4 Gbps of IPS and 700 Mbps of full threat protection.

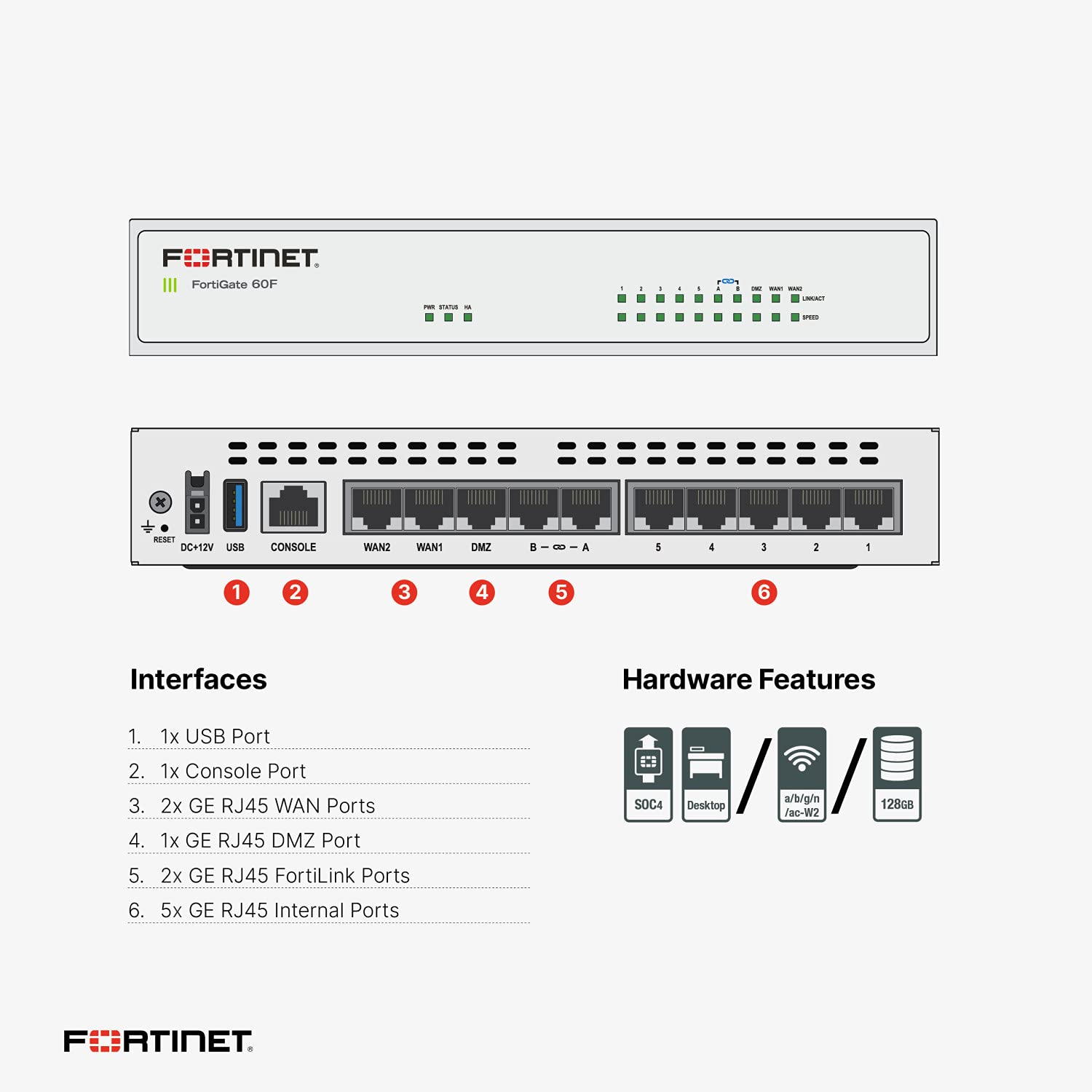

It provides ten GE RJ45 ports — 2 WAN, 1 DMZ, 5 internal and 2 FortiLink — plus a USB port that accepts a compatible third-party 3G/4G modem for backup or additional WAN connectivity. IPsec VPN runs at 6.5 Gbps with 200 gateway-to-gateway tunnels, and SSL-VPN at 900 Mbps.
The FortiLink ports integrate FortiSwitch access hardware as a logical extension of the firewall (up to 16 switches and 64 FortiAPs) and can be reconfigured as regular ports. The unit is desktop or wall-mountable, silent at 0 dBA, and built for high MTBF.
Key features
- 10 Gbps firewall throughput, 1.4 Gbps IPS, 1 Gbps NGFW, 700 Mbps threat protection
- 10× GE RJ45 ports — 2 WAN, 1 DMZ, 5 internal, 2 FortiLink
- IPsec VPN at 6.5 Gbps — 200 gateway-to-gateway and 500 client-to-gateway tunnels
- SSL-VPN at 900 Mbps — up to 200 concurrent tunnel-mode users
- 700,000 concurrent sessions, 35,000 new sessions/second
- USB port for 3G/4G modem — redundant or additional WAN link
- Manages the access layer — up to 16 FortiSwitches and 64 FortiAPs
- Fanless, 0 dBA — desktop or wall mount, high MTBF design
Works with
Frequently asked questions
Hardware only or a bundle?
Hardware only includes the appliance; FortiGuard security services are subscriptions. The bundles pair the hardware with FortiCare Premium support plus either Unified Threat Protection (UTP) or Enterprise Protection for 1, 3 or 5 years — usually the simpler and cheaper way to buy the first term.
What do the 61F and FortiWifi variants add?
The FortiGate 61F is the same firewall with a 128 GB internal SSD for on-box logging and reporting. The FortiWifi 60F/61F add a built-in single radio (2.4 GHz / 5 GHz, 802.11a/b/g/n/ac Wave 2) access point. The FortiGate 60F here has no internal storage and no wireless interface.
Is the 60F big enough for my site?
With all security inspection enabled, plan around the 700 Mbps threat-protection figure rather than the 10 Gbps firewall number. That comfortably covers most small-office connections; for more headroom the FortiGate 70F offers 800 Mbps threat protection and 1.5 million concurrent sessions, and the 80F reaches 900 Mbps.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
|---|---|
| GE RJ45 Internal Ports | 5 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 1.4 Gbps |
|---|---|
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
|---|---|
| Firewall Latency (64 byte UDP packets) | 3.3 μs |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
|---|---|
| Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
| Weight | 2.23 lbs (1.01 kg) |
| Form Factor | Desktop |
Operating Environment and Certifications
| Power Rating | 12Vdc, 3A |
|---|---|
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | 100Vac/1.0A, 240Vac/0.6A |
| Power Consumption (Average / Maximum) | 10.17 W / 12.43 W |
| Heat Dissipation | 63.1 BTU/hr |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-60F |
Hardware Specifications
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
|---|---|
| GE RJ45 Internal Ports | 5 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 1.4 Gbps |
|---|---|
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
|---|---|
| Firewall Latency (64 byte UDP packets) | 3.3 μs |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 630 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
|---|---|
| Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
| Weight | 2.23 lbs (1.01 kg) |
| Form Factor | Desktop |
Operating Environment and Certifications
| Power Rating | 12Vdc, 3A |
|---|---|
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current | 100Vac/1.0A, 240Vac/0.6A |
| Power Consumption (Average / Maximum) | 10.17 W / 12.43 W |
| Heat Dissipation | 63.1 BTU/hr |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-60F |
