Fortinet

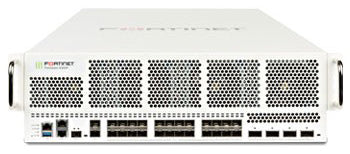

FG-6301F-DCFortinet FortiGate 6301F-DC
This model is quoted individually. Request a quotation below and we will confirm current pricing for the hardware and any FortiGuard bundle you need.
The FortiGate 6000F Series is built for digital enterprises processing large volumes of encrypted traffic and content-rich data, where the network edge faces increasingly complex and evasive attacks that demand deep inspection without a performance penalty.
It packages Fortinet's latest security, performance and connectivity engineering into a compact 3RU chassis, combining high NGFW and threat-protection throughput with strong SSL inspection performance for demanding enterprise and service-provider networks.
The 6000F Series offers among the highest NGFW and threat-protection throughput available in a compact 3U appliance, with Security Fabric integration for shared threat intelligence, transparent visibility and consistent security controls across the whole attack surface.
Key features
- 4x hardware-accelerated 40/100GE QSFP28 slots
- 24x hardware-accelerated 1/10/25GE SFP28 slots
- 3x hardware-accelerated 10GE SFP+ slots
- 2x GE RJ45 management ports, 1x USB, 1x console port
- 2x 1TB NVMe onboard storage (fitted on the 6301F-DC, not on the base 6300F-DC)
- 2x DC power supplies for telecom and data-centre DC power plant
- 212 Gbps IPS throughput on Fortinet's optimal traffic mix test
- Security Fabric integration for shared intelligence and unified visibility
- 2+1 redundant, hot-swappable power supplies
Works with
Frequently asked questions
Why isn't a price shown for the FortiGate 6301F-DC?
List pricing for the FortiGate 6301F-DC is confirmed at quotation stage; use the Request a Quotation button below with your required bundle and we will respond with current pricing.
What's different about the -DC version?
The FortiGate 6301F-DC is the NVMe-equipped 6301F chassis fitted with 2x DC power supplies for telecom and data-centre racks running DC power distribution, in place of the 100–240V AC supplies used on the AC 6301F.
Is the 6301F-DC right for my deployment?
The 6301F-DC is a 3RU rack-mount chassis weighing 69.00 lbs (31.3 kg) with 2x 1TB NVMe onboard storage, rated at 110 Gbps of IPS throughput and 60 Gbps of threat protection throughput on Fortinet's enterprise traffic mix test (up to 212 Gbps IPS throughput on the optimal traffic mix test). It supports up to 500 virtual domains and 100,000 registered FortiClients. Call or email us to confirm sizing against your traffic profile and DC power plant before ordering.
Sizing a FortiGate deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware Specifications
| 40/100GE QSFP28 slots | 4 |
|---|---|
| 1/10/25GE SFP28 slots | 24 |
| 10GE SFP+ slots | 3 |
| GE RJ45 management ports | 2 |
| USB ports | 1 |
| Console port | 1 |
| Internal storage | 2x 1TB NVMe (fitted on 6301F-DC) |
| Included transceivers | 2x SFP+ (SR 10GE) |
System Performance and Capacity
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 239 / 238 / 135 Gbps |
|---|---|
| Firewall latency (64 byte, UDP) | 5 μs |
| Firewall throughput (packets per second) | 202.5 Mpps |
| Concurrent sessions (TCP) | 120 Million |
| New sessions/sec (TCP) | 2 Million |
| Firewall policies | 200,000 |
| IPsec VPN throughput (512 byte) | 130 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 16,000 |
| Client-to-gateway IPsec VPN tunnels | 90,000 |
| Concurrent SSL-VPN users (recommended maximum, tunnel mode) | 30,000 |
| SSL inspection throughput (IPS, HTTP) | 90 Gbps |
| Application control throughput (HTTP 64K) | 150 Gbps |
| Virtual domains (default / maximum) | 10 / 500 |
| Maximum FortiTokens | 20,000 |
| Maximum registered FortiClients | 100,000 |
| High availability configurations | Supported |
System Performance — Traffic Mix
| IPS throughput (optimal traffic mix) | 212 Gbps |
|---|---|
| IPS throughput (enterprise traffic mix) | 110 Gbps |
| NGFW throughput (enterprise traffic mix) | 90 Gbps |
| Threat protection throughput (enterprise traffic mix) | 60 Gbps |
Dimensions
| Height x Width x Length (inches) | 5.20 x 17.20 x 26.18 |
|---|---|
| Height x Width x Length (mm) | 132 x 437 x 665 |
| Weight | 69.00 lbs (31.3 kg) |
| Form factor | 3 RU |
| DC power supply | -48 to -60V DC |
| Power consumption (average / maximum) | 977 W / 1,237 W |
| DC current (maximum) | 25-32A (x2) |
| Heat dissipation | 4,221 BTU/h |
| Redundant power supplies | 2+1 redundant, hot swappable |
Operating Environment
| Operating temperature | 32–104°F (0–40°C) |
|---|---|
| Storage temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise level | 57.43 dBA |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-6301F-DC |
Hardware Specifications
| 40/100GE QSFP28 slots | 4 |
|---|---|
| 1/10/25GE SFP28 slots | 24 |
| 10GE SFP+ slots | 3 |
| GE RJ45 management ports | 2 |
| USB ports | 1 |
| Console port | 1 |
| Internal storage | 2x 1TB NVMe (fitted on 6301F-DC) |
| Included transceivers | 2x SFP+ (SR 10GE) |
System Performance and Capacity
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 239 / 238 / 135 Gbps |
|---|---|
| Firewall latency (64 byte, UDP) | 5 μs |
| Firewall throughput (packets per second) | 202.5 Mpps |
| Concurrent sessions (TCP) | 120 Million |
| New sessions/sec (TCP) | 2 Million |
| Firewall policies | 200,000 |
| IPsec VPN throughput (512 byte) | 130 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 16,000 |
| Client-to-gateway IPsec VPN tunnels | 90,000 |
| Concurrent SSL-VPN users (recommended maximum, tunnel mode) | 30,000 |
| SSL inspection throughput (IPS, HTTP) | 90 Gbps |
| Application control throughput (HTTP 64K) | 150 Gbps |
| Virtual domains (default / maximum) | 10 / 500 |
| Maximum FortiTokens | 20,000 |
| Maximum registered FortiClients | 100,000 |
| High availability configurations | Supported |
System Performance — Traffic Mix
| IPS throughput (optimal traffic mix) | 212 Gbps |
|---|---|
| IPS throughput (enterprise traffic mix) | 110 Gbps |
| NGFW throughput (enterprise traffic mix) | 90 Gbps |
| Threat protection throughput (enterprise traffic mix) | 60 Gbps |
Dimensions
| Height x Width x Length (inches) | 5.20 x 17.20 x 26.18 |
|---|---|
| Height x Width x Length (mm) | 132 x 437 x 665 |
| Weight | 69.00 lbs (31.3 kg) |
| Form factor | 3 RU |
| DC power supply | -48 to -60V DC |
| Power consumption (average / maximum) | 977 W / 1,237 W |
| DC current (maximum) | 25-32A (x2) |
| Heat dissipation | 4,221 BTU/h |
| Redundant power supplies | 2+1 redundant, hot swappable |
Operating Environment
| Operating temperature | 32–104°F (0–40°C) |
|---|---|
| Storage temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise level | 57.43 dBA |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FG-6301F-DC |
