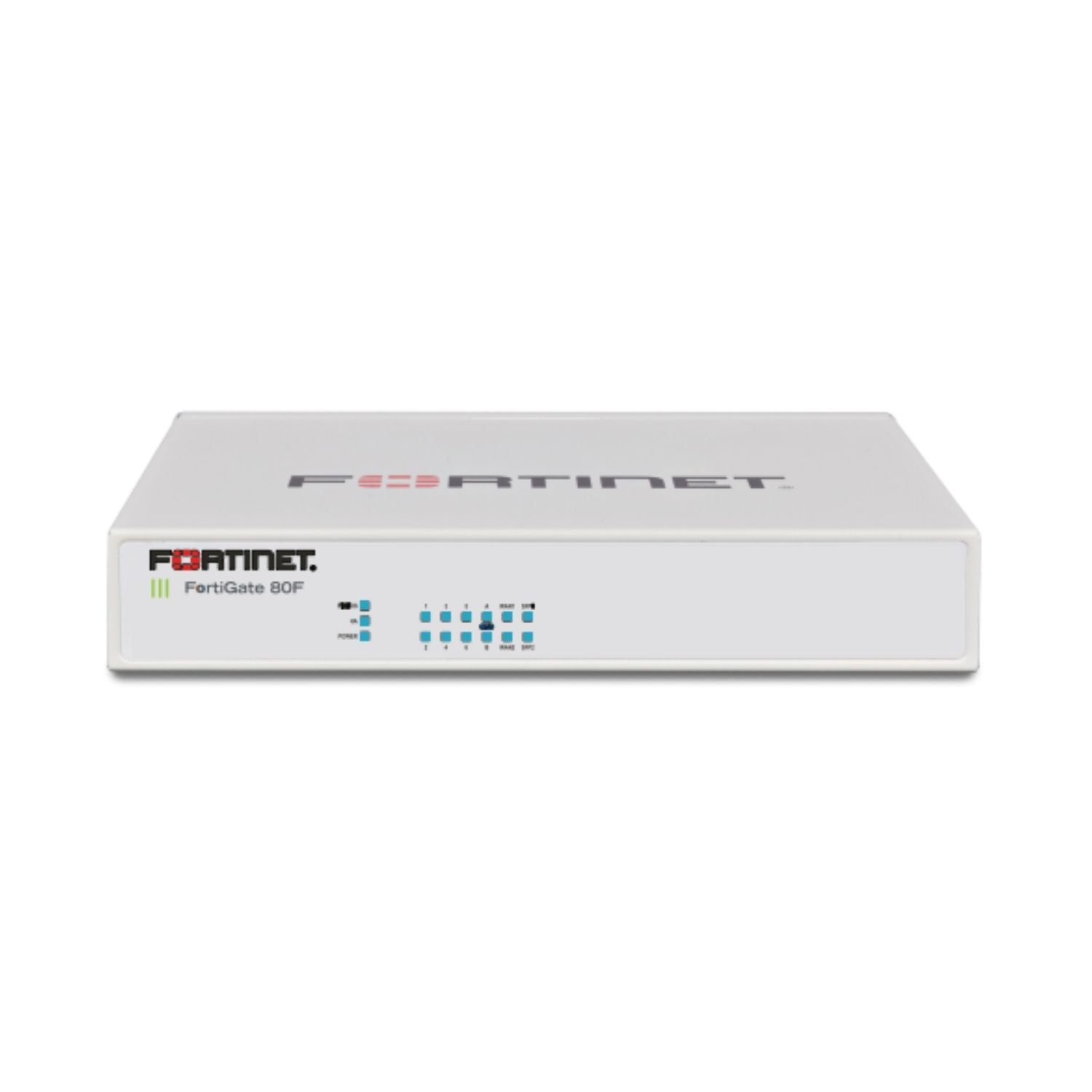

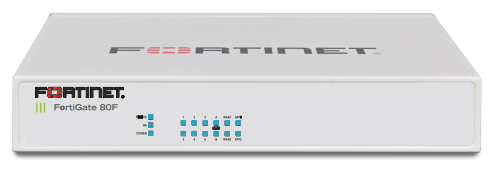

Fortinet FortiGate 80F

The Fortinet FortiGate 80F is a compact, fanless desktop next-generation firewall with secure SD-WAN for branch offices and mid-sized businesses. System-on-a-chip acceleration delivers 10 Gbps of firewall throughput, 1.4 Gbps of IPS and 900 Mbps of full threat protection.

Connectivity steps up from the smaller F-series units: 2 GE RJ45/SFP shared-media WAN pairs plus 6 internal and 2 FortiLink GE RJ45 ports, with dual-power-adapter redundancy optional. It handles 1.5 million concurrent sessions and 45,000 new sessions per second, with IPsec VPN at 6.5 Gbps and up to 2,500 client-to-gateway tunnels.

A dedicated Trusted Platform Module (TPM) generates, stores and authenticates cryptographic keys to harden the appliance itself, and Bluetooth Low Energy is built in. FortiLink ports integrate FortiSwitch hardware under the firewall (up to 16 switches and 96 FortiAPs) and can be reconfigured as regular ports.

Key features

• 10 Gbps firewall throughput, 1.4 Gbps IPS, 1 Gbps NGFW, 900 Mbps threat protection

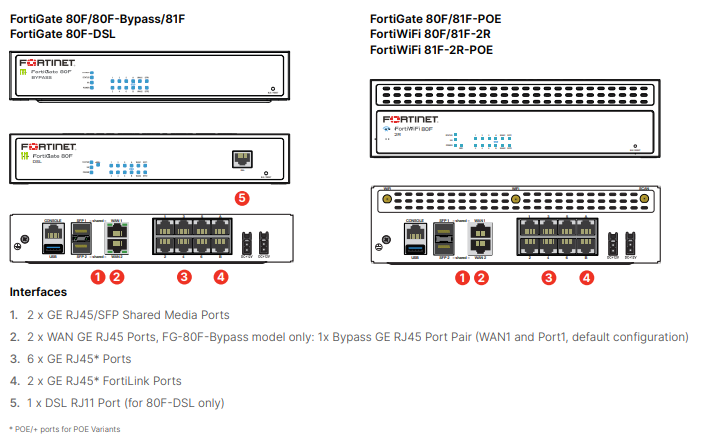

• 2× GE RJ45/SFP shared-media WAN pairs + 6 internal + 2 FortiLink GE RJ45 ports
• 1.5 million concurrent sessions, 45,000 new sessions/second
• IPsec VPN at 6.5 Gbps — 200 gateway-to-gateway and 2,500 client-to-gateway tunnels
• SSL-VPN at 950 Mbps — up to 200 concurrent tunnel-mode users
• Trusted Platform Module (TPM) — hardware key storage and authentication
• Optional power redundancy — dual external DC adapters
• Manages the access layer — up to 16 FortiSwitches and 96 FortiAPs
• Desktop, wall-mount or rack-tray form factor

Works with

• FortiGate entry-level firewalls
• FortiGuard licences & renewals

Frequently asked questions

Hardware only or a bundle?

Hardware only includes the appliance; FortiGuard security services are subscriptions. The bundles pair the hardware with FortiCare Premium support plus either Unified Threat Protection (UTP) or Enterprise Protection for 1, 3 or 5 years — usually the simpler and cheaper way to buy the first term.

What do the other 80F-series models add?

The FortiGate 81F adds a 128 GB internal SSD for on-box logging; the 80F-BYPASS adds a bypass GE RJ45 port pair (WAN1 and port1) that fails open; the 80F-POE and 81F-POE swap the internal ports for 6 PoE/+ ports; and the FortiWiFi 80F-2R adds a built-in dual-band, dual-stream Wi-Fi 6 (802.11ax) access point. This listing is the standard FortiGate 80F.

Is the 80F big enough for my site?

Plan around the 900 Mbps threat-protection figure — the realistic ceiling with all inspection enabled — plus 45,000 new sessions per second and 1.5 million concurrent sessions. That gives the 80F clear headroom over the 60F and 70F for busier branches, and the SFP shared-media ports add fibre WAN flexibility.
