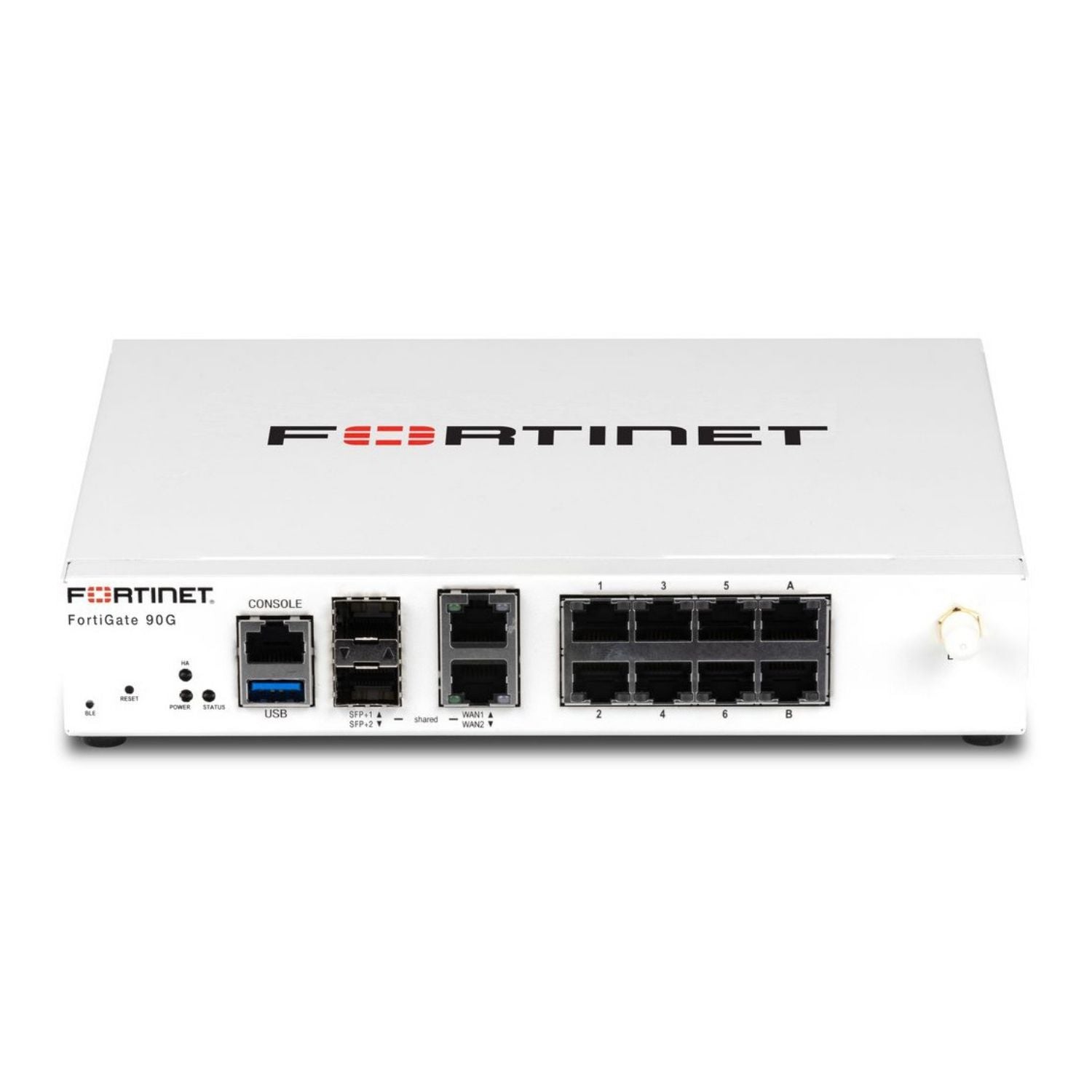

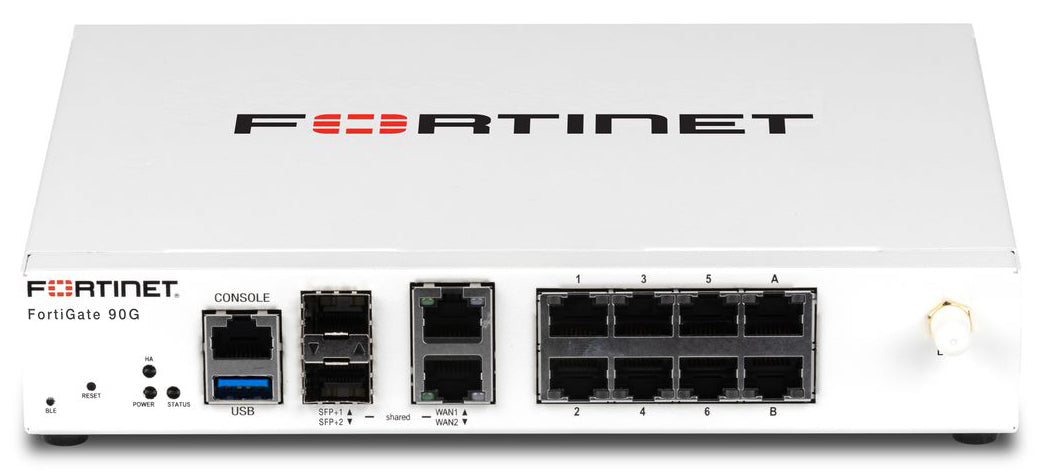

Fortinet FortiGate 90G

The Fortinet FortiGate 90G is a next-generation firewall for building security-driven networks at distributed enterprise sites. It delivers 28 Gbps firewall throughput, 4.5 Gbps IPS throughput and 2.2 Gbps threat protection throughput through 8× GE RJ45 ports and 2× 10GE RJ45/SFP+ shared-media pairs, with 1.5 million concurrent sessions and 124,000 new sessions per second.

AI/ML-based FortiGuard security services and the integrated Security Fabric platform give coordinated, automated, end-to-end threat protection across the network. SD-WAN and zero-trust network access (ZTNA) enforcement are built into the same appliance and run on one operating system, so the 90G controls, verifies and enforces application access in a single policy framework.

FortiOS converges networking and security across the Fortinet Security Fabric, delivering consistent, context-aware security wherever it is deployed. The 90G drives 25 Gbps of IPsec VPN, includes a TPM for hardware root of trust, and supports dual DC power inputs for redundancy.

Key features

• 28 Gbps firewall throughput (1518/512-byte UDP), 3.23 μs latency, 41.85 Mpps
• 4.5 Gbps IPS and 2.5 Gbps NGFW throughput (enterprise mix), 2.2 Gbps full threat protection
• 25 Gbps IPsec VPN throughput, up to 2,500 client-to-gateway tunnels
• 1.5 million concurrent sessions, 124,000 new sessions per second, 5,000 firewall policies

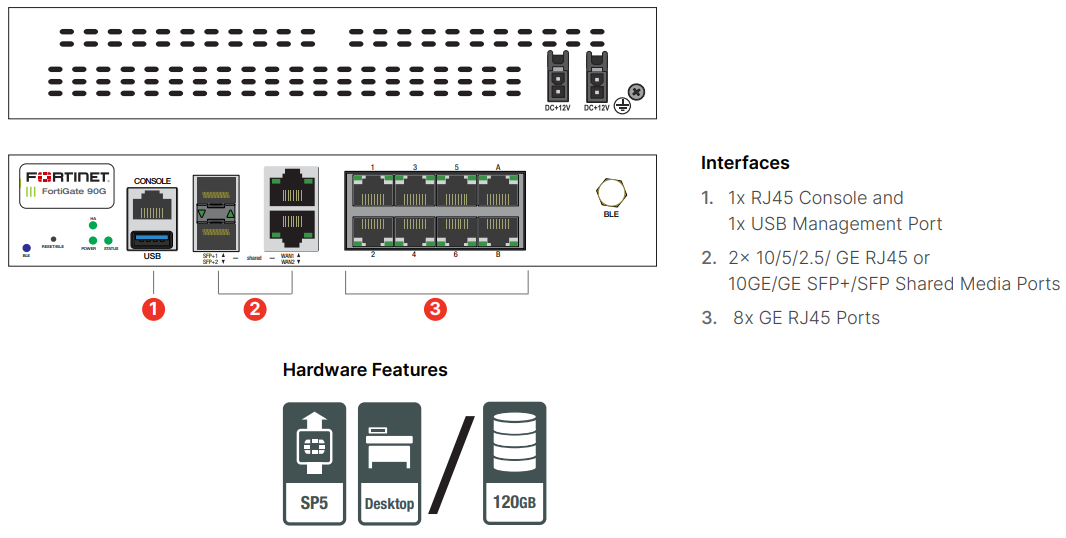

• 2× 10G/5G/2.5G/GE RJ45 or 10GE/GE SFP+/SFP shared-media pairs plus 8× GE RJ45 internal ports
• Integrated SD-WAN and ZTNA enforcement in one FortiOS appliance
• Trusted Platform Module (TPM) and Bluetooth Low Energy on board
• Security Fabric management for up to 96 FortiAPs, 24 FortiSwitches and 500 FortiTokens
• Dual external DC power option for redundancy in a 21.73 dBA desktop unit

Works with

• FortiGate entry-level firewalls
• FortiGuard licences & renewals

Frequently asked questions

Bundle or hardware only?

Hardware only is the appliance with no FortiGuard subscription — right when licences are bought or renewed separately. Bundles add FortiCare Premium support plus FortiGuard UTP or Enterprise Protection services for 1, 3 or 5 years on one SKU.

What does the FortiGate 91G add?

The 91G is the same platform with a 120 GB SSD for on-box logging and reporting; the 90G has no internal storage. Every other headline specification matches.

FortiGate 70G or 90G?

The 90G nearly triples firewall throughput (28 Gbps vs 10 Gbps), more than doubles IPS (4.5 Gbps vs 2 Gbps), raises IPsec VPN to 25 Gbps and adds 10GE shared-media uplinks — choose it for larger sites, faster WAN links or heavier inspected traffic.
