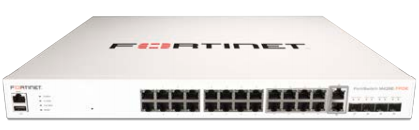

Fortinet FortiSwitch M426E-FPOE

The Fortinet FortiSwitch M426E-FPOE is a Layer 2/3 member of the FortiSwitch Secure Access family, built for edge and access deployments that need a mix of standard Gigabit and multi-gigabit PoE ports. It combines security, performance and manageability in a single 1RU switch, giving threat-conscious businesses a right-sized access layer for wired and wireless devices alike.

Tightly integrated into the Fortinet Security Fabric via FortiLink, the M426E-FPOE can be managed directly from the familiar FortiGate interface. FortiLink is Fortinet's proprietary management protocol that turns the switch into a logical extension of the FortiGate, so network security and access-layer functions are configured and monitored through a single console — reducing complexity and giving full visibility over users and devices regardless of how they connect.

Its port layout — 16x GE RJ45, 8x MultiGig 2.5GE UPOE-capable RJ45, 2x MultiGig 5GE RJ45 and 4x 10GE SFP+ — with an automatic 420W PoE output limit makes it well suited to powering Wi-Fi 6/6E access points, PoE cameras and other multi-gigabit edge devices from a single switch, while FortiLink integration keeps it under centralised, role-based policy control.

Key features

• Mixed-speed port layout — 16x GE, 8x MultiGig 2.5GE UPOE-capable and 2x MultiGig 5GE RJ45 ports, plus 4x 10GE SFP+ uplinks (SFP+ compatible with 1GE SFP)
• Automatic PoE budget management up to 420W across the UPOE-capable ports, for powering access points, cameras and other PoE-class devices
• FortiLink integration — becomes a logical extension of any FortiGate, managed from a single Security Fabric console with centralised, role-based policy control
• 172 Gbps switching capacity at 255 Mpps forwarding, with a 16K MAC address table and support for up to 4K VLANs
• 1 GB DDR4 RAM and 256 MB flash, with link aggregation up to 8 ports per group
• Redundant AC power supply support for high-availability deployments
• Auto-discovery and centralised management of up to 300 FortiSwitches per FortiGate (model dependent), including software upgrades, VLAN and PoE control
• Limited lifetime warranty on the hardware

Works with

• FortiGate firewalls
• The Fortinet range

Frequently asked questions

How is the FortiSwitch M426E-FPOE managed?

Via FortiLink from the integrated controller on any FortiGate, bringing the switch into the Fortinet Security Fabric under a single console for VLAN, PoE and policy configuration. It can also be run as a standalone managed switch outside a FortiGate deployment.

What's the difference between FortiCare Premium and Elite support?

Both are paid support tiers for the M426E-FPOE, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.

What PoE power does the M426E-FPOE deliver?

Up to 420W total, automatically managed across its 802.3af/at and UPOE-capable ports. The switch itself runs from a built-in 100–240V AC supply, with redundant AC available.
