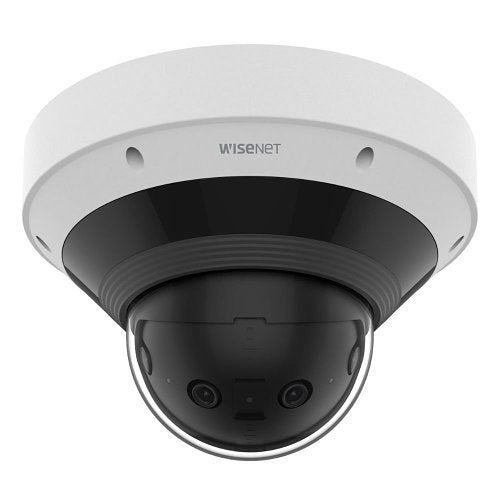

PNM-C9022RV/KEXHanwha PNM-C9022RV 8MP AI Panoramic IP Dome Camera,2.8mm Fixed Lens, IR 20M, IP66, White, (Replaces PNM-9022V)
The Hanwha PNM-C9022RV 8MP AI Panoramic IP Dome Camera,2.8mm Fixed Lens, IR 20M, IP66, White, (Replaces PNM-9022V) is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 8MP video at up to 20fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
The 2.8mm fixed lens gives a 209.0° horizontal field of view and 4.0x optical zoom.
Active illumination, near-infrared illumination reaches up to 20 m for night-time coverage, and the minimum illumination is 0.0100 lux.
It connects over Ethernet, encoding video as H.264, H.265, MJPEG.
It runs from 12V DC, and it records locally to sd card.
The aluminum housing is rated IP66 and IK10 for outdoor use, and operates from -40°C to 55°C and mounts pendant.
Discover the cutting-edge Hanwha PNM-C9022RV 8MP AI Panoramic IP Dome Camera, designed to deliver a comprehensive 8MP panoramic view with a 2.8mm fixed lens. Experience unparalleled surveillance with IR capabilities up to 20m and WiseIR technology. This robust camera supports multiple codecs including H.265, H.264, and MJPEG, ensuring high-quality video at up to 20fps. Equipped with Day/Night functionality and extremeWDR for clear images in varying light conditions, it also features a hard-coated dome bubble for durability. Advanced AI-driven analytics allow for precise object classification and event detection, enhancing security measures. Rated IP66 and IK10, it's built to withstand harsh environments. Enhance your security setup with this reliable and efficient solution. Act now to secure your premises!
Analytics events; Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear / Disappear)
Key features
- WiseNRII(Based on AI engine), WiseStreamIII (Based on AI engine)
- Analytics events based on AI engine; Object classification(Person / Vehicle)
- Audio Detection
- Back Light Compensation (BLC)
- Day/Night
- Gain Control
- Human Detection
- Motion Detection
- Noise Reduction
- Tamper Detection
- Vehicle Detection
- Video Content Analytics
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Series: P
- Product Type: Network Camera
- Part number: PNM-C9022RV/KEX
- Brand: Hanwha Vision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 8MP
- Field of View: Horizontal, Vertical
- Field of View (Horizontal): 209.0°
- Field of View (Vertical): 60.00°
- Lens Type: Fixed
- Maximum Aperture: f/2
- Maximum Frame Rate: 20fps
- Minimum Focal Length: 2.80mm
- Night Vision: Yes
- Night Vision Type: Active Illumination, Near-Infrared (NIR)
- Optical Zoom: 4.0x
- Video Formats: H.264 / AVC, H.265 / HEVC, MJPEG
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 20.00m
Certifications
- Ingress Protection Rating: IP66
- TAA Compliant: Yes
Display & Graphics
- Number of Sensors: 4
Environmental Conditions
- Maximum Operating Temperature: 55°C
- Minimum Operating Temperature: -40°C
- Operating Humidity: 95%
Exposure
- Longest Shutter Speed: 2 Second
- Minimum Illumination: 0.0100lux
- Shortest Shutter Speed: 1/12000 Second
Interfaces/Ports
- Network (RJ-45): Yes
Lens
- Focal Length: 2.8mm
- Lens Included: Yes
- Maximum Focal Length: 2.80mm
Network & Communication
- Remote Management: Yes
Physical Characteristics
- Colour: White
- Durability: Dustproof, Impact Resistant, Waterproof
- Form Factor: Dome
- Height: 170.00mm
- Weight: 2.90kg
Power Description
- Input Voltage: 12V DC
Product Information
- Diameter: 253.00mm
- Mount Type: Pendant Mount
Storage
- Storage Type: SD Card
Miscellaneous
- Features: Audio Detection, Back Light Compensation (BLC), Day/Night, Gain Control, Human Detection, Motion Detection, Noise Reduction, Tamper Detection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range
- Impact Protection Rating: IK10
- Indoor/Outdoor: Outdoor
