Hanwha Vision

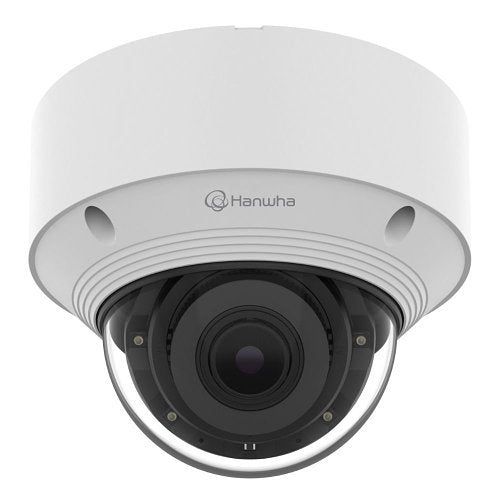

QNV-C9083R/VEXHanwha QNV-C9083R/VEX Q Series, 8MP Vandal Dome Camera, 3.2-10.2mm Varifocal Lens
The Hanwha QNV-C9083R/VEX Q Series, 8MP Vandal Dome Camera, 3.2-10.2mm Varifocal Lens is a genuine Hanwha Vision product, supplied new and boxed through official UK distribution. It connects to your recorder or network to provide clear day and night surveillance footage.
A CMOS sensor captures 8MP (3840 x 2160) video at up to 30fps, and wide dynamic range (WDR) holds detail in scenes with bright and dark areas together.
The 3.2-10.2mm varifocal lens gives a 104.0° horizontal field of view and 3.0x optical zoom.
Active illumination, near-infrared illumination reaches up to 30 m for night-time coverage, and the minimum illumination is 0.0060 lux.
It connects over Ethernet, encoding video as H.264, H.264 High Profile, H.264 Main Profile, H.265.
It records locally to sd card.
The aluminum,hard-coateddome housing is rated IP66 and IK10, and operates from -30°C to 55°C and mounts backbox, conduit box, gang box or pendant.
Discover the power of high-definition surveillance with the Hanwha QNV-C9083R/VEX Q Series 8MP Vandal Dome Camera. Equipped with a 3.2-10.2mm motorized varifocal lens, this camera delivers crystal-clear images at up to 8MP resolution and 30 frames per second. Experience superior low-light performance with color visibility down to 0.06 Lux and black-and-white at 0.006 Lux. It supports H.265, H.264, and MJPEG codecs, ensuring efficient video compression and multiple streaming options. The robust design is both IP66 weatherproof and IK10 vandal-resistant, making it ideal for outdoor use. With features like Day and Night (ICR) and Wide Dynamic Range (WDR) of 120 dB, it adapts to varying lighting conditions. Power over Ethernet (PoE) simplifies installation by combining power and connectivity into a single cable. Enhance your security setup now with this versatile and durable camera.
Key features
- Color; 0.06Lux(F1.6, 1/30sec), BW; 0.006Lux(F1.6, 1/30sec, 30IRE)
- IP66,IK10
- PoE:Max12W
- Back Light Compensation (BLC)
- Day/Night
- Digital Noise Reduction
- Gain Control
- Mirror
- Motion Detection
- Privacy Masking
- PTZ
- White Balance
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
General
- Product Series: Q
- Product Type: Network Camera
- Part number: QNV-C9083R/VEX
- Brand: Hanwha Vision
Technical Information
- Connectivity Technology: Wired
- Effective Camera Resolution: 8MP
- Field of View: Diagonal, Horizontal, Vertical
- Field of View (Horizontal): 104.0°
- Field of View (Vertical): 55.00°
- Lens Type: Varifocal
- Maximum Aperture: f/1.6
- Maximum Frame Rate: 30fps
- Minimum Focal Length: 3.20mm
- Night Vision: Yes
- Night Vision Type: Active Illumination, Near-Infrared (NIR)
- Optical Zoom: 3.0x
- Video Formats: H.264 / AVC, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, H.265 High Profile, H.265 Main Profile, MJPEG
- Video Resolution: 1280 x 720
- Wide Dynamic Range: Yes
Camera
- Image Sensor Type: CMOS
- Night Vision Distance: 30.00m
Certifications
- Ingress Protection Rating: IP66
Display & Graphics
- Maximum Video Resolution: 3840 x 2160
Environmental Conditions
- Maximum Operating Temperature: 55°C
- Minimum Operating Temperature: -30°C
- Operating Humidity: 95%
Exposure
- Longest Shutter Speed: 1/5 Second
- Minimum Illumination: 0.0060lux
- Shortest Shutter Speed: 1/12000 Second
Interfaces/Ports
- Network (RJ-45): Yes
Lens
- Focal Length: 3.2-10.2mm
- Lens Included: Yes
- Maximum Focal Length: 10.20mm
- Minimum Aperture: f/3.1
Network & Communication
- Remote Management: Yes
Physical Characteristics
- Colour: Silver
- Durability: Dustproof, Impact Resistant, Waterproof
- Form Factor: Dome
- Height: 110.20mm
- Weight: 875.00g
Product Information
- Diameter: 140.00mm
- Mount Type: Backbox Mount, Conduit Box Mount, Gang Box Mount, Pendant Mount
Storage
- Recording Formats: H.264, H.265 / HEVC
- Storage Type: SD Card
Video
- Maximum Resolution: 1280 x 720
Miscellaneous
- Features: Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Mirror, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
- Impact Protection Rating: IK10
