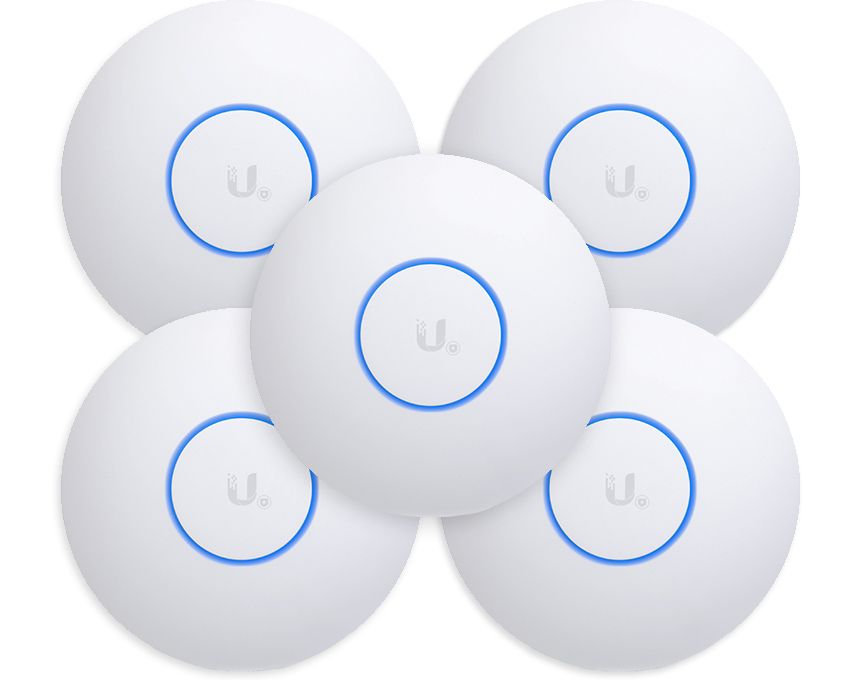

Ubiquiti UniFi AP AC SHD Indoor - Outdoor Access Point (UAP-AC-SHD-5) - 5 Pack

• Simultaneous Dual-Band 4x4 Multi-User MIMO
• 500+ Client Connections
• 2.4 GHz Radio Rate 800 Mbps
• 5GHz Radio Rate 1733 Mbps
• PoE Mode 802.3at PoE+
• Dedicated Security Radio with Persistent Threat Management
• Real-Time Spectrum and airTime Utilisation Engine
• airTime provides real‑time visibility into channel utilisation at packet level
• airView provides real‑time visibility into RF environment across all available channels
• Dedicated Wireless Intrusion Prevention System (WIPS) security radio and processor for ultimate security, protection, and network awareness
• airTime provides real‑time visibility into channel utilisation at packet level
• airView provides real‑time visibility into RF environment across all available channels

• Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
• Weight: 700 g (1.54 lb) With Mounting Kits: 830 g (1.83 lb)
• Networking Interface: (2) 10/100/1000 Ethernet Ports
• Buttons: Reset
• Power Method: 802.3at PoE+
• Supported Voltage Range: 44 to 57VDC
• Power Supply: UniFi Switch (PoE)
• Power Save: Supported
• Maximum Power Consumption: 20W
• Radios: 2.4 GHz, 5 GHz, Security
• TX Power: 2.4 GHz: 6-25 dBm
• 5 GHz: 6-25 dBm
• Antennas: 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each
• 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each
• Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) - 802.11w (PMF)
• BSSID: Up to 8 per Radio
• Mounting: Wall/Ceiling (Kits Included)
• Operating Temperature: -10 to 70° C (14 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 1000+
• Standard: Data Rates
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Overview

The Ubiquiti UniFi UAP-AC-SHD-5 access point enables you to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.

The built-in, dedicated security and monitoring dual-band radios of the UniFi AC SHD (Secure High Density) AP (5 Pack) provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance.

With the UAP-AC-SHD-5 , the user also has the additional benefit of being capable of quickly responding to changing interference and security threat landscapes. airTime provides real time visibility into channel utilisation at packet level. airView provides real-time visibility into RF environment across all available channels.

Part number: UAP-AC-SHD-5 · Brand: Ubiquiti
