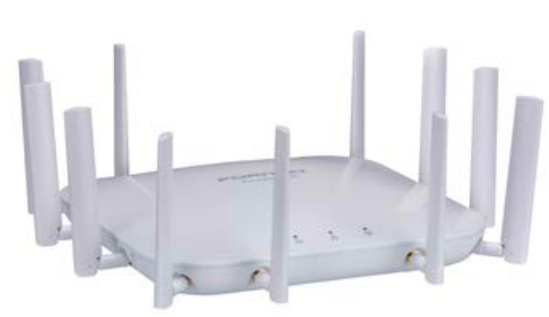

FAP-443K-EFortinet FortiAP 443K
List PriceThe Fortinet FortiAP 443K is a high-performance, enterprise-class Wi-Fi 7 indoor access point with external antennas. It carries four radios and four spatial streams (4x4 MIMO), covers the 6 GHz band, and provides two multi-gigabit Ethernet ports. A dedicated scanning radio delivers 24/7 background scanning across all bands while the other three radios keep serving clients on 2.4 GHz, 5 GHz and 6 GHz simultaneously. An integrated BLE/ZigBee radio supports beacon and location-based applications.
FortiAP access points are managed centrally by the integrated WLAN controller on any FortiGate security appliance, or through the FortiLAN Cloud provisioning and management portal. Combining the wireless controller with the FortiGate appliance suits campus and branch deployments, and brings wired and wireless security together under Fortinet's Security Fabric single-pane-of-glass management.
The 443K supports a range of installation topologies, from a single building with multiple floors up to a corporate or education campus spanning several large buildings.
Key features
- Quad-radio Wi-Fi 7 design — dedicated 2.4GHz, 5GHz and 6GHz service radios plus a tri-band scanning radio, all with 4x4 MIMO
- Up to 11.53 Gbps on the 6GHz radio, 8.65 Gbps on 5GHz and 1.15 Gbps on 2.4GHz
- External antennas for sites needing directional or high-gain antenna options (internal-antenna variant: FortiAP 441K)
- Two multi-gigabit Ethernet ports (100M–10G RJ45), plus USB 3.0 and an RS-232 serial port
- Powered by 802.3bt PoE by default, or dual 802.3at PoE with current sharing
- Up to 24 simultaneous SSIDs, with WPA3, 802.1X, captive portal and MAC filtering
- OFDMA, UL/DL MU-MIMO, BSS Coloring and enhanced Target Wake Time (TWT) for high-density performance
- Wireless monitoring — rogue scan, WIPS/WIDS, packet sniffer and spectrum analyzer
- Managed by FortiGate's integrated controller or FortiLAN Cloud
Works with
Frequently asked questions
How is the FortiAP 443K managed?
Centrally, by the integrated WLAN controller built into any FortiGate security appliance, or through the FortiLAN Cloud provisioning and management portal — bringing wired and wireless management into a single console under Fortinet's Security Fabric.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the 443K, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.
What power does the 443K need?
It runs on 802.3bt PoE by default, or dual 802.3at PoE with current sharing across its two Ethernet ports. Maximum power consumption is 41.7W. Where PoE isn't available, a GPI-145 or SP-FAP250-PA-10 power supply can be used.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware type | Indoor AP |
|---|---|
| Number of radios | 4 + 1 BLE |
| Number of antennas | External x4 2.4/5GHz dual-band Wi-Fi + x4 6GHz band Wi-Fi x2 tri-band scanning + 1 single-band 2.4GHz BLE/ZigBee + 1 GPS antenna |
| Antenna type and peak gain | Omni-directional. Dual-band: 5.0 dBi (2.4GHz), 5.0 dBi (5GHz). 6GHz: 5.8 dBi. Tri-band: 5.0 dBi (2.4GHz), 5.0 dBi (5GHz), 4.0 dBi (6GHz). BLE: 5.1 dBi (2.4GHz). GPS active antenna: 2.2 dBi |
| Frequency bands | ISM 2.4–2.484 GHz · U-NII-1 5.15–5.25 GHz · U-NII-2A 5.25–5.35 GHz · U-NII-2C 5.47–5.725 GHz · U-NII-3 5.725–5.85 GHz · U-NII-4 5.850–5.925 GHz · U-NII-5 5.925–6.425 GHz · U-NII-6 6.425–6.525 GHz · U-NII-7 6.525–6.875 GHz · U-NII-8 6.875–7.125 GHz |
| Radio 1 capabilities | 2.4GHz | 20/40MHz | BPSK–1024 QAM | 4x4 MIMO |
| Radio 2 capabilities | 5.0GHz (UNII-1 to UNII-4) | 20/40/80/160/240MHz | BPSK–4096 QAM | 4x4 MIMO |
| Radio 3 capabilities | 6.0GHz (UNII-5 to UNII-8) | 20/40/80/160/320MHz | BPSK–4096 QAM | 4x4 MIMO |
| Radio 4 capabilities (scanning) | 2.4/5.0/6.0GHz | 20/40/80/160MHz | BPSK–1024 QAM | 2x2 |
| Maximum data rate | 2.4GHz: up to 1.148 Gbps · 5.0GHz: up to 8.648 Gbps · 6.0GHz: up to 11.530 Gbps |
| Bluetooth Low Energy radio | Bluetooth scanning and iBeacon advertisement at 10 dBm max Tx power |
| Interfaces | 2x 100M/1000M/2.5G/5.0G/10G multi-gigabit Ethernet (RJ45), 1x USB 3.0 (4.5W), 1x RS-232 RJ45 serial port |
| Power over Ethernet (PoE) | 1x 802.3bt PoE (default), or 2x 802.3at PoE with dual PoE current sharing |
| Simultaneous SSIDs | Up to 24 |
| EAP types | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/device authentication | WPA, WPA2 and WPA3 with 802.1X or pre-shared key, WEP, web captive portal, MAC blacklist/whitelist |
| Maximum Tx power (conducted) | 2.4GHz: 29 dBm/794 mW · 5.0GHz: 27.8 dBm/602 mW · 6.0GHz: 23 dBm/200 mW (4 chains combined) |
| Kensington lock | Yes |
| IEEE standards | 802.11a, b, be, e, g, h, i, j, k, n, r, v, ac, ax, 802.1X, 802.3ad, at, bt, az |
| SSIDs supported | Local-Bridge, Tunnel and Mesh |
| Per-radio client capacity | Up to 512 clients per radio (radios 1–3) |
| Cellular co-existence | Yes |
| LED off mode | Yes |
Advanced 802.11 features
| OFDMA | Yes (UL and DL) |
|---|---|
| Spatial reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS | No |
Wireless monitoring
| Rogue scan radio modes | Background, dedicated |
|---|---|
| WIPS/WIDS radio modes | Background, dedicated (recommended) |
| Packet sniffer mode | Yes |
| Spectrum analyzer | Yes |
Dimensions
| Length x width x height | 9.84 x 9.84 x 2.26 in (250 x 250 x 57.5 mm) |
|---|---|
| Weight | 4.36 lbs (1.98 kg) |
| Package (shipping) weight | 6.9 lbs (3.13 kg) |
| Mounting options | Ceiling, T-rail and wall |
| Included accessories | Standard mounting kit for ceiling, T-rail and wall |
Environment
| Power supply | GPI-145 or SP-FAP250-PA-10 |
|---|---|
| Power consumption (maximum) | 41.7 W |
| Humidity | 5%–90% non-condensing |
| Operating / storage temperature | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) |
| Directives | Low Voltage Directive, RoHS |
| UL2043 plenum material | Yes |
| Mean time between failures | > 10 years |
| Surge protection built in | Yes |
Certifications and warranty
| Wi-Fi Alliance certified | Certified (Wi-Fi 7 in progress) |
|---|---|
| DFS | No |
| Limited lifetime warranty | Yes |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-443K-E |
