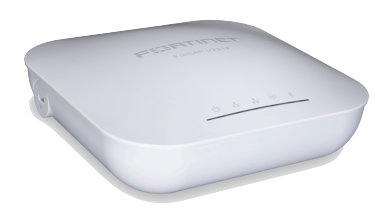

FC-10-P231F-247-02-12Fortinet FortiAP U231F
List PriceThe Fortinet FortiAP U231F is part of the FortiAP-U family, which adds the flexibility of dual 5GHz support to Fortinet's Wi-Fi 6 (802.11ax) line-up. Radio 1 can run on either the 2.4GHz or the 5GHz (high) band, Radio 2 is a fixed 2x2 5GHz radio, and Radio 3 serves 2.4GHz clients while also handling dual-band background scanning — giving up to 1201 Mbps, 1201 Mbps and 574 Mbps respectively.
It can be managed intelligently through a standalone FortiWLC controller, an integrated FortiGate security controller, or through cloud management — a flexibility built to cover deployments from a large campus down to hundreds of branch locations.
OFDMA and the other Wi-Fi 6 efficiency features built into the wider FortiAP-U family improve client throughput and overall network efficiency, and the AP integrates with Fortinet's Security Fabric for protection at the network edge.
Key features
- Tri-radio, dual-5GHz-capable design — Radio 1 (2.4 or 5GHz high band) up to 1201 Mbps, Radio 2 (5GHz) up to 1201 Mbps, Radio 3 (2.4GHz + dual band scan) up to 574 Mbps
- Flexible controller support — standalone FortiWLC, integrated FortiGate WLAN controller, or cloud management
- Wi-Fi 6 efficiency features — OFDMA, 2.4GHz OFDMA, Spatial Reuse (BSS Coloring), HE-MU-MIMO, UL/DL MU-MIMO, Transmit Beam Forming, LDPC encoding, and Target Wake Time
- ZeroWait DFS / Agile DFS supported
- Built-in Bluetooth/BLE radio for beacon and locationing applications
- Up to 24 simultaneous SSIDs (21 with background scanning enabled)
- WPA3, WPA2 and 802.1X authentication, Web Captive Portal, and MAC blocklist/allowlist
- Optional FortiGuard UTP subscription for FortiGate/FortiCloud-managed FortiAP-U family units, plus FortiCare Premium and Elite support tiers
- Ceiling, T-Rail or wall mountable, backed by a limited lifetime hardware warranty
Works with
- FortiGate firewalls — for integrated WLAN controller management
- The Fortinet range
Frequently asked questions
How is the FortiAP-U231F managed?
It supports standalone FortiWLC controllers, integrated FortiGate security controllers, or cloud management, so it can slot into a campus deployment with a dedicated wireless controller or into a branch estate managed centrally from the cloud.
What's the difference between FortiCare Premium and Elite Support?
Both are FortiCare support subscriptions for the FortiAP-U231F. Elite Support sits above Premium as the higher tier — Fortinet also sells a Premium-to-Elite upgrade SKU, confirming Elite is a superset of Premium cover rather than a separate track. A separate FortiGuard Universal Threat Protection (UTP) subscription is also available for FortiGate or FortiCloud-managed FortiAP-U family units.
What power does the FortiAP-U231F need?
It is powered by 802.3at PoE by default; 802.3af PoE also works but runs the radios at reduced TX power with no USB function. Maximum power consumption is 18.5W, and it can be supplied via the SP-FAP200-PA-XX AC adaptor.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware type | Indoor AP |
|---|---|
| Number of radios | 3 + 1 BT/BLE |
| Number of antennas | 4 dual band Wi-Fi + 2 Wi-Fi/dual band scanning + 1 single band 2.4GHz BLE/ZigBee |
| Antenna type and peak gain | PIFA antenna, dual band: 3.97 dBi for 2.4GHz and 5.89 dBi for 5GHz; single band 5GHz antenna: 5 dBi; BLE antenna: 3.5 dBi at 2.4GHz |
| Radio 1 | 2.4GHz or 5.0GHz (high band), a/b/g/n/ac/ax, 2x2:2 stream, 20/40/80MHz channel width, BPSK/QPSK/64/256/1024 QAM |
| Radio 2 | 5.0GHz, a/b/g/n/ac/ax, 2x2:2 stream, 20/40/80MHz channel width, BPSK/QPSK/64/256/1024 QAM |
| Radio 3 | 2.4GHz service, b/g/n/ax, 2x2:2 stream, 20/40MHz channel width, BPSK/QPSK/64/256/1024 QAM, plus dual band scan |
| Maximum data rate | Radio 1: up to 1201 Mbps; Radio 2: up to 1201 Mbps; Radio 3: up to 574 Mbps |
| Bluetooth Low Energy (BT/BLE) radio | Bluetooth scanning and iBeacon advertisement at 10 dBm max TX power |
| Interfaces | 2x 10/100/1000 Base-T RJ45, 1x USB 2.0, 1x RS-232 RJ45 serial port |
| Power over Ethernet | 1x 802.3at PoE (default); 1x 802.3af PoE (reduced TX power, no USB function) |
| Simultaneous SSIDs | Up to 24 (21 if background scanning enabled) |
| EAP types | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/device authentication | WPA, WPA2 and WPA3 with 802.1X or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Per-radio client capacity | Up to 512 clients per radio (all radios) |
| SSID types supported | Local-Bridge, Tunnel, and Mesh |
| Kensington lock | Yes |
| Cellular co-existence | Yes |
| IEEE standards | 802.11a/b/e/g/h/i/j/k/n/r/v/ac/ax, 802.1Q, 802.1X, 802.3ad/af/at/az |
Advanced 802.11 features
| Transmit Beam Forming (TxBF) | Yes |
|---|---|
| Low-Density Parity Check (LDPC) encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU packet aggregation | Yes |
| OFDMA | Yes |
| 2.4 GHz OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| HE-MU-MIMO | Yes |
| UL MU-MIMO (802.11ax mode) | Yes |
| UL MU-MIMO (802.11ac mode) | Yes |
| DL-MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS / Agile DFS | Yes |
Wireless monitoring capabilities
| Rogue scan radio modes | Background, Dedicated |
|---|---|
| WIPS / WIDS radio modes | Background, Dedicated (recommended) |
| Packet sniffer mode | Yes |
| Spectrum analyzer | Yes |
Dimensions
| Length x width x height | 6.5 x 6.5 x 2.05 inches (165 x 165 x 52 mm) |
|---|---|
| Weight | 1.5 lbs (0.68 kg) |
| Package (shipping) weight | 2.6 lbs (1.185 kg) |
| Mounting options | Ceiling, T-Rail and Wall |
| Included accessories | Standard mount kit for ceiling, T-Rail and wall |
Environment
| Power supply | SP-FAP200-PA-XX |
|---|---|
| Power consumption (maximum) | 18.5 W |
| Humidity | 5–90% non-condensing |
| Operating / storage temperature | 32–122°F (0–50°C) / -22–158°F (-30–70°C) |
| Directives | Low Voltage Directive, RoHS |
| Mean time between failures | > 10 years |
Certifications and warranty
| Wi-Fi Alliance certified | No |
|---|---|
| DFS | No |
| Limited lifetime warranty | Yes |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-U231F-E |
