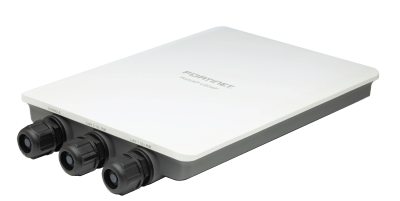

FC-10-PU234-247-02-12Fortinet FortiAP U234F
List PriceThe FortiAP U234F is part of Fortinet's FortiAP-U family of Wi-Fi 6 access points, built for large campuses and multi-site branch deployments. It runs FortiGuard services at the network edge and adds dual 5 GHz radio operation for extra capacity.
Management is centralised through the integrated WLAN controller on any FortiGate security appliance, the FortiLAN Cloud provisioning and management portal, or a standalone FortiWLC controller.
Built on 802.11ax (Wi-Fi 6) with OFDMA, the U234F reaches up to 2,402 Mbps per radio and integrates with Fortinet’s Security Fabric for network-edge threat protection. Its IP67-rated enclosure and wall/pole mounting kit suit outdoor coverage.
Key features
- 2x2 Wi-Fi 6 (802.11ax) outdoor access point in an IP67-rated enclosure
- Three radios — dual 5 GHz plus a scanning radio — with an integrated BLE radio for beacons and locationing
- Up to 2,402 Mbps per radio with OFDMA (UL and DL), UL/DL MU-MIMO and Target Wake Time (TWT)
- Up to 16 simultaneous SSIDs (14 with background scanning enabled)
- WPA3, WPA2, 802.1X, MAC allow/block lists and captive portal authentication
- Powered by 802.3bt/at PoE — ships with a PoE injector with reset switch
- Wall/pole mounting kit and grounding cable included
- Managed via the integrated FortiGate WLAN controller, FortiLAN Cloud, or a standalone FortiWLC controller
Works with
- FortiGate firewalls — pair with a FortiGate to manage the AP through its integrated WLAN controller
- the Fortinet range
Frequently asked questions
How is the FortiAP U234F managed?
Centrally, through the integrated WLAN controller of any FortiGate security appliance, the FortiLAN Cloud provisioning and management portal, or a standalone FortiWLC controller.
What's the difference between FortiCare Premium and Elite support?
Both are annual FortiCare support subscriptions for this access point; Elite is the higher-priced tier, offered alongside Premium at the same renewal term.
What power does the U234F need?
It's powered over Ethernet using 802.3bt/at PoE, ships with a PoE injector with reset functionality, and draws up to 21 W maximum.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware Type | Outdoor AP |
|---|---|
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 2 Wi-Fi 5.0GHz band + 4 dual band Wi-Fi + 1 Single band 2.4GHz BLE/ZigBee |
| Antenna Type and Peak Antenna Gain | Directional patch Antenna |
| Frequency Bands (GHz) * | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 | 2.4 GHz a/b/g/n (2x2 2stream) (64 QAM) or 5.0 GHz (high band) a/b/g/n/ac/ax (2x2 2 stream) 20/40/80/160 MHz (64/256/1024 QAM) |
| Radio 2 | 5.0 GHz a/n/ac/ax (2x2 2 stream) 20/40/80/160 MHz (64/256/1024 QAM |
| Radio 3 | 2.4/5.0 GHz dual band b/g/n/ac (2x2 2 stream) 20/40 MHz (64 QAM) |
| Maximum Data Rate | Radio 1 up to 2,402 Mbps Radio 2 up to 2,402 Mbps Radio 3 up to 300 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45(802.2bt/at PoE) 1 x 10/100/1000 Base-T RJ45 (802.3af PoE PSE), 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 802.3bt PoE ships with PoE injector (reset functionality) |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Radio 1 2.4GHz 25 dBm / 316 mW (2 chains combined)* 5GHz 25 dBm / 316 mW (2 chains combined)* Radio 2 5GHz 25 dBm / 316 mW (2 chains combined)* Radio 3 2.4GHz 27 dBm / 501 mW (2 chains combined)* 5GHz 25 dBm / 316 mW (2 chains combined)* |
| Kensington Lock | No |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.11ax, 802.3bz |
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per Radio1 and Radio2 |
| Cellular Co-existence | Yes |
| LED Off Mode | No |
| Advanced 802.11 Features | Yes |
| OFDMA | Yes (UL and DL) |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS /Agile DFS | Yes |
Wireless monitoring
| Rogue Scan radio modes | Background and Dedicated |
|---|---|
| WIPS / WIDS radio modes | Background and Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
Dimensions
| Length x Width x Height (inches) | 12.45 x 8.59 x 1.66 inches (316.18 x 218.16 x 42.21 mm) |
|---|---|
| Weight | 2.66 lbs (1.207 kg) |
| Package (shipping) Weight | 5.86 lbs (3.6 kg) |
| Mounting Options | Wall/ Pole |
| Included Accessories | 1-2. Wall/ Pole bracket 3. POE adapter - PIN060-54PR 4. Power cable 5. Grounding cable 6. Mounting Kit (Pole straps; mounting bolts, screws; grounding screws) |
Environment
| Power Supply | 802.3bt/at (ships with passive PoE injector with build in reset switch) |
|---|---|
| Power Consumption (Maximum) | 21 W |
| Humidity | 10–90% non condensing |
| Operating / Storage Temperature | 22–140°F (-40 - 60°C) / -40–176°F (-40–80°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | >10 Years |
| Surge Protection Built In | Yes |
| IP Rating | IP67 |
| Hit-less PoE Failover | N/A |
Certifications
| Wi-Fi Alliance Certified | No |
|---|---|
| DFS | FCC, IC, CE, Taiwan |
Warranty
| Limited Lifetime Warranty | Yes |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-U234F-E |
