FC-10-PU432-247-02-12Fortinet FortiAP U432F
List PriceThis enterprise-class 802.11ax ruggedised indoor/outdoor AP carries three radios. As Fortinet’s top-of-the-line Wi-Fi 6 access point in this form factor, it adds OFDMA, a 2.5 Gigabit Ethernet port and a second Gigabit Ethernet port with PoE out. It can run dual 5 GHz bands for extra capacity while still covering 2.4 GHz clients, or dedicate a radio to full-time scanning; the integrated BLE radio supports beacon and locationing use cases.
It intelligently supports integrated security controllers (FortiGate) alongside cloud management options, running FortiGuard services at the edge.
Wi-Fi 6 technology with OFDMA improves client throughput and overall network efficiency, and the AP integrates with Fortinet’s Security Fabric for network-edge threat protection.
Key features

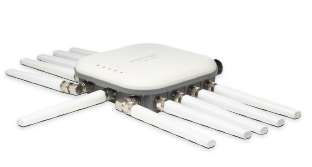

- 4x4 Wi-Fi 6 (802.11ax) ruggedised indoor/outdoor access point, IP67-rated
- Three radios — dual 5 GHz plus a scanning radio — with external antennas and an integrated BLE radio
- Up to 4,804 Mbps per radio with OFDMA (UL and DL), UL/DL MU-MIMO and Target Wake Time (TWT)
- Up to 16 simultaneous SSIDs (14 with background scanning enabled)
- WPA3, WPA2, 802.1X, MAC allow/block lists and captive portal authentication
- 802.3bt PoE by default, ships with a passive PoE injector with reset switch
- Wall/pole/sector-antenna mounting kit, external antennas and grounding cable included
- Managed via the integrated FortiGate WLAN controller, FortiLAN Cloud, or a standalone FortiWLC controller
Works with
- FortiGate firewalls — pair with a FortiGate to manage the AP through its integrated WLAN controller
- the Fortinet range
Frequently asked questions
How is the U432F managed?
Centrally, through the integrated WLAN controller of any FortiGate security appliance, the FortiLAN Cloud provisioning and management portal, or a standalone FortiWLC controller.
What's the difference between FortiCare Premium and Elite support?
Both are annual FortiCare support subscriptions for this access point; Elite is priced above Premium as the higher tier, and both are offered here for a 1-year term.
What power does the U432F need?
It's powered by 802.3bt PoE, ships with a passive PoE injector with reset switch, and draws up to 32 W (45 W with PSE output active).
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware Type | Outdoor AP |
|---|---|
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 11 |
| Antenna Type and Peak Antenna Gain | Dual band Dipole Omni Directional Peak Gain 5.5dBi for 2.4GHz and 7dBi for 5.0GHz |
| Frequency Bands (GHz) * | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 | 2.4 GHz a/b/g/n (4x4 4stream) (64 QAM) or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4 4 stream) 20/40/80/160 MHz (64/256/1024 QAM) |
| Radio 2 | 5.0 GHz a/b/g/n/ac/ax (4x4 4 stream) 20/40/80/160 MHz (64/256/1024 QAM) |
| Radio 3 | 2.4/5.0 GHz dual band b/g/n/ac (2x2 2 stream) 20/40 MHz (64 QAM) |
| Maximum Data Rate | Radio 1 up to 4,804 Mbps Radio 2 up to 4,804 Mbps Radio 3 up to 300 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces | 1x 100/1000/2500 Base-T RJ45(802.2bt PoE) , 1 x 10/100/1000 Base-T RJ45 (802.3af PSE OUT), 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | 802.3bt PoE default (ships with Passive PoE injector • Powered by 802.3at PoE - Operate in 4x4 mode with reduced Tx power Radio1/R2 17dBm • This product only supports PSE functionality when it is powered by PoE injector that ships with the product. |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Radio 1 2.4 GHz 29 dBm / 794 mW (4 chains combined)* 5.0 GHz 28 dBm / 630 mW (4 chains combined)* Radio 2 5.0 GHz 26 dBm / 400 mW (2 chains combined)* Radio 3 2.4 GHz 26 dBm / 400 mW (2 chains combined) 5.0 GHz 24 dBm / 251 mW (2 chains combined)* |
| Kensington Lock | No |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.11ax, 802.3bz |
| SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
| Per Radio Client Capacity | Up to 512 clients per Radio1 and Radio2 |
| Cellular Co-existence | Yes |
| LED Off Mode | No |
| Advanced 802.11 Features | Yes |
| OFDMA | Yes (UL and DL) |
| 2.4 GHz OFDMA | Yes |
| Spatial Reuse (BSS Coloring) | Yes |
| UL MU-MIMO | Yes |
| DL MU-MIMO | Yes |
| Enhanced Target Wake Time (TWT) | Yes |
| ZeroWait DFS /Agile DFS | Yes |
Wireless monitoring
| Rogue Scan radio modes | Background and Dedicated |
|---|---|
| WIPS / WIDS radio modes | Background and Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
Dimensions
| Length x Width x Height (inches) | 8.23 x 8.23 x 2.38 inches (209 x 209 x 60.5 mm) |
|---|---|
| Weight | 0 lb 8 oz (0.232 kg) |
| Package (shipping) Weight | 12 lb 9 oz (5.7 kg) |
| Mounting Options | Wall/ Pole |
| Included Accessories | 1-3. Wall/ Pole/ Sector Ant. bracket 4. POE adapter 5. Power cable - PIN060 6. Grounding cable 7. Mounting Kit (Pole straps; mounting bolts, screws; grounding screws) 8. External Ant.(2.4GHz; 5GHz; 2.4/5GHz) |
Environment
| Power Supply | 802.3bt (ships with passive PoE injector with build in reset switch) |
|---|---|
| Power Consumption (Maximum) | 32W max (without PSE) & 45W max (with PSE 12.99W) |
| Humidity | 10–90% non condensing |
| Operating / Storage Temperature | -22–140°F (-40 - 60°C) / -40–176°F (-40–80°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | No |
| Mean Time Between Failures | >10 Years |
| Surge Protection Built In | Yes |
| IP Rating | IP67 |
| Hit-less PoE Failover | N/A |
Certifications
| Wi-Fi Alliance Certified | No |
|---|---|
| DFS | CE |
Warranty
| Limited Lifetime Warranty | Yes |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-U432F-E |
