Fortinet
FC-10-P433F-247-02-12Fortinet FortiAP U433F
List PriceStandalone access points are simplest to manage centrally. FortiAP Cloud gives network administrators a single, intuitive interface to deploy, monitor, troubleshoot and optimise FortiAP-U units from anywhere.
The U433F can be managed through the FortiAP Cloud provisioning and management portal, the integrated WLAN controller on any FortiGate security appliance, or a dedicated FortiWLC controller.

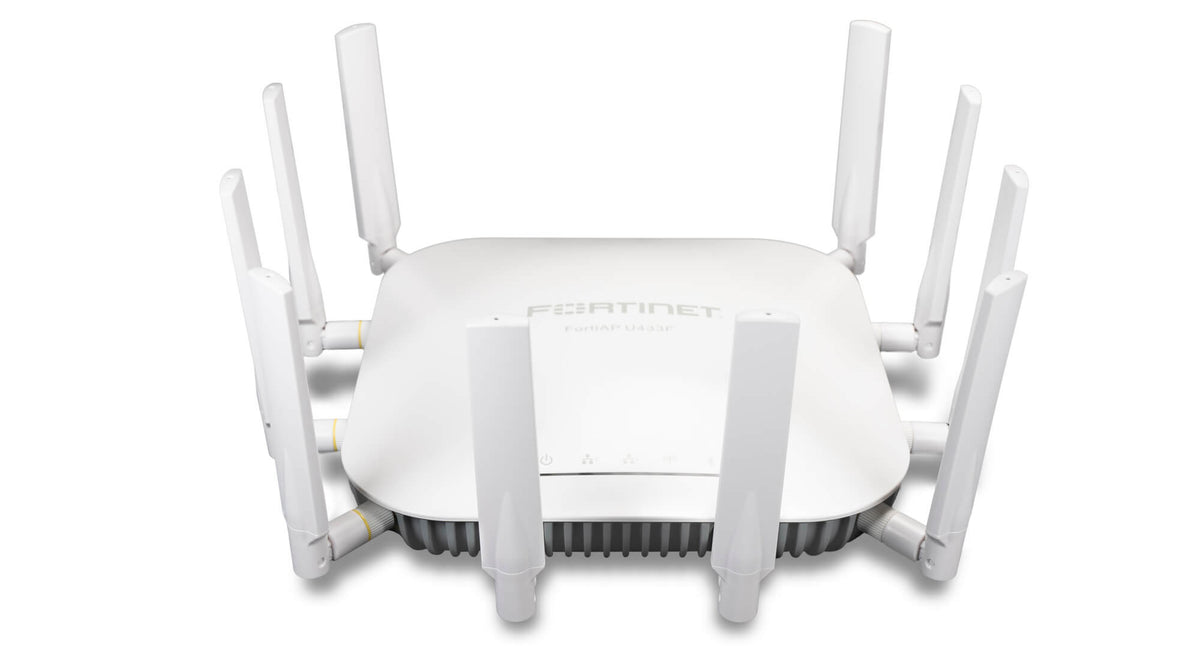

This enterprise-class 802.11ax indoor AP carries three radios plus OFDMA, a 2.5 Gigabit Ethernet port and a second Gigabit Ethernet port for PoE diversity. It can run dual 5 GHz bands for extra capacity while still covering 2.4 GHz clients, or dedicate a radio to full-time scanning. Unlike the internal-antenna U431F, the U433F uses five external RP-SMA dipole antennas; the integrated BLE radio supports beacon and locationing use cases.
The FortiAP-U family spans the performance range from branch to campus deployments, up to this fastest 4x4:4 Wi-Fi 6 model, all managed from the same Cloud, FortiOS or WLAN Controller options.
Key features
- 4x4 Wi-Fi 6 (802.11ax) indoor access point with three radios plus BT/BLE, external RP-SMA dipole antennas
- Dual 5 GHz radio operation for extra capacity, or dedicate a radio to full-time scanning
- Up to 4,804 Mbps per radio with OFDMA, MU-MIMO Wave 2, Transmit Beamforming (TxBF) and LDPC encoding
- 1x 2.5GE + 1x GE RJ45 ports for PoE diversity, plus USB-A and RS-232 serial
- Dual redundant PoE inputs (802.3at)
- Up to 16 simultaneous SSIDs (14 with background scanning enabled)
- WPA3, WPA2, 802.1X, MAC blacklist/whitelist and captive portal authentication
- Ceiling, T-Rail and wall mounting kit included, with 10 dipole antennas; Kensington lock point
- Managed via FortiAP Cloud, an integrated FortiGate WLAN controller, or FortiWLC
Works with
- FortiGate firewalls — pair with a FortiGate to manage the AP through its integrated WLAN controller
- the Fortinet range
Frequently asked questions
How is the U433F managed?
Centrally, through FortiAP Cloud's provisioning and management portal, the integrated WLAN controller of any FortiGate security appliance, or a dedicated FortiWLC controller.
What's the difference between FortiCare Premium and Elite support?
Both are annual FortiCare support subscriptions for this access point; Elite is priced above Premium as the higher tier, and both are offered here for a 1-year term.
What PoE does the U433F need?
It has dual redundant PoE power ports supporting IEEE 802.3at, and draws up to 24.5 W maximum; power can also be supplied via the SP-FAP200-PA or GPI-130 adapter.
Sizing a wireless deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Hardware Type | Indoor AP |
|---|---|
| Number of Radios | 3 + 1 BT/BLE |
| Number of Antennas | 10 External (RP-SMA) + 1 BT/BLE Internal |
| Antenna Type and Peak Gain | Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
| Radio 2 Capabilities | 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
| Radio 3 Capabilities | 2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) |
| Maximum Data Rate | Radio 1: up to 4,804 Mbps Radio 2: up to 4,804 Mbps Radio 3: up to 300 Mbps |
| Bluetooth Low Energy (BT/BLE) Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces | 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled) |
| Simultaneous SSIDs | 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power | Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)* Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)* |
| Kensington Lock | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
| SSID Types Supported | Local-Bridge, Mesh, & Tunnel |
| Per Radio Client Capacity | Up to 512 |
| Cellular Co-existence** | Yes |
| LED Off Mode | Yes |
Advanced 802.11 features
| 802.11ac MU-MIMO Wave 2 | Yes |
|---|---|
| Transmit Beam Forming (TxBF) | Yes |
| Low-Density Parity Check (LDPC) Encoding | Yes |
| Maximum Likelihood Demodulation (MLD) | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| OFMDA | Yes |
Wireless monitoring
| Rogue Scan Radio Modes | Background, Dedicated |
|---|---|
| WIPS / WIDS Radio Modes | Background, Dedicated (recommended) |
| Packet Sniffer Mode | Yes |
| Spectrum Analyzer | Yes |
Dimensions
| Length x Width x Height | 8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) |
|---|---|
| Weight | 1.0 lb (0.453 kg) |
| Package (shipping) Weight | 1.8 lbs (0.82 kg) |
| Mounting Options | Ceiling, T-Rail and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall, 10x dipole antennas |
Environment
| Power Supply | SP-FAP200-PA-XX, or GPI-130 |
|---|---|
| Power Consumption (Maximum) | 24.5 W |
| Humidity | 10–90% Non-Condensed 5–90% Condensed |
| Operating / Storage Temperature | 32–122°F (0–50°C) / -31–158°F (-35–70°C) |
| Directives | Low Voltage Directive • RoHS |
| UL2043 Plenum Material | Yes |
| Mean Time Between Failures | >30 Years |
| Hit-less PoE Failover | Yes (802.3at only) |
Certifications
| Wi-Fi Alliance Certified | No |
|---|
Warranty
| Limited Lifetime Warranty | Yes |
|---|
Product details
| Brand | Fortinet |
|---|---|
| Part number | FAP-U433F-E |
