Fortinet

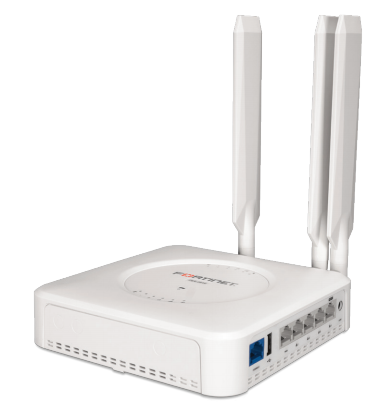

FC-10-F201E-247-02-12Fortinet FortiExtender 201E
List PriceEnterprises increasingly rely on wireless WAN not just as backup for wired connections, but as the primary link for small branch offices, retail pop-up stores, point-of-sale systems and kiosks. The Fortinet FortiExtender 201E is a 3G/4G LTE wireless WAN extender built to provide a reliable, stable connection for these use cases.
Integration with a FortiGate gives single pane of glass management of both wired and wireless WAN connections and their security, reducing the total cost of ownership of the WAN.
It can be sited indoors or outdoors, up to 100m from the FortiGate or network switch, to maximise 3G/4G LTE signal strength without lossy antenna cables or limited-strength USB modems, and can be managed from the FortiGate itself or from FortiExtender Cloud.
Key features
- Internal Sierra Wireless EM7455 modem — 4G LTE CAT-6, 3G UMTS/HSPA+/WCDMA
- Dual-SIM support with intelligent fail-over, Micro-SIM (3FF)
- 5× GE RJ45 ports, configurable as WAN or LAN
- 3× external SMA antennas plus a GPS/GNSS antenna port
- Powered over Ethernet — IEEE 802.3af (15.4W)
- Certified for the Verizon network
Works with
- Part of The Fortinet range
- Pairs with a FortiGate firewall for single pane of glass management of wired and wireless WAN, or manages via FortiExtender Cloud
Frequently asked questions
What is the FortiExtender 201E for?
It's a 3G/4G LTE wireless WAN extender, used as either a backup or a primary WAN connection for small branch offices, retail pop-up stores, point-of-sale systems and kiosks, managed via a connected FortiGate.
Does it support dual-SIM?
Yes — the 201E has dual-SIM support with intelligent fail-over, using Micro-SIM (3FF) cards, with an internal Sierra Wireless EM7455 CAT-6 LTE modem certified for the Verizon network.
What FortiCare and cloud options are available?
1 year FortiCare Premium Support is available, alongside FortiExtender Cloud License and Support in 1, 3 and 5 year terms for centralised hosted management.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware and System
| Modem Support | Internal (1x Modem) |
|---|---|
| Number of Antennas | 3 SMA External |
| Power over Ethernet (PoE) Powered | IEEE 802.3af (15.4 W) |
| Ethernet Ports | 5 GE RJ45 Ports (WAN + LAN) |
| GPS Antenna Port | Yes |
| Mounting Options | Wall Mount / Desktop |
| Type | Indoor |
Dimensions
| Height x Width x Length (inches) | 1.57 x 6.3 x 6.3 (not including antenna length) |
|---|---|
| Height x Width x Length (mm) | 40 x 160 x 160 (not including antenna length) |
| Weight | 1.2 lbs (0.55 kg) |
Environment
| Operating Temperature | 32–104°F (0–40°C) |
|---|---|
| Storage Temperature | -4–158°F (-20–70°C) |
| Humidity | 5–95% |
Certifications
| CB | IEC/EN 60950-1 |
|---|---|
| UL | UL/CSA 60950-1 |
| FCC | FCC Part 15 Subpart B and ICES-003 |
| CE | EMC 2014/30/EU (EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3) RED 2014/53/EU (EN 301 489-1, EN 301 489-52, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 303 413) LVD 2014/35/EU (IEC/EN 60950-1) RoHS2 Directive 2011/65/EU |
SIM and Modem Features
| Modem Model | Sierra Wireless EM7455 (4G LTE CAT-6) |
|---|---|
| SIM Size | Micro-SIM type 3FF |
| SIM Features | Dual-SIM support with intelligent fail-over algorithms, SIM security cover, IMEI printed at bottom of enclosure for ease of activation |
| Advanced Radio Technology | 2x2 MIMO — Enables industry leading data speeds; Receiver Equalization — improves performance in noisy and highly mobile environments; Receiver Diversity — improves performance at cell edges and in buildings |
| Carrier Certifications | Verizon |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FEX-201E |
