Fortinet

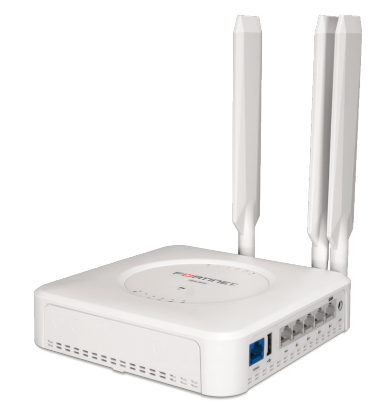

FEX-202F-AMFortinet FortiExtender 202F
List PriceThe Fortinet FortiExtender 202F doubles down on cellular resilience with two internal Dual SIM CAT7 LTE modems, giving branch and POS deployments up to four possible carrier SIM paths and far higher uptime than a single-modem extender.
Integration with Fortinet SD-WAN and FortiGate appliances secures internet edge breakouts over both modems with the same Web, Content and Device security controls used across the wider Security Fabric.
A single PoE cable (802.3af/at) powers the unit and its five configurable GbE ports, while six external SMA antennas and a GPS/GNSS port maximise signal strength across both modems without lossy antenna runs.
Key features
- Dual internal 3G/4G LTE CAT7 modems (2x modem, dual-SIM each) for North America carriers
- Up to 5X network reliability from dual-SIM plus dual-modem redundancy
- 5x GbE RJ45 ports, individually configurable as WAN or LAN
- Powered over a single Ethernet cable via 802.3af/at PoE (15.4W max)
- 6x external SMA antennas plus a dedicated GPS/GNSS antenna port
- Bluetooth Low Energy (10 dBm, 2.4GHz) for local setup
- Managed from FortiGate, FortiManager or the FortiExtender Cloud dashboard
Works with
Frequently asked questions
What is the FortiExtender 202F used for?
It's a dual-modem cellular WAN extender for sites that need maximum uptime — two independent LTE modems, each dual-SIM capable, back up a FortiGate's primary connection or serve as the main WAN path for fleet, POS or remote branch use.
How many SIMs and modems does it support?
Two internal CAT7 LTE modems, each with dual-SIM support, for up to four SIM profiles and automatic fail-over between them.
What FortiCare support is available?
FortiCare Premium support is available in 1, 3 and 5 year terms for the 202F.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware and System
| Modem Support | Internal (2x Modem) |
|---|---|
| Number of Antennas | 6 SMA External |
| Power over Ethernet (PoE) Powered | IEEE 802.3at (15.4 W) |
| Ethernet Ports | 5 GE RJ45 Ports (WAN + LAN) |
| Bluetooth | Maximum Transmit Power 10 dBm Frequency 2.4 GHz |
| GPS Antenna Port | Yes |
| Mounting Options | Wall Mount / Desktop |
| Type | Indoor |
Dimensions
| Height x Width x Length (inches) | 1.5 x 6.22 x 6.22 (not including antenna length) |
|---|---|
| Height x Width x Length (mm) | 38 x 158 x 158 (not including antenna length) |
| Weight | 0.90 lbs (0.41 kg) |
Environment
| Power Consumption (Max) | 9.40W |
|---|---|
| Storage Temperature | -4–158°F (-20–70°C) |
| Humidity | 5–95% |
Certifications
| FCC | FCC Part 15B, 15C, 2.1091 |
|---|---|
| IC | ICES-003, RSS-247, RSS-102 |
| CB | IEC/EN 62368-1 |
| UL | UL/CSA 62368-1 |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FEX-202F-AM |
