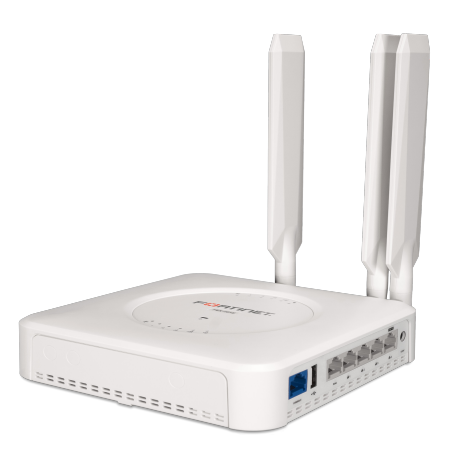

FC-10-X212F-247-02-12Fortinet FortiExtender 212F
List PriceThe Fortinet FortiExtender 212F offers scalable, cost-effective, resilient LTE and Ethernet connectivity, driven by Fortinet's Security-driven networking approach. It gives organisations business continuity and improved network availability while securing connectivity across wired broadband and cellular networks.
Integration with Fortinet SD-WAN and FortiGate appliances secures internet edge breakouts with a complete set of web, content and device security controls, going beyond what other industry solutions offer.
A single PoE cable delivers optimal LTE signal versus complex, lossy antenna cables or limited-strength USB modems, and its dual-modem, dual-SIM design offers up to 5x network reliability. It can be managed from the FortiManager, FortiGate or FortiExtender Cloud dashboard.
Key features
- Dual internal modems — Sierra Wireless EM7565, 4G LTE CAT-12, for Global Carriers
- Dual-SIM support with intelligent fail-over, Micro-SIM (3FF)
- 6× external SMA antennas plus a GPS antenna port
- 5× GE RJ45 ports (WAN + LAN)
- Powered over Ethernet — IEEE 802.3at (25.5W)
- Certified for Verizon, AT&T, T-Mobile and PTCRB networks
Works with
- Part of The Fortinet range
- Pairs with a FortiGate firewall for single pane of glass management via FortiGate and FortiManager, or manages via FortiExtender Cloud
Frequently asked questions
What is the FortiExtender 212F for?
It's a dual-modem 4G LTE wireless WAN extender, giving up to 5x network reliability over single-modem designs, for branch offices and sites needing resilient cellular WAN connectivity managed via a connected FortiGate.
Does it support dual-SIM?
Yes — the 212F has dual-SIM support with intelligent fail-over across its two internal Sierra Wireless EM7565 CAT-12 modems, using Micro-SIM (3FF) cards, certified for Verizon, AT&T, T-Mobile and PTCRB networks.
What FortiCare and cloud options are available?
1 year FortiCare Premium Support is available, alongside FortiExtender Cloud License and Support in 1, 3 and 5 year terms for centralised hosted management.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware and System
| Modem Support | Internal (2x Modem) |
|---|---|
| Number of Antennas | 6 SMA External |
| Power over Ethernet (PoE) Powered | IEEE 802.3at (25.5 W) |
| Ethernet Ports | 5 GE RJ45 Ports (WAN + LAN) |
Dimensions
| Height x Width x Length (inches) | 1.49 x 6.22 x 6.22 (not including antenna length) |
|---|---|
| Height x Width x Length (mm) | 38 x 158 x 158 (not including antenna length) |
| Weight | 0.90 lbs (0.41 kg) |
Environment
| Power Required | 12V/2A External Adapter/PoE(af/at) |
|---|---|
| Power Consumption (Average) | 7.55 W |
| Power Consumption (Max) | 9.40 W |
Certifications
| IC | ICES-003, RSS-247, RSS-102 |
|---|---|
| CB | (IEC/EN 60950-1, IEC/EN 62368-1) |
| UL | (UL/CSA 60950-1, UL/CSA 62368-1) |
| FCC | FCC Part 15 Subpart B and ICES-003 |
| CE | EMC 2014/30/EU (EN 55032, EN 55024, EN 55035 EN 61000-3-2/-3; EN 301 489-1/-17) RED 2014/53/EU (EN 300 328, EN 62311) LVD 2014/35/EU (EN 60950-1, EN 62368-1) |
Regional Compatibility and Internal Modem Specifications
| Regional Compatibility | Global Carriers |
|---|---|
| Modem Model | Sierra Wireless EM7565 (2x Modem) |
| 4G: LTE | CAT-12, Bands: 1,2,3,4,5,7,8,9,12,13,18,19,20,26,28,29,30,32,41,42,43,46,48,66 |
| 3G: UMTS/HSPA+ | Bands: 1,2,4,5,6,8,9,19 |
| 3G: WCDMA | Bands: 1,2,4,5,6,8,9,19 |
| Additional Ports | GPS antenna port |
| Connector Type | SMA LTE1 (MAIN, AUX, GPS), LTE2 (MAIN, AUX, GPS) |
| Module Certifications | FCC, IC, CE, GCF, PTCRB |
| Diversity | Yes |
| MIMO | Yes |
| GNSS Bias | Yes |
| Advanced Radio Technology | 2x2 MIMO — Enables industry leading data speeds; Receiver Equalization — improves performance in noisy and highly mobile environments; Receiver Diversity — improves performance at cell edges and in buildings |
| SIM Features | Dual-SIM support with intelligent fail-over algorithms; SIM Size: Micro-SIM type 3FF; SIM Security Cover; IMEI printed at bottom of enclosure for ease of activation |
| Carrier Certifications | Verizon, AT&T, PTCRB, T-Mobile |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FEX-212F |
