Fortinet
FS-424E-FIBERFortinet FortiSwitch 424E-FIBER

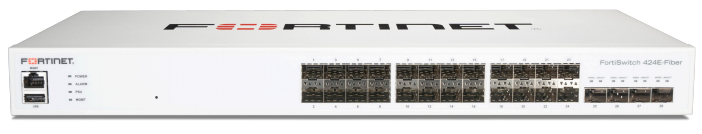

List PriceThe Fortinet FortiSwitch 424E-FIBER is an all-fiber Layer 2/3 secure access switch with 24 Gigabit SFP ports and 4x 10 Gigabit SFP+ uplinks (the SFP+ ports also accept 1GE SFP optics), built for fiber-connected wiring closets, data center aggregation and Top-of-Rack deployments that need high port density without copper cabling.
Tightly integrated into the Fortinet Security Fabric via FortiLink, the 424E-FIBER is managed directly from the familiar FortiGate interface, giving complete visibility and control of users and devices on the network regardless of how they connect, and making it a good fit for SD-Branch deployments that range from desktop access to data center aggregation.
FortiLink is Fortinet's proprietary management protocol that lets a FortiGate Next-Generation Firewall seamlessly manage any FortiSwitch, reducing complexity and management cost as network security and access-layer functions are configured through a single console, with centralized, role-based policy management.
Key features
- 24x GE SFP ports plus 4x 10GE SFP+ uplinks (SFP+ ports also accept 1GE SFP optics)
- 1 dedicated 10/100/1000 management port and an RJ-45 serial console port
- 128 Gbps switching capacity at 204 Mpps, with 32K MAC address storage and 4K VLANs supported
- 4 MB packet buffers, 1 GB DDR4 DRAM and 256 MB flash
- Managed directly from FortiGate via FortiLink, with centralized VLAN configuration and software upgrade of switches
- 1 RU rack-mount form factor with built-in redundant AC power supply
- Limited lifetime* warranty on all models
Works with
Frequently asked questions
How is the FortiSwitch 424E-FIBER managed?
Directly from the FortiGate interface over FortiLink, giving a single console for wired and wireless security and access-layer policy. A single FortiGate can manage 8 to 300 switches depending on the model.
What's the difference between FortiCare Premium and Elite support?
Both are paid support tiers for the 424E-FIBER, available in 1, 3 or 5 year terms. Elite is priced above Premium at every term length, reflecting an enhanced service level; full SLA details are confirmed at quotation.
Does the 424E-FIBER support Power over Ethernet?
No. As an all-fiber switch with SFP and SFP+ ports rather than RJ45 copper ports, the 424E-FIBER has no PoE output.
Sizing a network deployment? Call 0333 242 1314 or email sales@clisecure.com.
Hardware
| Total network interfaces | 24x GE SFP and 4x 10GE SFP+ ports (SFP+ ports also compatible with 1GE SFP) |
|---|---|
| Dedicated management port | 1x 10/100/1000 |
| Serial console port | 1x RJ-45 |
| Form factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) ports | None |
| Mean time between failures | > 10 years |
Switching performance
| Switching capacity | 128 Gbps |
|---|---|
| Packets per second | 204 Mpps |
| MAC address storage | 32 K |
| Network latency | < 1µs |
| VLANs supported | 4 K |
| Link aggregation group size | 8 |
| Total link aggregation groups | Up to number of ports |
| Packet buffers | 4 MB |
| DRAM | 1 GB DDR4 |
| Flash | 256 MB |
Dimensions
| Height x width x length | 1.73 x 10.12 x 17.3 in (44 x 250 x 440 mm) |
|---|---|
| Weight | 5.62 lbs (2.55 kg) |
Environment
| Power required | 100–240V AC, 50/60 Hz |
|---|---|
| Power supply | AC built in |
| Redundant power | Redundant AC |
| Power consumption (average / maximum) | 36 W / 38 W |
| Heat dissipation | 132.5 BTU/h |
| Operating temperature | 32–113°F (0–45°C) |
| Storage temperature | -4–158°F (-20–70°C) |
| Humidity | 5–95% non-condensing |
Certifications and warranty
| Certification and compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|---|
| Warranty | Limited lifetime* warranty on all models |
Product details
| Brand | Fortinet |
|---|---|
| Part number | FS-424E-FIBER |
