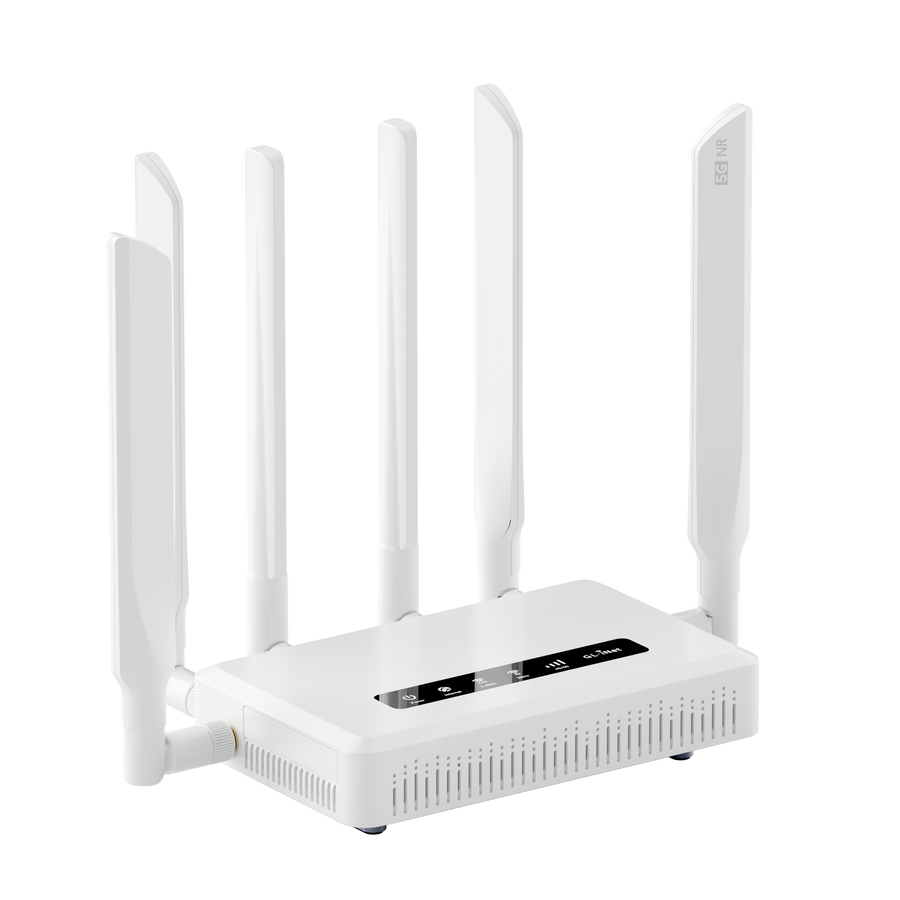

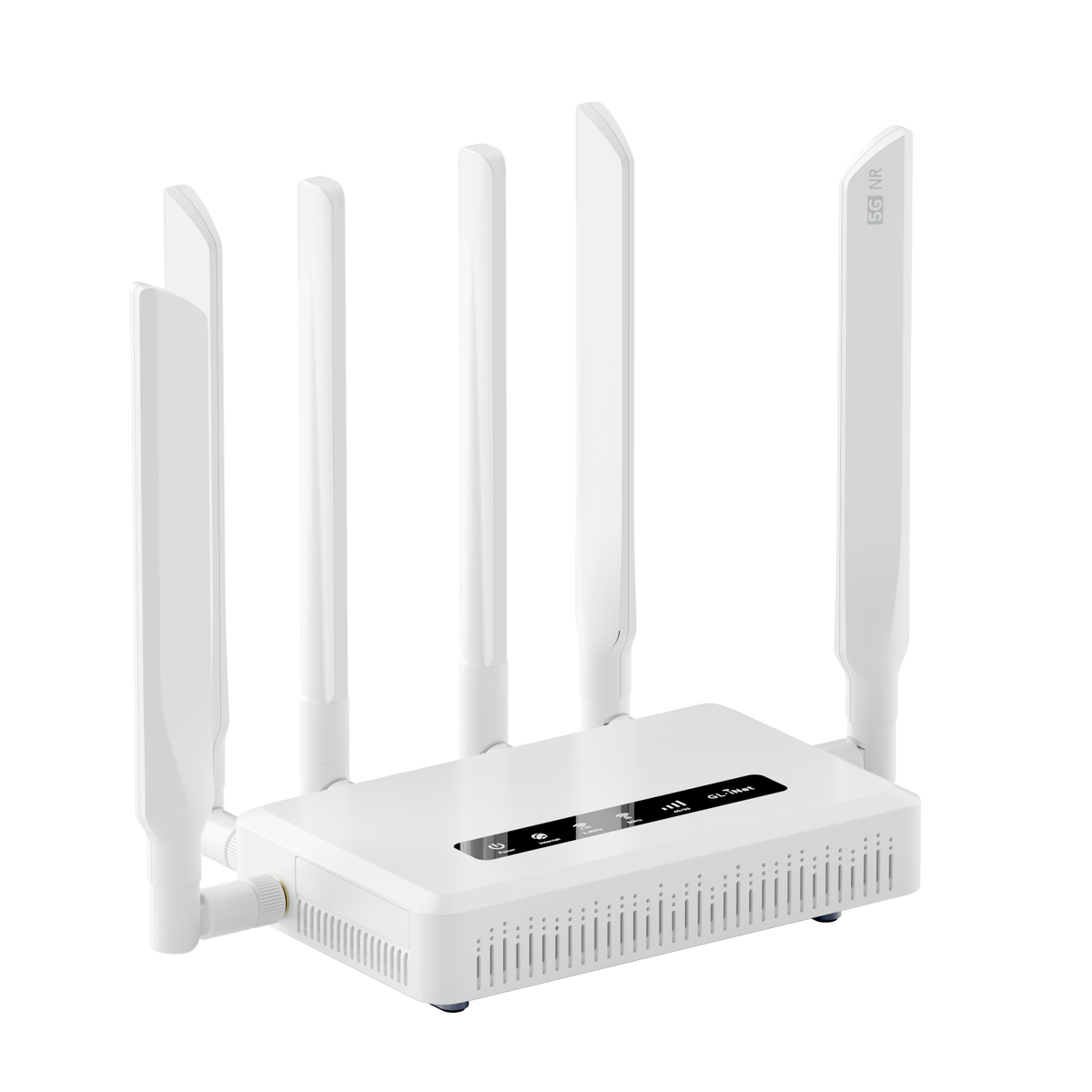

GL.iNet Spitz AX (GL-X3000) Wi-Fi 6 5G Cellular Gateway

When wired broadband is patchy or simply not available, the Spitz AX (GL-X3000) keeps a site online over mobile networks instead. It is a Wi-Fi 6 cellular gateway built for reliable connectivity in remote locations and high-speed internet in urban areas, with six external antennas for long-range reception and dual SIM slots so you can run whichever network has the stronger signal.

Its Multi-WAN engine uses Ethernet, cellular, repeater and tethering connections at the same time, with load-balancing to spread traffic by custom proportion and failover that switches to the next connection automatically if the primary link fails. Inside the building, Wi-Fi 6 delivers up to 574 Mbps on 2.4 GHz and 2,402 Mbps on 5 GHz, and DFS approval in the US, CA, EU and UK opens extra 5 GHz channels in congested areas.

Security is built in rather than bolted on: OpenVPN and WireGuard come pre-installed with support for 30+ VPN services, encrypting traffic for every connected device at up to 300 Mbps over WireGuard and 150 Mbps over OpenVPN. AdGuard Home, DNS over TLS/HTTPS and GL.iNet's GoodCloud remote management round out a platform that runs on OpenWrt 21.02 with more than 5,000 ready-made plug-ins.

Key features

• 5G NR dual-SIM gateway — RM520N-GL module with wide NSA/SA band support, plus 4G LTE and WCDMA fallback for dependable coverage.
• Six external antennas — long-range reception, with the option to connect an extended GPS antenna or wired dome antenna for extra stability in remote locations.
• Multi-WAN with load-balancing and failover — combine Ethernet, cellular, repeater and tethering, and switch automatically when a link goes down.
• Fast, flexible VPN — WireGuard up to 300 Mbps and OpenVPN up to 150 Mbps, 30+ supported providers, VPN server hosting and VPN cascading on the same device.
• Wi-Fi 6 performance — 574 Mbps (2.4 GHz) + 2,402 Mbps (5 GHz), with DFS certification in the US, CA, EU and UK.
• Ad and tracker blocking — AdGuard Home ready on the router, with DNS over TLS and DNS over HTTPS to prevent man-in-the-middle attacks.
• Network storage — plug in a USB drive to share files over SMB or WebDAV across your network.
• OpenWrt 21.02 + GoodCloud — 5,000+ plug-ins, remote access, batch device management, firmware updates and usage monitoring.
• eSIM compatible — works with GL.iNet's eSIM solution (currently requires pairing a physical eSIM card with the firmware).

Works with

• All routers
• The networking range
• Business SIM cards

Frequently asked questions

Can I use two SIM cards in the Spitz AX?

Yes. The Spitz AX has two SIM slots on a single modem, so you can select whichever ISP has the stronger connection at your location and switch between data services in a snap — useful on road trips and at sites where one network is unreliable.

What happens if my main internet connection fails?

The Spitz AX supports network failover with configurable priorities across its connection methods (Ethernet, cellular, repeater, tethering). If the primary connection fails, the router automatically switches to the next method without interruption.

How fast is the VPN?

WireGuard runs at up to 300 Mbps and OpenVPN at up to 150 Mbps in client mode (tested on a local network; real-world speeds depend on your configuration, and speeds are lower when the device runs as a server).

Is it suitable for an RV or rural property?

Yes — it is designed for exactly that. GL.iNet has partnered with leading RV antenna manufacturers, the router can mount to an RV's interior walls, and the six antennas plus Multi-WAN keep a country house or vehicle connected over long ranges.

Does it support eSIM?

The Spitz AX is compatible with GL.iNet's eSIM solution. The feature currently requires pairing a physical eSIM card with the firmware; integrated eSIM chips are available for bulk orders only.
