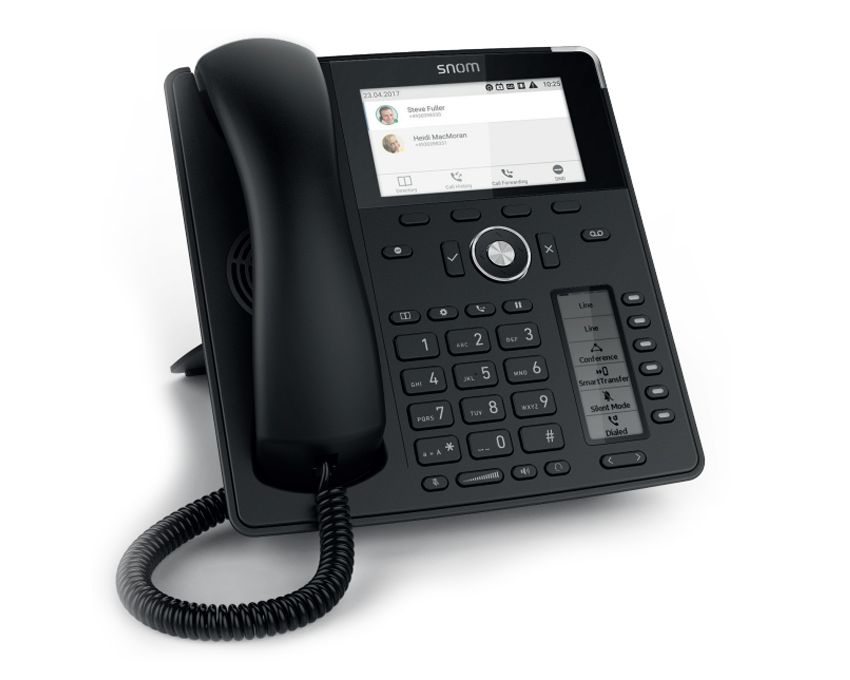

Snom D785 VoIP Phone - Black

• Up to 24 BLF keys (6 physical)
• High-resolution colour display
• 6 (24) configurable self-labeling multi-colour LED keys
• USB port
• Bluetooth connectivity
• Elegant design
• High-resolution 4.3" TFT-colour display
• Dedicated displays for extension monitoring
• Improved graphical user interface
• Wall mountable
• Wideband hands-free talking
• Digital Signal Processor (DSP) ehanced audio quality
• 2-port 1-Gigabit Ethernet switch (RJ45) IEEE 802.3
• Power over Ethernet IEEEaf, Class 3
• USB headset ready
• D7 Expansion Module ready
• Support for USB WiFi stick
• Electronic Hook Switch (EHS) support for wireless headsets
• Built-in Bluetooth compatibility
• 12 SIP identities / accounts
• XML browser
• Call lists for dialed, received and missed calls
• Local directory with 10000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP PBX platforms
• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold
• Handling of up to 4 simultaneous calls
• Blind and attended transfer
• Call forwarding 3-way conferencing on the phone
• Extension monitoring, call pickup
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)
• Codecs
• G711 A-Law, µ-law
• G.722 (wideband)
• G.726, G.729AB, GSM 6.10 (FR)
• Built-in assignable ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
• Configurable through web interface
• DHCP Options 66/67
• Snom Redirection Service
• Remote management via TR-069 / TR-11
• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6
• Localisation (language, time, dial tone)
• Red LED for call indication /message waiting
• 4 context-sensitive keys
• 6 programmable line / function keys with multicolour LEDs
• Volume key
• 5-way navigation key
• OK and Cancel keys
• Menu-driven user interface
• 802.1X authentication and EAPOL
• Transport layer security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS server/client
• Password-protected web interface
• VPN-support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR
• 190 x 205 x 200/220 mm (LxWxD) with food stand
• Weight (approx.) device 750 g, footstand 140g
• Input voltage (5Vdc) (SELV)
• Hearing-aid compatible (HAC) handset
• 1x USB 2.0 host port, Type A, Hi/Full/Low-Speed
• Included delivery Phone unit
• Footstand
• Handset with cord
• Ethernet cable
• Quick Start Guide
• CE Mark
• FCC Class B
• Safety IEC 60950, CB

• Dual-angle footstand: 46° and 28°
• Provisioning: Automatic loading of settings via HTTP/HTTPS/TFTP
• Dedicated keys for: Message; DND, Directory, Menu, Transfer; Hold, Page switch
• Audio keys with LED indicator: Mute, Speakerphone, Headset
• Dimensions (approx): 230 x 205 x 90 mm (LxWxD) w/o foot stand
• Power supply: PoE or 5Vdc power adapter, 10 Watts
• Handset: 4P4C
• Headset: 4P4C; 4pin for Snom EHS Advanced
• Environmental conditions: Ambient temperature: 0°C to 35°C (32°F to 95°F)
• Storage temperature: -10°C to 45°C (14°F to 113°F)
• Humidity: 5% to 95% (non condensing)
• Colour: Black
• Warranty: 2 Years

Overview

The Snom D785 is an elegantly designed VoIP phone that features a large high-resolution colour display and a convenient second screen for dynamic contact management. The Snom D785 also features integrated Bluetooth and possesses all the functions necessary to fulfill even the most demanding requirements.

Featuring an integrated Digital Signal Processor (DSP), the snom D785 has unprecedented HD audio quality, combined with a large high-resolution colour display, perfect for any working day. The well-designed user interface and second screen make using this telephone more intuitive than ever.

Thanks to the second integrated display many applications can be managed quickly and easily. The D785 allows you to set up 24 one-touch keys to manage group calls and speed dial/function keys by displaying all information dynamically.

Part number: D785 · Brand: Snom
