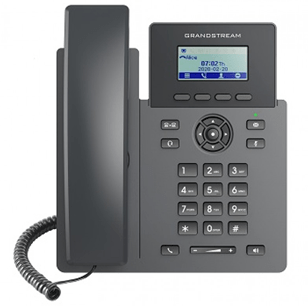

Grandstream GRP2601P Carrier-Grade IP Phone

The Grandstream GRP2601P is the entry-level GRP desk phone with Power over Ethernet built in. It is the same two-line, two-account handset as the plain GRP2601 — the difference is that it draws its power from the switch port rather than from a plug under the desk.

At the volumes this phone is bought in, that difference matters more than the specification does. One cable per position instead of two means no adapter to lose, no spare socket to find and no wall wart to be kicked out by a cleaner. On a hundred-desk rollout it is a hundred fewer things to unpack.

The quiet advantage is resilience. A mains-powered phone estate needs a UPS at every desk to survive a power cut. A PoE estate needs one UPS in the comms cabinet — put the switch on it and every phone in the building stays up.

Key features

• Integrated PoE, IEEE 802.3af — powered from the switch, no mains adapter needed
• 2 SIP accounts across 2 lines — a direct dial and a shared group number on one handset
• 2.21-inch 132 × 48 backlit LCD — caller ID, status and menus without clutter
• Two dual-colour line keys — see at a glance which line is ringing, active or held
• Four programmable XML soft keys — context-sensitive, following the call state
• Full-duplex HD speakerphone — both parties can talk at once without clipping

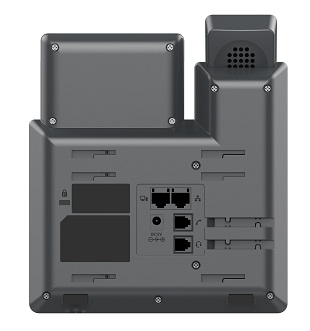

• Dual 10/100 Ethernet ports — one network drop feeds the phone and the PC behind it
• RJ9 headset jack with EHS — Plantronics, Jabra and Sennheiser hook switch support
• Secure boot and dual firmware images — safe remote upgrades across a large estate
• GDMS zero-touch provisioning — configure a batch centrally, ship them to site sealed

Works with

• Grandstream GRP2601 — the same phone with a mains adapter instead of PoE
• Grandstream GRP2601W — the Wi-Fi version, for desks with no network cable
• Grandstream GRP2602P — the same PoE phone with four SIP accounts
• Grandstream GRP2603P — three lines, Gigabit ports and a larger display

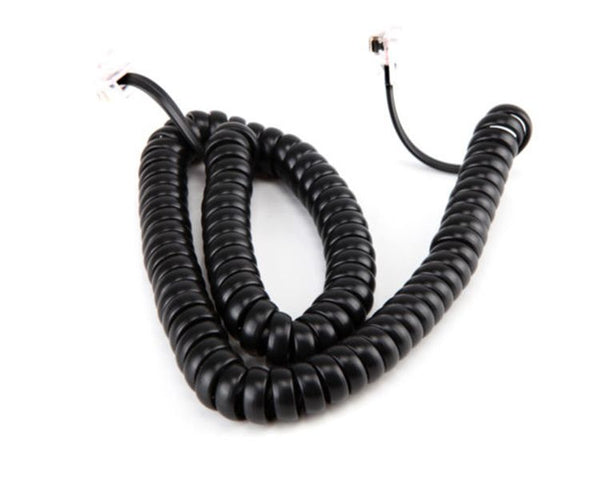

• Replacement curly cord — fits the whole GRP range
• Headsets — EHS and USB options for high-volume callers
• PoE injectors and switches — if the desk has no PoE at the other end
• All Grandstream IP phones

Frequently asked questions

Does it come with a power supply?

No — it is powered over Ethernet, which is the whole point of the P variant. If the switch port does not supply PoE, add an injector or order the plain GRP2601 with its mains adapter instead.

How much power does it draw from the switch?

It is an 802.3af Class 1 device, so under 4W. A modest 24-port PoE switch will carry a full floor of these without coming near its power budget.

Can I plug a PC into the phone?

Yes. There are two 10/100 ports, so one drop feeds both. Note the PC port does not pass PoE onward — the computer still needs its own power.

Is 10/100 a problem for the PC behind it?

It can be. Voice never needs more than 10/100, but a PC sharing that drop is capped at 100 Mbps. If that matters, look at the GRP2602G or GRP2603P, which have Gigabit ports.

How is it different from the GRP2602P?

Accounts. The GRP2601P carries two SIP accounts, the GRP2602P four. Both are two-line phones with the same body, ports and PoE. If nobody will ever register more than two numbers, the 2601P is the cheaper answer.

Can I provision hundreds of these remotely?

Yes. GDMS and TR-069 with encrypted provisioning and secure boot are what make the GRP range workable at estate scale — the phones can be configured before they are unboxed.

Rolling out desk phones? Call 0333 242 1314 or email sales@clisecure.com and we will check the model, the PoE budget and the provisioning before you order.
