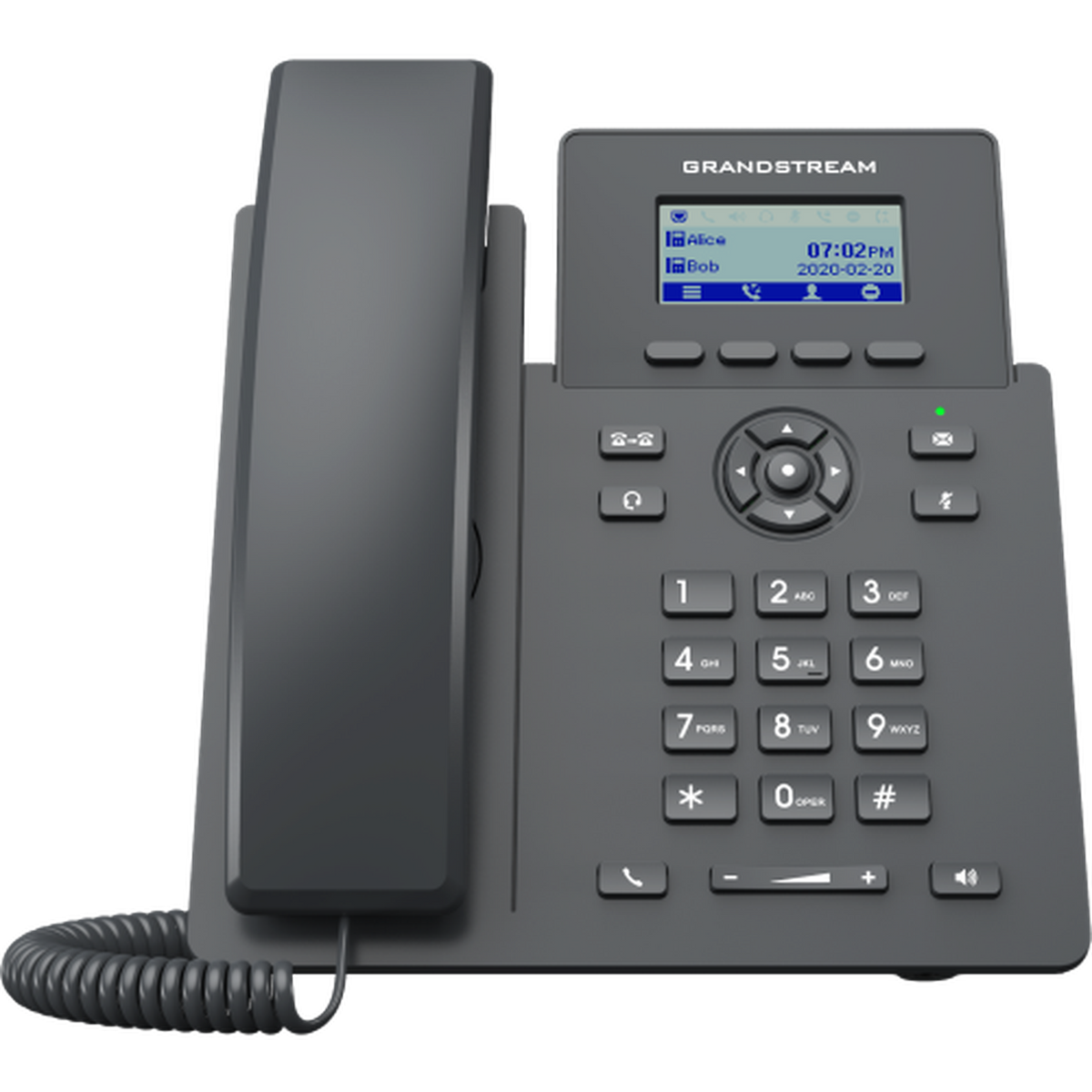

Grandstream GRP2601 Essential IP Phone

Key features

• Two SIP accounts across two lines — run a direct dial and a shared group number on the same phone
• 2.41-inch 132 × 48 LCD — enough space for caller ID, status and menu navigation without clutter
• 5-way audio conferencing — pull colleagues into a call without booking a bridge

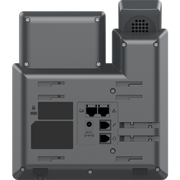

• Dual 10/100 Ethernet ports — daisy-chain a desktop PC and save a network drop per desk
• Four programmable soft keys — XML context-sensitive keys that change with what the phone is doing
• Eight dedicated function keys — message, transfer, headset, mute, redial, speakerphone and volume always in the same place
• HD wideband audio — G.722 and Opus support for noticeably clearer speech than legacy narrowband
• RJ9 headset jack with EHS — works with Plantronics, Jabra and Sennheiser electronic hook switch headsets
• Secure boot and dual firmware images — a failed upgrade will not leave a desk without a phone
• GDMS cloud provisioning — stage, configure and update whole fleets remotely

Technical specification

Telephony

• 2 SIP accounts, 2 lines
• 5-way audio conferencing
• Codecs: G.711µ/a-law, G.722 (wideband), G.723.1, G.726, G.729A/B, iLBC, Opus
• In-band and out-of-band DTMF

Display and controls

• 132 × 48 pixel, 2.41-inch backlit LCD
• 4 XML programmable context-sensitive soft keys
• 5 navigation and menu keys
• 8 dedicated function keys

Network

• Dual switched auto-negotiating 10/100 Mbps Ethernet ports
• Integrated PoE on the GRP2601P variant only
• Wi-Fi 802.11 b/g/n/ax 2.4GHz on the GRP2601W variant only

Audio and headset

• HD handset and full-duplex speakerphone
• RJ9 headset jack with EHS for Plantronics, Jabra and Sennheiser

Power and physical

• Universal power supply, 100–240VAC input, +5VDC 600mA output
• Dimensions: 208 × 180 × 63.4 mm with handset
• Weight: approximately 650g
• Desk stand at 45°; wall mount bracket sold separately

Security and management

• Secure boot, dual firmware images, encrypted data storage
• SHA-256 and SHA-512 authentication, SRTP and TLS
• Provisioning via GDMS, TR-069 or encrypted XML configuration file
• Multi-language menus including English, French, German, Italian, Spanish, Portuguese and Russian

Datasheet

Download the official Grandstream GRP2601 datasheet (PDF)

Works with

• PSU for GRP260x — the mains adapter this model needs if you are not using the PoE variant
• Replacement curly cord — spare handset cord for the whole GRP range
• Grandstream GRP2603 — step up to 3 lines, 6 SIP accounts and Gigabit ports
• Grandstream HT812 ATA — keep a fax or door phone alive on the same SIP platform
• All Grandstream IP phones
• IP PBX solutions — register the GRP2601 to an on-site or cloud platform
• Grandstream UCM6302 IP PBX — a compact on-site UCM to register the GRP2601 to

Frequently asked questions

Does the GRP2601 support Power over Ethernet?

Not this model. The standard GRP2601 is powered by its included 5VDC adapter. If the desk has no spare socket, order the GRP2601P, which is the same phone with integrated 802.3af PoE.

Can I plug my computer into the phone?

Yes. The GRP2601 has two switched 10/100 Ethernet ports, so the phone takes the wall drop and the PC connects through the second port. Bear in mind this caps that desk at 100 Mbps.

How many people can join a conference on the handset?

The GRP2601 supports 5-way audio conferencing, so you can add several parties without involving the PBX conference bridge.

Will it work with my existing headsets?

The RJ9 jack supports electronic hook switch operation with Plantronics, Jabra and Sennheiser models, so you can answer and end calls from the headset itself.

Is it suitable for a large rollout?

Yes. GDMS and TR-069 provisioning with encrypted XML configuration files make the GRP2601 straightforward to deploy in volume, which is why it is popular with hosted voice providers.

Not sure whether you need the PoE or Wi-Fi variant? Call 0333 242 1314 or email sales@clisecure.com and we will spec the right version for your site.
