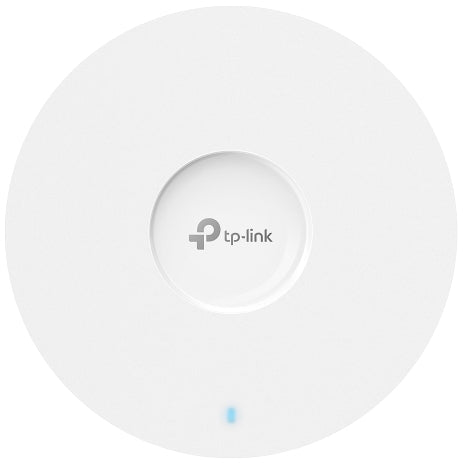

TP-Link Omada EAP673 HD Ceiling Access Point

The EAP673 pushes the Omada ceiling range to AX5400: 574 Mbps on 2.4 GHz plus a substantial 4804 Mbps on 5 GHz, with a 160 MHz channel doubling per-stream data at peak times. It suits offices and venues where a smaller number of well-placed APs must each carry heavy 5 GHz traffic.

It powers over 802.3at PoE+ from a switch such as the Omada SG2210P (DC adapter not included), and integrates into Omada SDN with Zero-Touch Provisioning, seamless roaming and Omada Mesh — an OC200 controller ties a multi-AP site together. If client density matters more than raw 5 GHz throughput, compare the EAP660 HD with its 2.5 Gbps uplink.

Key features

• AX5400 Wi-Fi 6 — 574 Mbps (2.4 GHz) + 4804 Mbps (5 GHz).
• 160 MHz channel — double the data on a single stream at peak times.
• Omada SDN integration — centralised cloud management and ZTP.
• Seamless roaming keeps calls and streams alive between APs.
• Omada Mesh for wireless backhaul where cabling is impractical.
• 802.3at PoE+ powered — clean single-cable ceiling installs.

Works with

• TP-Link Omada SG2210P — 802.3at PoE+ switch to power it
• TP-Link Omada EAP660 HD — high-density sibling with 2.5G uplink
• TP-Link Omada OC200 controller — centralised management
• All wireless access points
• All networking

Frequently asked questions

Is a power supply included?

No — power it over 802.3at PoE+ from a switch or injector. A DC adapter is available separately but is not in the box.

Does it need an Omada controller?

No — it runs standalone. Adopting it into Omada SDN adds Zero-Touch Provisioning, centralised management and site-wide roaming, worthwhile from a handful of APs upward.

EAP673 or EAP653?

Both are slim Omada ceiling APs; the EAP673 doubles the 5 GHz rate to 4804 Mbps. Choose it where per-AP throughput is the priority, the EAP653 where budget per room wins.

Upgrading to high-throughput Wi-Fi 6? Call 0333 242 1314 or email sales@clisecure.com and we will size the switches, access points and PoE budget before you order.
