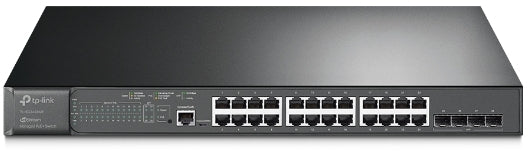

TP-Link Omada SG3428MP L2+ PoE Switch

The TP-Link Omada SG3428MP (TL-SG3428MP) is a 24-port L2+ PoE switch with the budget to back it up: 384 W shared across twenty-four Gigabit 802.3af/at PoE+ ports means high-draw access points and PTZ cameras on most ports at once, not just on paper. Four Gigabit SFP slots handle uplinks and aggregation.

The L2+ tier adds operational depth beyond the smart range: OAM and DDM for link and optical diagnostics, and ERPS for rapid protection and recovery in ring topologies — valuable for campus and multi-building networks. Management is classic Omada: centralised cloud control via the web or Omada app, or standalone via web, CLI, SNMP and RMON, with static routing, VLAN, ACL, QoS and IGMP Snooping throughout, in a rackmountable metal chassis.

Add 10G uplinks with the SG3428XMP, or drop to the smart-tier SG2428P if 250 W and standard features are enough. Port-side it feeds APs such as the EAP653 all day long.

Key features

• Twenty-four Gigabit PoE+ ports — up to 30 W each for 802.3af/at devices.
• Big 384 W PoE budget — high-power devices across the port count.
• Four Gigabit SFP slots for fibre uplinks and aggregation.
• ERPS ring protection — rapid recovery in ring topologies.
• OAM and DDM for link and optical-module diagnostics.
• Omada SDN integration — cloud management via web or app, or standalone via web/CLI/SNMP/RMON.
• Static routing, VLAN, ACL, QoS, IGMP Snooping in a rack-mountable metal chassis.

Works with

• TP-Link Omada SG3428XMP — same switch with 10G SFP+ uplinks
• TP-Link Omada SG2428P — smart-tier 24-port PoE alternative
• TP-Link EAP653 — Wi-Fi 6 ceiling AP it powers over PoE
• All switches
• All networking

Frequently asked questions

SG3428MP or SG2428P?

Both are 24-port Gigabit PoE+ with 4 SFP slots. The SG3428MP raises the budget from 250 W to 384 W and adds L2+ features — OAM, DDM and ERPS ring protection. Choose it for high-draw estates or ring topologies.

Can every port draw 30 W?

Each port supplies up to 30 W and the shared budget is 384 W — enough for well over half the ports at absolute maximum, and effectively all ports at typical AP/camera draw.

Do I need an Omada controller?

No — standalone management via web, CLI, SNMP or RMON is fully supported. A controller adds cloud access and one dashboard across the estate.

What is ERPS for?

Ethernet Ring Protection Switching lets you cable switches in a resilient ring — if one link fails, traffic recovers rapidly over the other path. Useful across campuses and between buildings.
