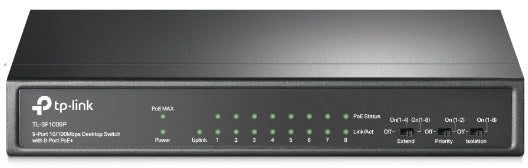

TP-Link SF1009P 9 Port PoE Switch

The TP-Link SF1009P packs eight PoE+ ports plus an uplink into a nine-port unmanaged switch — the go-to model in the SF family when a full set of cameras or phones needs powering from one box. Each PoE+ port supplies up to 30 W to IEEE 802.3af/at compliant devices, drawing on a 65 W total budget.

It keeps the surveillance-friendly extras of its smaller siblings and adds one more: alongside Extend Mode (up to 250 m runs), Priority Mode (ports 1–2) and PoE Auto Recovery, Isolation Mode separates client traffic at the flick of a switch for extra security and performance between connected devices.

For fewer powered ports, see the SF1008P; for Gigabit speeds with eight PoE ports, the SG1210MP is the natural upgrade.

Key features

• Eight PoE+ ports — data and power on one cable for 802.3af/at devices.
• Up to 30 W per port, 65 W total — budget for a spread of cameras and phones.
• Extend Mode — up to 250 m of data and power for distant cameras.
• Priority Mode on ports 1–2 protects sensitive feeds under load.
• Isolation Mode — one-click client traffic separation for security and performance.
• PoE Auto Recovery automatically reboots dropped or unresponsive powered devices.
• Plug and play — no configuration or installation required.

Works with

• TP-Link SF1008P — smaller sibling with four PoE+ ports
• TP-Link SG1210MP — Gigabit step-up with 8 PoE ports
• TP-Link EAP225 — access point it can power over PoE
• All switches
• All networking

Frequently asked questions

Can all eight PoE ports run at 30 W?

Each port can deliver up to 30 W, but the shared budget is 65 W across all PoE ports — typical cameras and phones draw far less, so eight modest devices fit comfortably. Total up your devices' real draw when planning.

What does Isolation Mode do?

One click separates traffic between client ports, so connected devices can reach the uplink but not each other — useful for security and for keeping chatty devices from affecting neighbours.

Do I need to configure it?

No — it is an unmanaged switch. All modes are selected on the hardware; there is no software to install or maintain.

Is it suitable for CCTV?

Very — Extend Mode reaches distant cameras up to 250 m away, and PoE Auto Recovery reboots hung cameras without a site visit.
