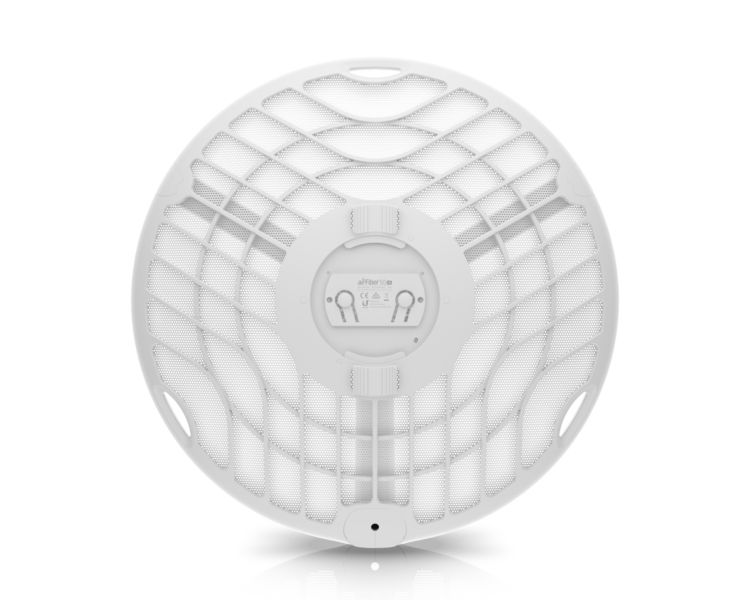

AF60-LRUbiquiti airFiber AF60-LR 60 GHz Long Range Radio System
The Ubiquiti airFiber AF60-LR 60 GHz Long Range Radio System is a genuine Ubiquiti product, supplied new and boxed through official UK distribution. It provides the network backbone that cameras, phones and business devices run on.
Need help choosing or pricing a full system? Call 0333 242 1314 or email sales@clisecure.com.
- Low-Interference 60 GHz Spectrum
- Integrated GPS
- Long Range, up to 12 km
- Precision Alignment Mount Included
- link.ui.com Planning Support
- Quick Setup Using the *UISP™ App via Bluetoo
- Maximum Throughput:1.8 Gbps
- Maximum Range:12 km
- OS:airOS®
- Modes:PtP Only
- Dimensions: 413 x 413 x 360 mm (16.3 x 16.4x 14.2")
- Weight: - Without Mount: 1.5 kg (3.3 lb) - With Mount: 2 .7 kg (6 lb)
- Enclosure: Aluminum, UV-stabilised Polycarbonate
- Processor: Quad-Core ARM Cortex A7
- Memory: 256 MB DDR3
- Networking Interface: 10/100/1000 Mbps RJ45 Ethernet
- RF Connections: Internal
- Max. Power Consumption: 18WPower
- Method: Passive PoE (Pairs 4, 5+; 7, 8-)
- Power Supply: 48VDC, 0.65A Gigabit PoE Adapter
- Supported Voltage Range: 48VDC ± 10%
- ESD/EMP Protection: Air/Contact: ± 24kV
- Operating Temperature: -40 to 60° C (-40 to 140° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: FCC, IC, CE
- Power: - Flashing White: Bootup in Progress - White: Not Connected to Ubiquiti® Network Management System (UISP™ - Blue: Conneced to UISP
- Ethernet: Flashing Blue: Ethernet Trafic Detected
- GPS: Blue: Receiving at Least (4) GPS Satellite Signals
- 60G: Blue: Active Connection
- Encryption: WPA2-PSK (AES)
- Services: UISP, Ping Watchdog, NTP Client, System Log
- Utilities: Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test
- Network: Bridge Mode
- Management interface: Bluetooth management for easy setup over UISP™ App WEB UI
- Minimum Software Requirements: Modern Web Browser or Android/iOS Smartphone
- Technology: Wave
- Operating Frequency: 57 to 71 Ghz
- Max. Conducted TX Power: 21 dBm
- GPS: Yes
- Channel Bandwidth: 2160, 1080 Mhz
- Antenna Gain: 43 dBi
Overview
The Ubiquiti airFiber AF60-LR is a 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.
The AF60-LR is designed for high-throughput connectivity over an extended range. The integrated high-gain dish antenna provides high speed, long-range Point-to-Point (PtP) links. New Wave Technology enables incredible long-range performance within the 60GHz spectrum. The airFiber 60 LR also includes a built-in Bluetooth management radio for easy setup.
Ubiquiti airFiber AF60-LR Technical Specification
Part number: AF60-LR · Brand: Ubiquiti
