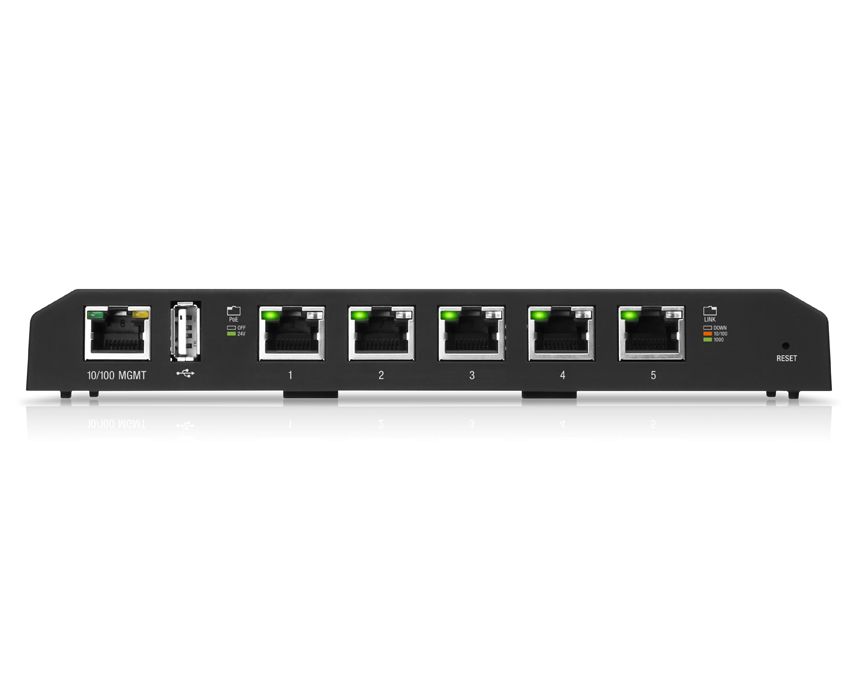

Ubiquiti EdgeSwitch 5 XP - 5-Port Gigabit PoE Switch

• 5 Gigabit PoE Ports
• 24V Configurable Passive PoE
• EdgeSwitch XP Configuration Interface
• Wall-Mountable
• Port monitoring
• System connection and management services
• Virtual Local Area Network (VLAN) configuration
• Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
• Jumbo frame support
• Ping Watchdog
• Configurable alerts

• Dimensions: 197 x 87.5 x 27.3 mm
• Weight: 250g
• Power Input: 24VDC, 2.5A Power Adapter (Included)
• Max. Power Consumption: 60 W
• PoE Out Voltage Range: 22-24VDC
• Max. PoE Wattage Per Data Port: 11.5 W
• ESD Rating: 24 kV Air / 24 kV Contact
• PoE Method: Passive
• Button: Reset
• USB Port: 2.0 Type A (Reserved for Future Use)
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• Certifications: CE, FCC, IC
• Wall-Mount: Yes
• Operating Temperature: -25 to 55°C (-13 to 131° F)
• Operating Humidity: 90% Non-Condensing
• Management Port: N/A
• Data Ports: Off/24V
• Management Port: Power /Link/Activity
• Data Ports: PoE, Speed/Link/Activity
• Management Port: 1 x 10/100 Ethernet Port
• Data Ports: 5 x 10/100/1000 Ethernet Ports

Overview

The Ubiquiti EdgeSwitch 5 XP - 5-Port Gigabit PoE Switch (ES-5XP) is a cost‑effective, 5-port Gigabit switch with 24V PoE support Ubiquiti EdgeSwitch ES-5XP Key Features

The EdgeSwitch 5 XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to-use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.

Clean Industrial Design The EdgeSwitch 5 XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed). Convenient PoE Support The EdgeSwitch 5 XP supports 24V passive PoE to power multiple devices on your network. Carrier-Class Reliability The EdgeSwitch 5 XP delivers uptime performance equal to leading carrier or enterprise technology solutions. Industrial-Strength Construction The EdgeSwitch 5 XP is purpose-built with robust mechanicals for industrial application use. Intuitive UI Industrial-Strength Construction Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

Part number: ES-5XP · Brand: Ubiquiti
