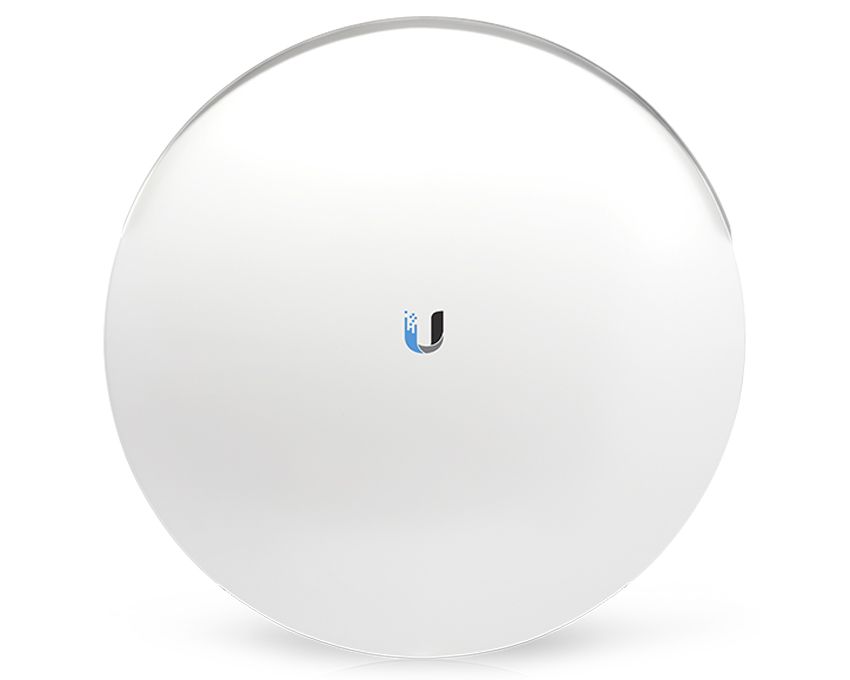

Ubiquiti RocketDish 5GHz 31bdBi airMAX ac PtP Bridge Dish Antenna

• airMAX Carrier Class 2x2 PtP Bridge Dish Antenna
• Frequency range 5.1-5.8 GHz
• Gain 31 dBi
• High RF Performance
• Integrated mount

• Dimensions: 748 x 748 x 349 mm (29.45 x 29.45 x 13.74 in)
• Weight: 7.6 kg (16.76 lb) -Mount Included
• Frequency Range: 5.1 - 5.8 GHz
• Gain: 31 dBi
• Max. VSWR: 1.4:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 1,028 N @ 200 km/h (231 lbf @ 125 mph)
• Polarisation: Dual-Linear
• Cross-pol Isolation: 35 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

Overview

The Ubiquiti RocketDish (RD-5G31-AC) is a Carrier Class, 2x2 Point to Point Bridge Dish Antenna that seamlessly integrates with Rocket M radios (sold separately. See Available Options above). Ubiquiti RocketDish (RD-5G31-AC) Key Features

The Ubiquiti RocketDish (RD-5G31-AC) weighs 7.6 kg, inclusive of the mount, and operates in the 5.1 - 5.8 GHz frequency range. With a powerful 31 dBi gain and dual-linear polarisation, this antenna offers robust performance. It boasts a max VSWR of 1.4:1, wind survivability of 200 km/h, and can withstand wind loading up to 1,028 N @ 200 km/h. Complying with ETSI Specification EN 302 326 DN2, it comes with a universal pole mount, RocketM Bracket, and weatherproof RF jumpers for easy installation in diverse setups.

Powerful Beam Directivity The RocketDish (RD-5G31-AC) features high isolation and improved F/B ratio for better Signal-to-Noise Ratio (SNR). This allows the use of higher-order modulation and the maximum data rate. Reduced Interference, Higher Gain The improved F/B ratio and lower sidelobes significantly reduce interference, so the innovative RocketDish (RD-5G31-AC) provides superior gain and beam performance for high-capacity, multipoint networks. Plug and Play Installation The Ubiquiti RocketDish (RD-5G31-AC) requires no special tools, you simply snap it securely into place with the universal Rocket mount built into the antennas. Industrial-Strength Construction Ubiquiti's RocketDish (RD-5G31-AC) is designed with robust mechanical design for outdoor application use. Example Deployment

Part number: RD-5G31-AC · Brand: Ubiquiti
