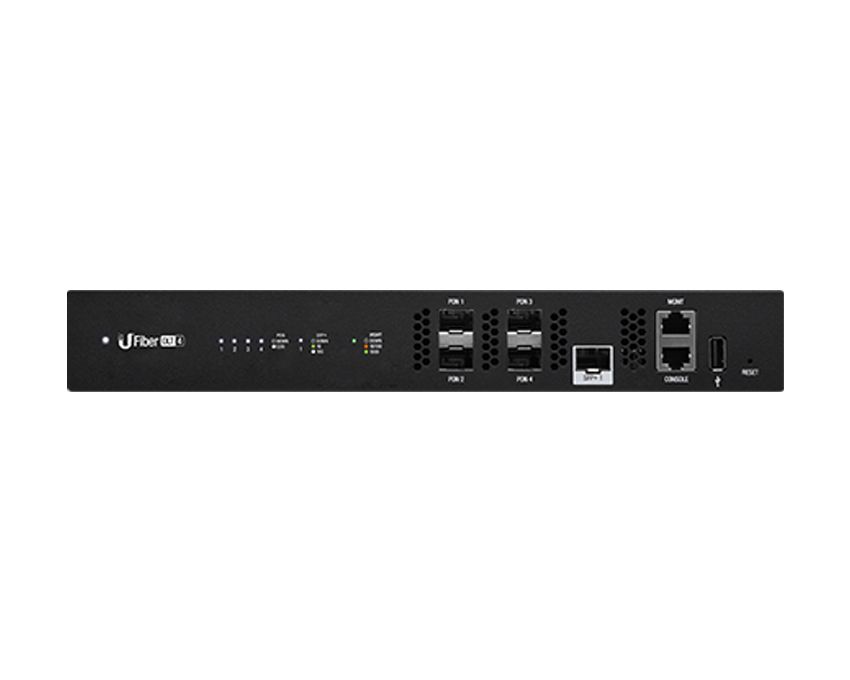

Ubiquiti UFiber 4 OLT GPON Optical Line Terminal

• 4-Port GPON Optical Line Terminal
• 4 Gigabit Passive Optical Network Ports
• Supports up to 512 Clients (128 per PON Port)
• Up to 2.488 Gbps TX and 1.244 Gbps RX
• One 1G/10G SFP+ Ethernet Ports
• Flexible Layer 2/3 Management Features
• Console serial port for management

• Dimensions: 299.80 x 258.95 x 42.55 mm (11.80 x 10.19 x 1.68")
• Weight: 1.93 kg (4.25 lb)
• Weight (with Mount Brackets): 2.13 kg (4.70 lb)
• Networking Interfaces: - (4) GPON OLT SFP - (1) 1G/10G SFP+
• Concurrent Clients: 512 Registered ONUs/ONTs (128 per GPON Port)
• Management Interfaces: - (1) Ethernet for Out-of-Band Management - (1) RJ45 Serial Console Port - (1) Uplink for In-Band Management
• GPON Speeds: - 2.488 Gbps Downstream - 1.244 Gbps Upstream
• Operating Wavelengths: - 1490 nm TX - 1310 nm RX
• Normal Optical Power Range: - TX (Class B+): 1.5 to 5 dBm - RX: -28 to -8 dBm
• Max. Fiber Distance: 20 km*
• Power Method: 100-240VAC/50-60 Hz, Universal Input 24VDC
• Power Supply: AC/DC Internal 56W DC
• Max. Power Consumption: 35W (Excluding SFP Modules)
• Operating Mode: OLT GPON Core and Layer 2 Ethernet Switch
• Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification
• Processor Specs: MIPS 1004kc, 880 MHz Dual Core
• Memory Information: 512 MB DDR3, 512 MB NAND
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

Overview

The Ubiquiti UFiber 4 OLT offers four GPON ports and supports up to 512 concurrent clients at up to 2.488 Gbps TX and 1.244 Gbps RX. The UFiber 4 OLT also boasts flexible layer 2/3 management features and one 1G/10G SFP + Ethernet port.

Client and Uplink Connectivity The OLT features four PON ports to connect up to 512 ONUs, and SFP+ port deliver up to 10 Gbps of uplink connectivity. Rackmount Design The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack. Centralised Management Easily configure the UFiber 4 OLT and manage multiple sites using the comprehensive UNMS (Ubiquiti Network Management System) software.

Ubiquiti UFiber 4 OLT - Technical Specifications *Distance varies according to your optical network design.

Part number: UF-OLT-4 · Brand: Ubiquiti
