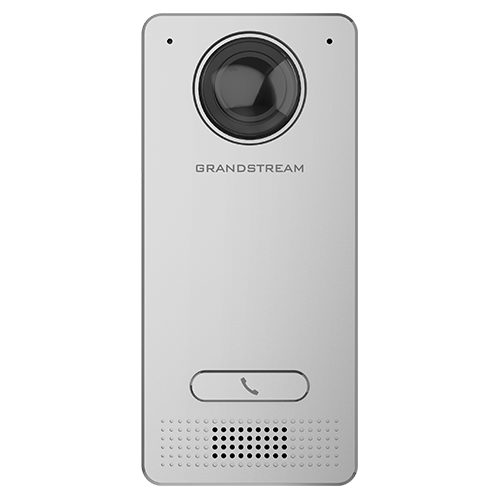

Grandstream GDS3712 Door Entry System

The Grandstream GDS3712 is a video door entry panel with an unusual party trick: instead of a conventional narrow lens it uses a hemispheric camera giving a 180-degree wall-to-wall view. That means it sees the entire approach to the door rather than a face-shaped crop, so it doubles as a genuinely useful surveillance camera as well as an intercom.

Video is 1080p at up to 30fps with 120 dB wide dynamic range, and three simultaneous streams let you send SIP video to phones and indoor stations while an NVR records at full resolution over ONVIF. On the entry side there are two relays for the lock and an alarm or light circuit, two inputs for an exit button and door contact, and motion detection with event-triggered snapshots by email or FTP. The metal body is IP66 and IK10 rated, and the whole thing runs from a single 802.3af PoE cable.

Ideal for

• Main entrances where you want door entry and CCTV coverage from one device
• Doorways with a wide approach that a standard lens would miss
• Residential blocks, HMOs and student accommodation
• Offices and surgeries needing a visual record of who was let in
• Narrow door frames and mullions — the panel is only 80 mm wide
• Sites already running an ONVIF NVR that should record the door

Key features

• Hemispheric 180-degree camera — wall-to-wall coverage of the doorway, not just a narrow view of the caller's face
• 1080p at 30fps — 1/2.7-inch 2MP sensor with up to 120 dB wide dynamic range for backlit doorways
• Three simultaneous streams — 1920x1080, 1280x720 and 320x240, so live SIP video and NVR recording can run at once
• Doubles as a surveillance camera — ONVIF compliant and GSURF Pro compatible for recording to an NVR
• SIP video calling — ring video phones, indoor stations and smartphones simultaneously
• Two relay outputs — 125VAC/0.5A or 30VDC/2A for an electric lock plus an alarm or light circuit
• Two alarm inputs — optocoupler inputs for an exit button and door contact
• Motion detection with snapshots — event-triggered images sent by email or FTP, with up to 4 privacy masks
• IP66 and IK10 rated — weatherproof and vandal-resistant, specified -30°C to 60°C
• Single-cable install — IEEE 802.3af Class 3 PoE for power and network on one Cat5e run

Technical specification

Camera and video

• Sensor: 1/2.7-inch, 2 megapixel, 1920H x 1080V
• Lens: 1/2-inch, F2.5, field of view 180° horizontal x 150° vertical
• Maximum resolution: 1920 x 1080 at up to 30fps
• Wide dynamic range: up to 120 dB
• Compression: H.264 High/Main/Baseline Profile, Motion JPEG
• Bit rate: 128 Kbps to 4 Mbps, multi-rate for preview and recording
• Three simultaneous streams: 1920x1080, 1280x720, 320x240
• Motion detection with up to 4 privacy masks
• Event-triggered snapshots sent via email and/or FTP

Audio

• Codecs: G.711µ/a-law, G.722
• DTMF: in-band, RFC2833 and SIP INFO
• Built-in microphone with AEC, pickup up to 1.5 metres
• Built-in HD loudspeaker, 2W, effective up to 3 metres

Network and protocols

• 10/100 Mbps auto-sensing Ethernet port
• TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
• TR-069 local upload and mass provisioning
• ONVIF compliant, GSURF Pro compatible, HTTP API integration

Inputs, outputs and power

• 1 x call button with blue LED backlight
• 2 x relay outputs: 125VAC/0.5A or 30VDC/2A, normally open or normally closed, for electric lock or light switch
• 2 x optocoupler alarm inputs, Vin under 15V, for door sensor or exit button
• PoE: IEEE 802.3af Class 3
• Alternative power: 12VDC / 1A (AC adapter not supplied)

Physical and environmental

• On-wall dimensions: 173 x 80 x 36 mm
• In-wall dimensions: 217 x 120 x 11.6 mm
• Weight: 0.625 kg
• Ingress protection: IP66 (EN60529)
• Impact resistance: IK10 (IEC62262)
• Operating temperature: -30°C to 60°C
• Storage temperature: -35°C to 60°C
• Humidity: 10% to 90% non-condensing

Security and compliance

• User and administrator level RTSP access
• MD5 and MD5-sess based authentication
• 256-bit AES encrypted configuration file
• TLS, SRTP, HTTPS and 802.1Q
• Compliance: CE, UKCA, FCC, IC, RCM

An Ethernet cable and 12V power adapter are not supplied — the unit is normally powered over PoE.
