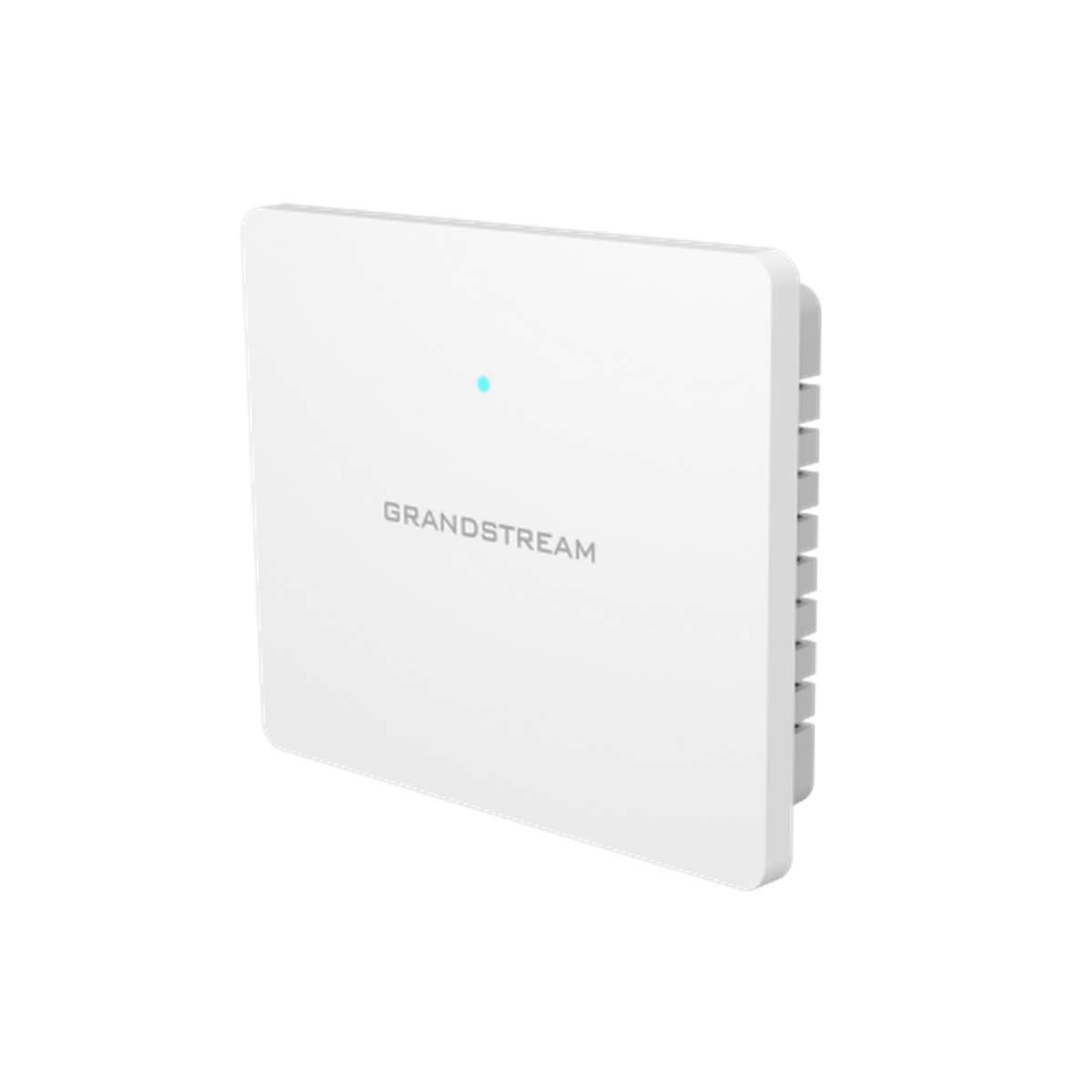

Grandstream GWN7602 Wireless Access Point

The Grandstream GWN7602 is a 2×2 802.11ac Wi-Fi access point with an Ethernet switch built into it. One cable arrives at the room; out of it come Wi-Fi, three wired sockets and PoE for a device beside it.

That is the entire argument for this product, and in a hotel room or a small office it is a strong one. The uplink is a Gigabit port taking PoE or PoE+ and passing power onward (PSE), so a desk phone or an IPTV box can be fed from the same plate without another adapter. It covers around 100 metres and handles up to 80 concurrent clients — sized for a room, not a floor.

Read the port speeds carefully. The three downlink ports are 100 Mb, not Gigabit. For a phone, a television or a door controller that is plenty. For a desktop computer moving large files it is not, and if that is the plan the GWN7603 or GWN7604 — with four Gigabit ports — is the model you actually want.

Key features

• Integrated Ethernet switch — three wired sockets in the room, no separate switch
• Gigabit uplink with PoE/PoE+ and PSE — takes power in and passes power onward
• 802.11ac 2×2 Wi-Fi — dual band, with beamforming
• Up to 80 concurrent clients — well beyond what one room presents
• Up to 100 m coverage — an open-air figure; walls reduce it
• Compact body — wall or desk, no ceiling install
• GWN.Cloud and GWN Manager — free cloud and on-premise management

Works with

• Grandstream GWN7603 — four Gigabit ports and two PoE outputs
• Grandstream GWN7604 — the Wi-Fi 6 version with four Gigabit ports
• Grandstream GWN7661 — in-wall Wi-Fi 6 where a faceplate suits better
• Grandstream GHP620 — a hotel phone to run from its powered port
• GS-POE30W-MG injector — PoE+ where there is no PoE switch
• All wireless access points

Frequently asked questions

Are the wired ports Gigabit?

No — the three downlink ports are 100 Mb. Only the uplink is Gigabit. That is fine for phones, televisions and small devices; for a desktop computer moving large files, choose the GWN7603 or GWN7604.

Can it power a phone?

Yes. The uplink supports PSE, so power arriving over PoE can be passed on to a device in the room. What it can pass depends on what feeds it, so use a PoE+ source if you want headroom.

How much area does one cover?

Around 100 metres in open air, which in practice means one room or a small suite. It is designed as a one-per-room unit, not a floor access point.

Is 80 clients enough?

For a room, comfortably. For an open-plan floor or a public space, use a ceiling-mounted access point instead.

Does it replace a switch in the room?

For a few small devices, yes. It is not a substitute for a proper switch in a comms cabinet, and the 100 Mb ports set the limit on what it suits.

Can it be managed with the rest of our GWN kit?

Yes. GWN.Cloud and GWN Manager handle it alongside every other GWN access point and switch on the site, both free.

Working out how many drops a floor of rooms really needs? Call 0333 242 1314 or email sales@clisecure.com and we will go through it.
