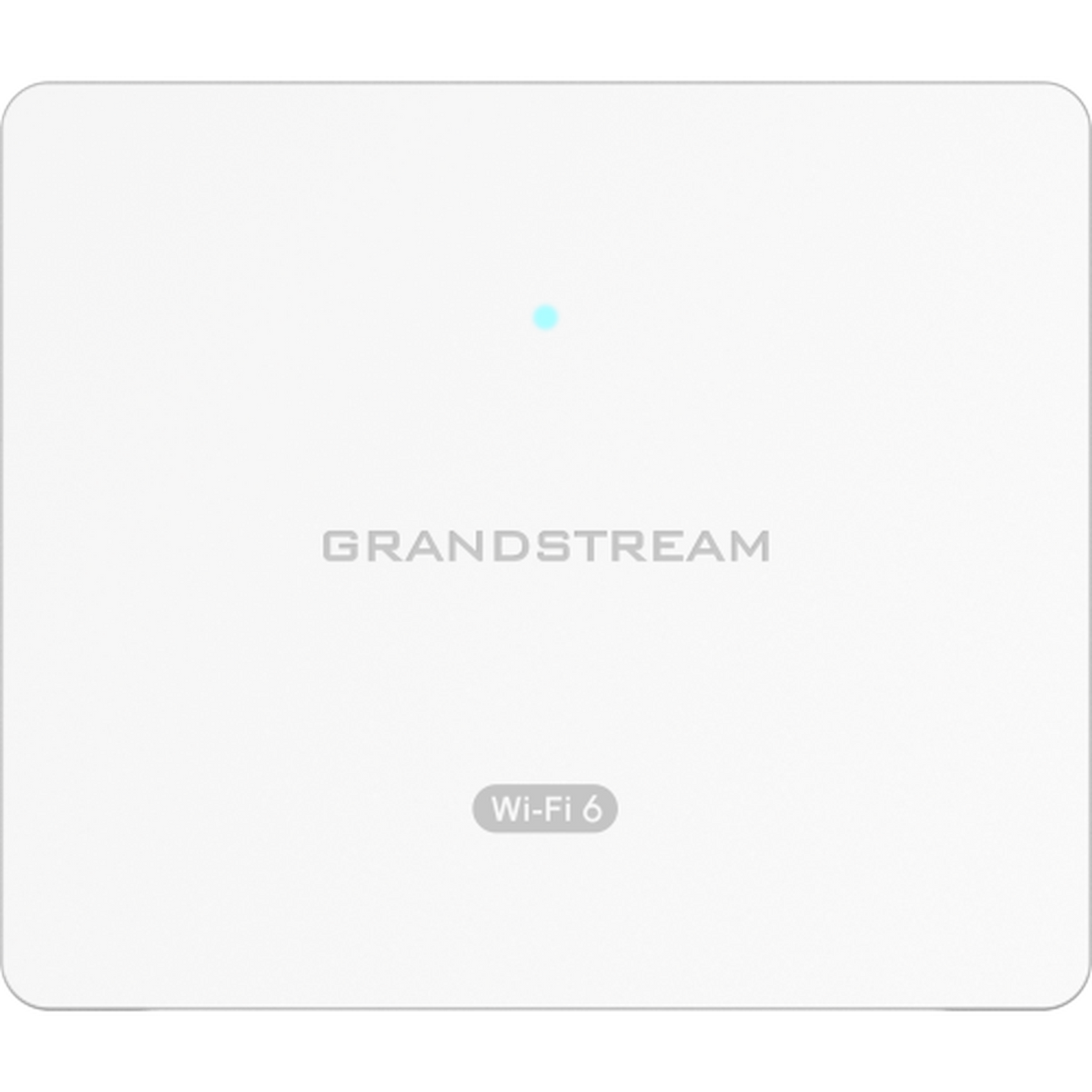

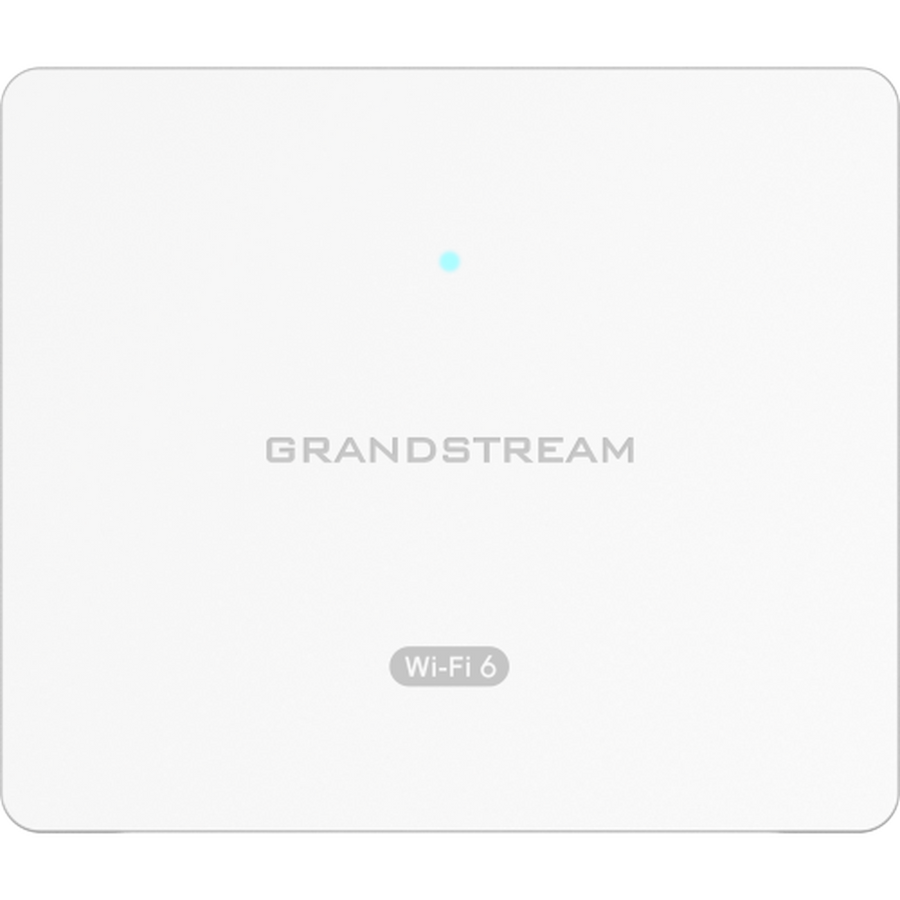

Grandstream GWN7604 Indoor AX3000 Wi-Fi 6 Access Point

The Grandstream GWN7604 is an AX3000 Wi-Fi 6 access point with a four-port Gigabit switch built into it — and two of those ports supply PoE to something else. That combination is what makes it interesting: one cable arrives at the room, and the room gets Wi-Fi, wired sockets and power for a camera or a desk phone.

The radio is the same class as the rest of the mid-range GWN line: 2×2:2 MU-MIMO on 2.4 GHz, 3×3:2 on 5 GHz, up to 3 Gbps aggregate, up to 256 concurrent clients and around 100 metres of coverage. Management is through GDMS Networking in the cloud or GWN Manager on-premise, alongside the rest of a GWN estate.

Watch the power chain. The uplink port takes PoE or PoE+ to run the access point itself; what the two PSE ports can then pass on depends on what came in. If you intend to power a camera and a phone from it, feed the uplink from a PoE+ port, not a basic 802.3af one.

Key features

• Integrated 4-port Gigabit switch — wired sockets in the room without a separate switch
• Two PSE ports supplying PoE — power a camera, a phone or a second AP locally
• PoE/PoE+ uplink — one cable powers the unit and carries its traffic
• 802.11ax Wi-Fi 6, AX3000 — up to 3 Gbps aggregate across both bands
• 2×2:2 MU-MIMO on 2.4 GHz, 3×3:2 on 5 GHz — mid-range enterprise radio
• Up to 256 concurrent clients — well beyond what one room will ask of it
• Up to 100 m coverage — an open-air figure; walls reduce it
• Mesh, captive portal and advanced QoS — guest networks and voice priority built in
• Mains adapter or PoE — powered either way, whichever the site allows
• GDMS Networking and GWN Manager — cloud or on-premise management

Works with

• Grandstream GWN7660E — the ceiling AP with more reach and no built-in switch
• Grandstream GWN7661 — in-wall AP for rooms with a faceplate rather than a ceiling
• GWN7801P PoE switch — the PoE+ source to feed the uplink
• GS-POE30W-MG injector — single-port PoE where there is no PoE switch
• Grandstream GWN7670 — the Wi-Fi 7 step up
• All wireless access points

Frequently asked questions

Can it really power other devices?

Yes — two of the four Gigabit ports are PSE ports that supply PoE onward. What they can deliver depends on what feeds the uplink, so use a PoE+ source if you want headroom.

Does it replace a switch in the room?

For a handful of devices, yes. Four Gigabit ports covers a TV, a phone, a printer and the uplink. It is not a substitute for a proper switch in a comms cabinet.

How is it different from the GWN7660E?

The switch and the reach. The 7604 adds four Gigabit ports with PoE out but quotes around 100 metres of coverage; the 7660E has one port and quotes 175 metres. Choose by whether you need wired sockets or wider coverage.

Can I power it from a mains adapter instead?

Yes, it accepts either a power adapter or PoE/PoE+ from the switch. Bear in mind that a mains-powered AP loses the resilience of a UPS-backed comms cabinet.

Is 100 metres enough?

For a room or a small suite, comfortably — and that is the job this unit is designed for. For an open floor, use a ceiling AP with more range and place it centrally.

Can it be managed with the rest of our GWN kit?

Yes. GDMS Networking in the cloud or GWN Manager on-premise handle it alongside every other GWN access point and switch on the site.

Working out how many drops a floor of rooms really needs? Call 0333 242 1314 or email sales@clisecure.com and we will go through it.
