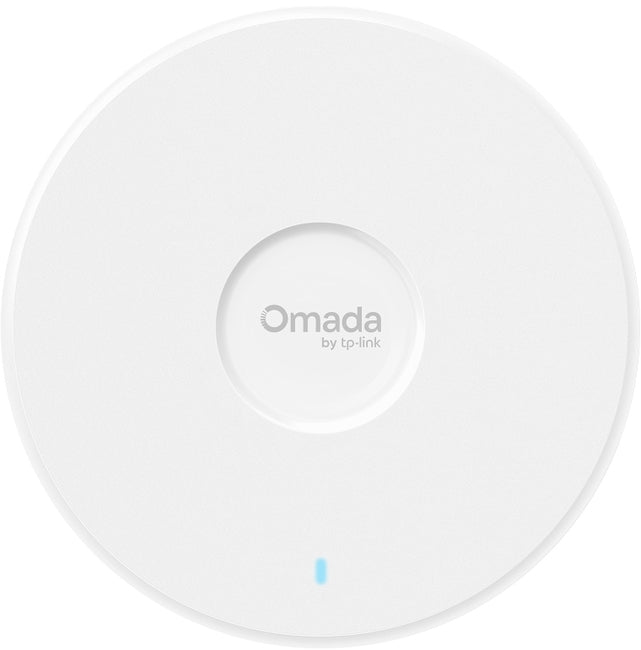

TP-Link EAP787 Tri-Band Ceiling Mounted WiFi 7 Access Point

The EAP787 is TP-Link's BE12000 tri-band Wi-Fi 7 ceiling access point for genuinely demanding, high-density venues — auditoria, conference floors, busy offices. It delivers 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz and 688 Mbps on 2.4 GHz across eight streams, supports 510+ concurrent clients and covers up to 190 m², while a dedicated RF-scanning radio monitors the spectrum in real time and steers around interference.

A single multi-gigabit port negotiates 10G, 5G, 2.5G or 1G, so the airtime Wi-Fi 7 creates actually reaches the LAN — pair it with a multi-gigabit PoE++ switch such as the Omada SG3210XHP-M2 for power and uplink over one cable. In larger estates, manage it alongside the EAP772 through an Omada OC300 controller.

Key features

• Tri-band 8-stream Wi-Fi 7 — 5765 Mbps (6 GHz) + 5765 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
• Dedicated RF scanning gives real-time spectrum monitoring and dynamic interference avoidance.
• 1 × multi-gigabit port supporting 10 GbE, 5 GbE, 2.5 GbE and 1 GbE uplinks.
• 320 MHz bandwidth, MLO, Multi-RUs and 4K-QAM for low latency and high throughput.
• 510+ concurrent clients and coverage up to 190 m² (2050 ft²).
• Flexible power — 802.3bt PoE or DC supply for easy installation.
• Omada SDN — one-click setup, centralised management, mesh and seamless roaming.

Works with

• TP-Link Omada SG3210XHP-M2 — multi-gig PoE++ switch to power and uplink the EAP787
• TP-Link Omada EAP772 — BE9300 Wi-Fi 7 ceiling AP for standard areas
• TP-Link Omada OC300 controller — manages large Omada estates
• All wireless access points
• All networking

Frequently asked questions

How should I power it?

Over 802.3bt PoE from a PoE++ switch port, or from a DC supply. A PoE++ switch such as the SG3210XHP-M2 keeps the install to a single cable for power and multi-gigabit data.

Do I need a multi-gigabit switch port?

To get the full benefit, yes — the port negotiates 10G, 5G, 2.5G or 1G. It will run happily on a Gigabit port, but the tri-band radios can carry far more than 1 Gbps, so a 2.5G or 10G PoE port is the right partner.

Does it need an Omada controller?

No — it works standalone. Adopting it into Omada SDN via a hardware controller or cloud adds one-click setup, centralised management, mesh and seamless roaming across every AP on site.

What makes it suited to high-density venues?

Eight streams across three bands, 510+ concurrent client capacity, and a dedicated RF-scanning radio that continuously monitors the spectrum and steers around interference.

Specifying Wi-Fi 7 for a busy venue? Call 0333 242 1314 or email sales@clisecure.com and we will size the switches, access points and PoE budget before you order.
