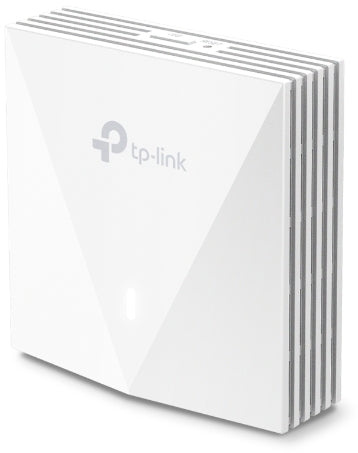

TP-Link Omada EAP650 Wall Access Point

The EAP650-Wall is an AX3000 Wi-Fi 6 wall-plate access point: 574 Mbps on 2.4 GHz plus 2402 Mbps on 5 GHz for full in-room coverage in hotels, apartments and serviced offices. It mounts flush to the wall, powers over the Ethernet feed, and gives each room its own strong signal instead of borrowing a weak one from the corridor.

A downlink Gigabit port connects the room's wired device — a TV, desk phone or games console — and Omada SDN integration means a whole building of them is configured and monitored centrally, ideally with an OC200 controller and a PoE switch such as the Omada SG2016P in the riser. If each room needs more wired ports, look at the four-port EAP655-Wall.

Key features

• AX3000 Wi-Fi 6 — 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz), up to 2976 Mbps.
• Full in-room coverage for a seamless per-room network.
• Downlink Gigabit port wires in the room's fixed device.
• Omada SDN platform for centralised management across the building.
• PoE powered — one cable delivers data and power.
• Easy-to-install wall-plate design with mounting kits included.

Works with

• TP-Link Omada SG2016P — PoE switch for a floor of wall APs
• TP-Link EAP655-Wall — same speed with four Gigabit ports
• TP-Link Omada OC200 controller — centralised management
• All wireless access points
• All networking

Frequently asked questions

How is it powered?

Over the Ethernet cable — it supports PoE, so a PoE switch or injector at the head end powers the whole wall plate with no socket in the room needed.

EAP650-Wall or EAP655-Wall?

Both are AX3000 wall plates. The EAP650-Wall has one downlink Gigabit port; the EAP655-Wall has four, including PoE pass-through — pick by how many wired devices live in the room.

Does it need a controller?

No, it runs standalone — but hotel-style deployments almost always add an Omada controller so every room's AP is configured and monitored from one dashboard.
