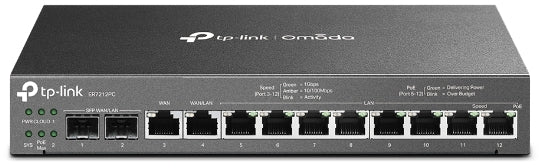

TP-Link Omada ER7212PC Integrated Router

The Omada ER7212PC rolls a VPN gateway and a PoE switch into one fanless desktop unit, which makes it a tidy answer for small offices, shops and branch sites that want a single box at the head of the network. A dual-core 1.2 GHz CPU and 1 GB of DDR3 keep routing, VPN and captive-portal duties running smoothly.

On the WAN side it offers two Gigabit SFP WAN/LAN ports, one Gigabit RJ45 WAN port and one Gigabit RJ45 WAN/LAN port, with load balancing across links; on the LAN side, eight Gigabit ports supply 802.3af/at PoE from a 110 W budget. That is enough to power a ceiling of Omada access points such as the EAP610 or EAP650 directly from the router, with no separate PoE switch needed.

If you have already got PoE switching in place and only need routing, look at the Omada ER7206; for 10G head-end routing, step up to the ER8411.

Key features

• Router and PoE switch in one — eight Gigabit LAN ports with 802.3af/at PoE and a 110 W budget cut the box count at small sites.
• Flexible WAN options — 2 × Gigabit SFP WAN/LAN, 1 × Gigabit RJ45 WAN and 1 × Gigabit RJ45 WAN/LAN with load balancing across connections.
• Broad VPN support — OpenVPN, IPSec, PPTP, L2TP and L2TP over IPSec for site-to-site links and remote workers.
• Captive portal for straightforward guest Wi-Fi authentication in shops, cafés and reception areas.
• Traffic control built in — bandwidth control and access control keep critical applications responsive.
• 4 kV lightning protection guards the investment against surges.
• Fanless, compact enclosure for silent desktop or wall-mounted installation.

Works with

• TP-Link Omada EAP610 — Wi-Fi 6 AP powered straight from this router's PoE ports
• TP-Link Omada OC200 — hardware controller for central Omada management
• TP-Link Omada ER8411 — 10G VPN router for larger head-ends
• All routers
• All networking

Frequently asked questions

Do I still need a separate PoE switch?

For many small sites, no. The eight Gigabit LAN ports supply 802.3af/at PoE from a 110 W budget, so access points, IP cameras and IP phones can be powered directly. Add a PoE switch only when you outgrow the ports or the budget.

Which VPN types does it support?

OpenVPN, IPSec, PPTP, L2TP and L2TP over IPSec, so you can match whatever the far end or your remote-access clients require.

Is it rack-mounted or desktop?

It is a compact, fanless unit designed for desktop use or wall mounting — well suited to comms cupboards and back offices where silence matters.

Can it handle guest Wi-Fi log-ins?

Yes. The built-in captive portal provides a convenient method for authenticating guests before they reach the network.
