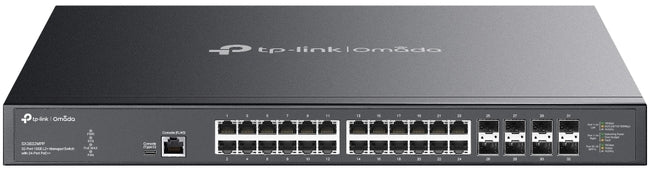

TP-Link Omada SX3823MPP 32-Port L2+ Managed Switch

The Omada SX3832MPP is the switch for a wireless estate that has outgrown gigabit: twenty-four 1/2.5/5/10 Gbps RJ45 ports, every one of them PoE++ with up to 90 W output, backed by a 770 W total budget and eight 1/10 Gbps SFP+ slots for the uplinks. It powers a whole floor of Wi-Fi 7 access points at full speed — one cable per AP for both data and power.

Deployed with high-density Omada APs such as the EAP787 or EAP773, it slots into an Omada SDN fabric under an OC300 controller, or runs standalone via web, CLI (RJ45 and USB-C console ports), SNMP and RMON. The chassis is durable metal and rack-mountable.

Key features

• 24 × 1/2.5/5/10 Gbps RJ45 PoE++ ports — multi-gig speed and power on every port.
• 770 W total PoE budget with up to 90 W PoE output per port.
• 8 × 1/10 Gbps SFP+ slots for fibre or DAC uplinks and aggregation.
• Omada cloud management via the web or the Omada app, plus standalone web, CLI, SNMP and RMON.
• L2+ feature set — static routing, VLAN, ACL, QoS, IGMP Snooping, OAM and DDM.
• ERPS ring protection for rapid recovery in a ring topology.
• RJ45 and USB-C console ports in a durable metal, rack-mountable chassis.

Works with

• TP-Link EAP787 — tri-band Wi-Fi 7 AP that earns its multi-gig PoE++ port
• TP-Link SX3206HPP — the compact 4-port 10G PoE++ sibling
• TP-Link Omada OC300 controller for centralised management
• All network switches
• All networking

Frequently asked questions

What is the PoE budget?

770 W in total across the 24 PoE++ ports, with up to 90 W available on any single port — enough for the most demanding Wi-Fi 7 access points, PTZ cameras and other high-draw devices.

Why multi-gig PoE ports?

Wi-Fi 7 access points can move well past 1 Gbps of real traffic. Ports that negotiate 1, 2.5, 5 or 10 Gbps mean each AP gets an uplink to match its radio — over the same cable that powers it.

Do I need an Omada controller?

No — standalone management via web, CLI, SNMP and RMON is built in. An Omada controller unifies this switch with your APs and gateway in one dashboard, which pays off at this scale.

How do I connect it to the core?

Use the eight SFP+ slots — fibre transceivers or DAC cables at 1 or 10 Gbps — to uplink or aggregate towards your core and router.

Rolling out high-density Wi-Fi? Call 0333 242 1314 or email sales@clisecure.com and we will size the switches, access points and PoE budget before you order.
