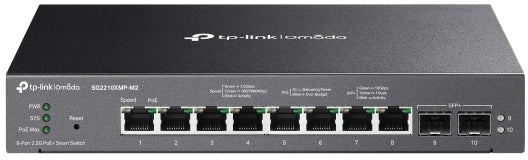

TP-Link SG2210XMP-M2 8-Port 10G SFP+ Smart Switch

The TP-Link Omada SG2210XMP-M2 breaks the Gigabit ceiling for PoE: eight 2.5GBASE-T ports, all 802.3at/af PoE+, feed modern Wi-Fi 6 and Wi-Fi 7 access points at the multi-gig speeds they can actually use, while two 10G SFP+ slots carry the aggregate traffic upstream without a bottleneck. A 160 W budget supplies up to 30 W per port — every port powered, all at once.

Management follows the Omada pattern: adopt it into Omada SDN for centralised cloud management via the web or app, or run it standalone. Despite the throughput it is fanless — silent enough for an office wall or shelf, with desktop and wall mounting built in.

Pair it with multi-gig APs such as the EAP670 or Wi-Fi 7 EAP772; for L2+ management and even more PoE headroom in a rack, step up to the SG3210XHP-M2.

Key features

• Eight 2.5 Gbps PoE+ ports — multi-gig backhaul for Wi-Fi 6/7 access points.
• Two 10G SFP+ slots — uncongested uplinks to the core or NAS.
• 160 W total PoE budget with up to 30 W per port — no juggling.
• Omada SDN integration — centralised cloud management via web or app.
• Standalone management supported when a controller is unnecessary.
• Static routing for efficient internal traffic.
• Fanless design — quiet operation, desktop or wall mounting.

Works with

• TP-Link EAP670 — Wi-Fi 6 AP that benefits from 2.5G PoE backhaul
• TP-Link EAP772 — Wi-Fi 7 ceiling AP it powers over PoE
• TP-Link Omada OC200 — hardware controller for the Omada estate
• All switches
• All networking

Frequently asked questions

Why 2.5G ports for access points?

Wi-Fi 6/6E/7 APs can move more than 1 Gbps of wireless traffic; a Gigabit cable becomes the bottleneck. The SG2210XMP-M2's 2.5GBASE-T PoE+ ports power the AP and carry its full throughput on the same cable.

Can all eight ports supply PoE at once?

Yes — the 160 W budget allows up to 30 W on each of the eight ports, so a full complement of APs is no problem.

Do I need an Omada controller?

No — standalone management is supported. A controller adds cloud access, zero-touch multi-site management and one dashboard for the whole Omada estate.

Is it rack-mounted?

No — it is a fanless desktop/wall-mount unit. If you need a rackmount multi-gig PoE switch, look at the SG3210XHP-M2.
