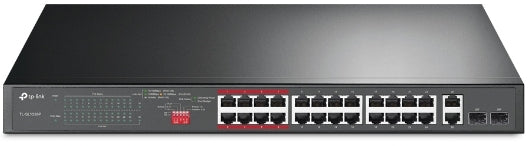

TP-Link SL1226P 24 Port Unmanaged Switch

The SL1226P is a plug-and-play PoE switch built with surveillance in mind: 24 PoE+ 10/100 Mbps ports for cameras and phones, two Gigabit RJ45 ports and two combo Gigabit SFP slots for uplinks, and a generous 250 W total PoE budget with up to 30 W available per port.

Its Extend Mode pushes data and power up to 250 m down a single cable — well beyond the standard 100 m — which is exactly what long camera runs across car parks and warehouses need. Priority Mode reserves quality on ports 1–8 for sensitive feeds, and PoE Auto Recovery reboots any camera or device that stops responding, without a site visit.

Because it is unmanaged, there is nothing to configure: cable it up and it works. For a smaller install, the SL1311MP follows the same recipe with 8 PoE ports.

Key features

• 24 × PoE+ 10/100 Mbps ports plus 2 × Gigabit RJ45 and 2 × combo Gigabit SFP slots.
• 250 W total PoE budget with up to 30 W per PoE port.
• Extend Mode — data and power up to 250 m, ideal for surveillance runs.
• Priority Mode guarantees quality on ports 1–8 for sensitive feeds such as video monitoring.
• Isolation Mode — one-click client traffic separation for security and performance.
• PoE Auto Recovery automatically reboots dropped or unresponsive powered devices.
• Plug and play — no configuration or software required.

Works with

• TP-Link SL1311MP — the 8-port version for smaller sites
• TP-Link SL2428P — similar port mix with Omada smart management
• TP-Link SG1428PE — gigabit PoE alternative
• All network switches
• All networking

Frequently asked questions

Are 10/100 ports enough for CCTV?

Yes — IP cameras stream well within 100 Mbps, and the aggregated traffic leaves over the Gigabit RJ45 or SFP uplinks, so the recorder link is not the bottleneck.

How does the 250 m Extend Mode work?

A hardware switch puts the PoE ports into Extend Mode, trading speed for reach so both data and power travel up to 250 m over one cable — no midspan repeaters needed.

Does it need any configuration?

No. It is unmanaged: plug in the uplink and your powered devices and it runs. Priority, Extend and Isolation modes are simple hardware settings, not software menus.

What happens if a camera locks up?

PoE Auto Recovery detects a dropped or unresponsive powered device and power-cycles that port automatically to bring it back online.
