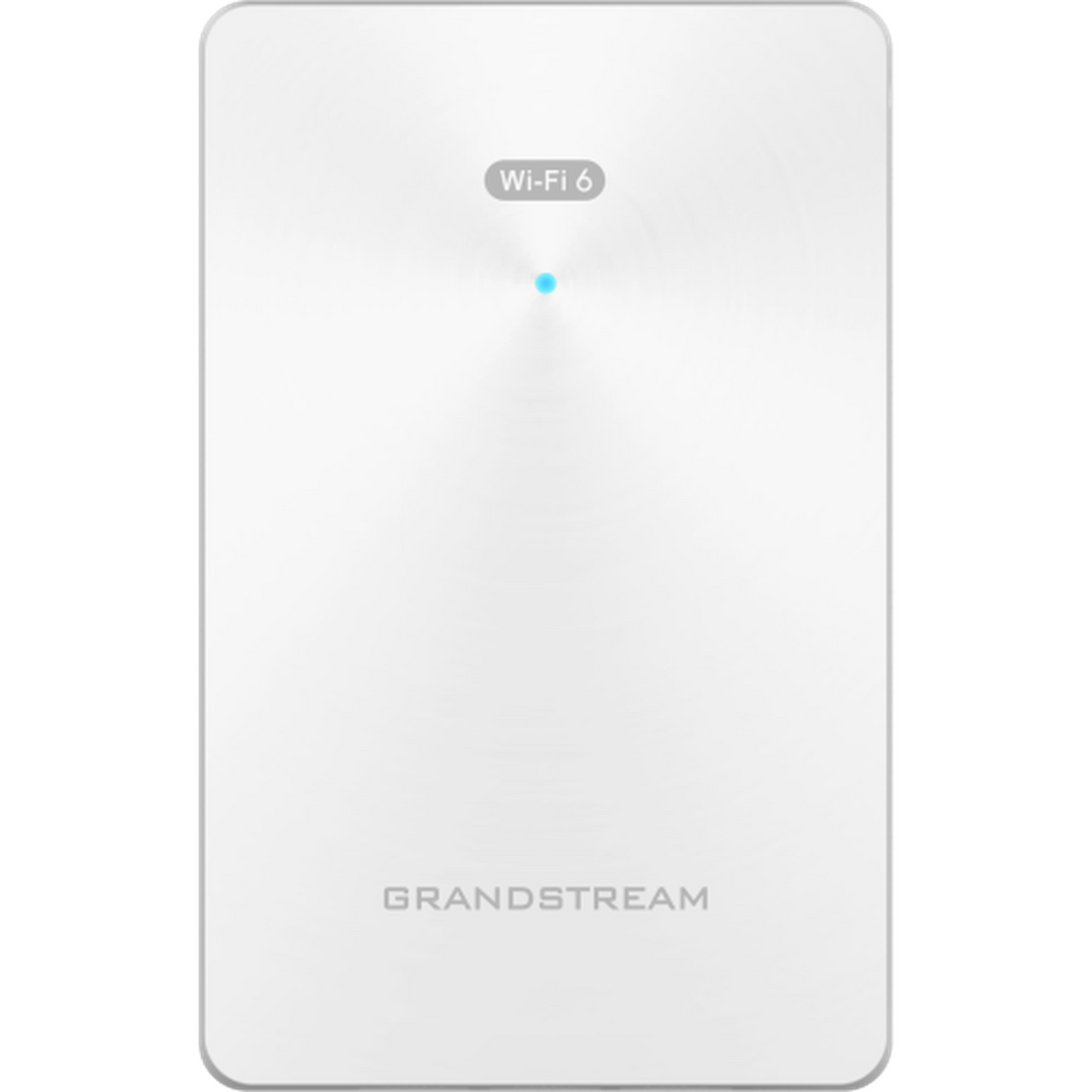

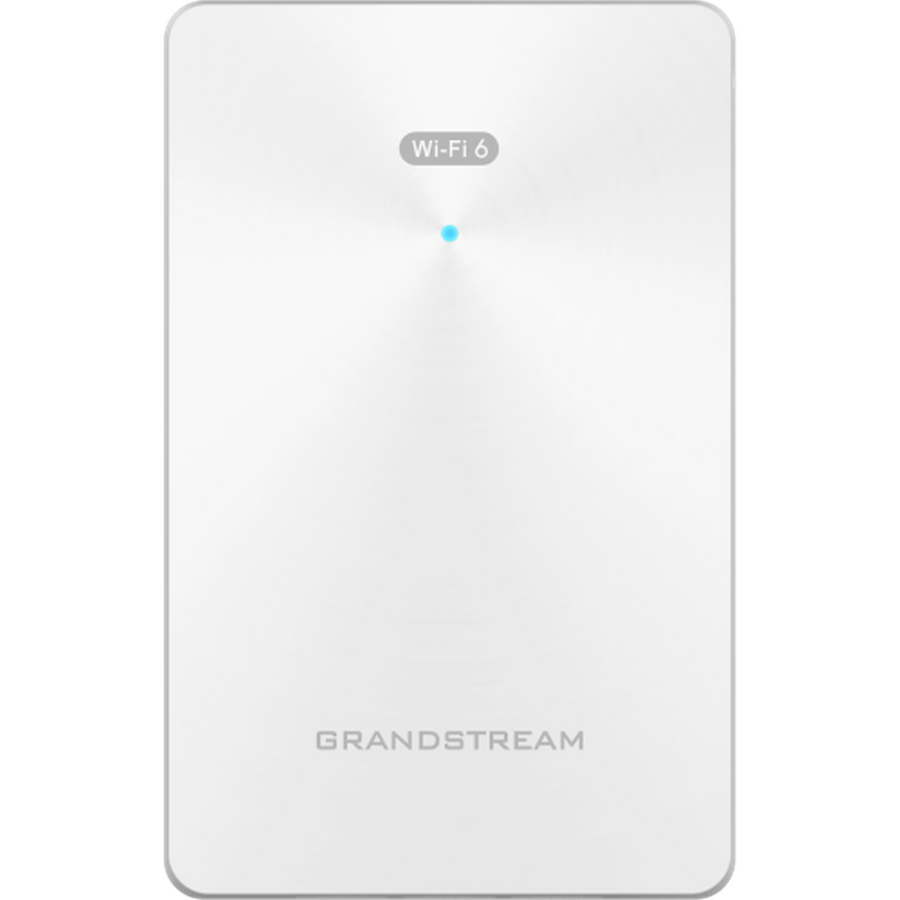

Grandstream GWN7661E Wi-Fi 6 Access Point

The Grandstream GWN7661E is the AX3000 in-wall access point — the higher-specified faceplate unit in the Wi-Fi 6 range. Up to 3 Gbps of wireless throughput, 2×2:2 MU-MIMO on 2.4 GHz and 3×3:2 on 5 GHz, 256 concurrent clients, around 100 metres of coverage, and four Gigabit wireline ports.

Three of those ports face the room for IP phones, computers and televisions; the fourth is the uplink and takes PoE or PoE+. One cable arrives behind the plate and the room gets Wi-Fi and wired sockets, which is the whole reason the in-wall format exists.

The three spatial streams on 5 GHz are what you are paying for. They do not make one laptop faster — most have two streams — but they let the access point serve several devices in the same instant instead of taking turns. In a family hotel room or a shared flat, that is the difference people notice.

Key features

• 802.11ax Wi-Fi 6, AX3000 — up to 3 Gbps aggregate wireless throughput
• 2×2:2 MU-MIMO on 2.4 GHz, 3×3:2 on 5 GHz — more streams where the traffic is
• Up to 256 concurrent clients — far beyond what one room will present
• Up to 100 m coverage — an open-air figure; walls reduce it
• Three Gigabit downlink ports — wired sockets for phones, computers and TVs
• Gigabit uplink port with PoE/PoE+ — one cable in, power and data together
• Embedded controller — run a small GWN estate from the access point itself
• Mesh, captive portal and advanced QoS — guest networks and voice priority built in
• GDMS Networking and GWN Manager — cloud or on-premise management, both free

Works with

• Grandstream GWN7661 — the AX1800 in-wall model where budget leads
• Grandstream GWN7624 — the Wi-Fi 5 in-wall unit with PoE out on two ports
• Grandstream GWN7670WM — the wall-mounted Wi-Fi 7 step up
• GWN7801P PoE switch — the PoE+ source feeding a corridor of these
• Grandstream GHP620 — the hotel phone that plugs into one of its wired ports
• All wireless access points

Frequently asked questions

How is it different from the GWN7661?

Radio class and ports. The GWN7661E is AX3000 with 3×3:2 on 5 GHz and four Gigabit ports; the GWN7661 is AX1800 with 2×2:2. Same format, same install, more capacity.

Will it fit my existing back box?

It is designed to replace a standard in-wall plate, but depth varies. Check behind one before ordering a floor's worth — back box depth, not the specification, is what stalls in-wall installs.

Do its downlink ports supply PoE?

The uplink takes PoE/PoE+ to power the unit. Do not assume the downlink ports pass power onward — if a phone at that socket must be powered locally, confirm it or plan a separate PoE source. The GWN7624 is the model in this range that explicitly supplies PoE on two of its ports.

How much area does one cover?

One room, well. A faceplate access point sits low and radiates outward through furniture, so plan one per room rather than one per corridor.

Does it need a controller?

No. There is one embedded in the access point for small deployments; larger sites use GWN Manager on-premise or GDMS Networking in the cloud, both free.

Will one client see 3 Gbps?

No. That is both radios' theoretical peaks added together, and the wired side is Gigabit anyway. The figure describes total capacity, not one connection.
